FC1CSDFDF24.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FC1CSDFDF24.0

FC1CSDFDF24.0: DescriptionParallel - Fundamental Quartz Crystal, 24MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size694KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FC1CSDFDF24.0 Overview

Parallel - Fundamental Quartz Crystal, 24MHz Nom, SMD, 4 PIN

FC1CSDFDF24.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR, 7 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	25 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Ceramic SMD Crystal

Page 1 of 2

Model:

C1CS

Formerly FX216C Series

RoHS Compliant / Pb Free

http://www.foxonline.com/need_a_sample.htm

Rev.

07/09/2018

• Low Cost

• Fundamental to 54 MHz

• Tape and Reel (3,000 pcs. STD)

FEATURES

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

24.000 ~ 54.000 MHz

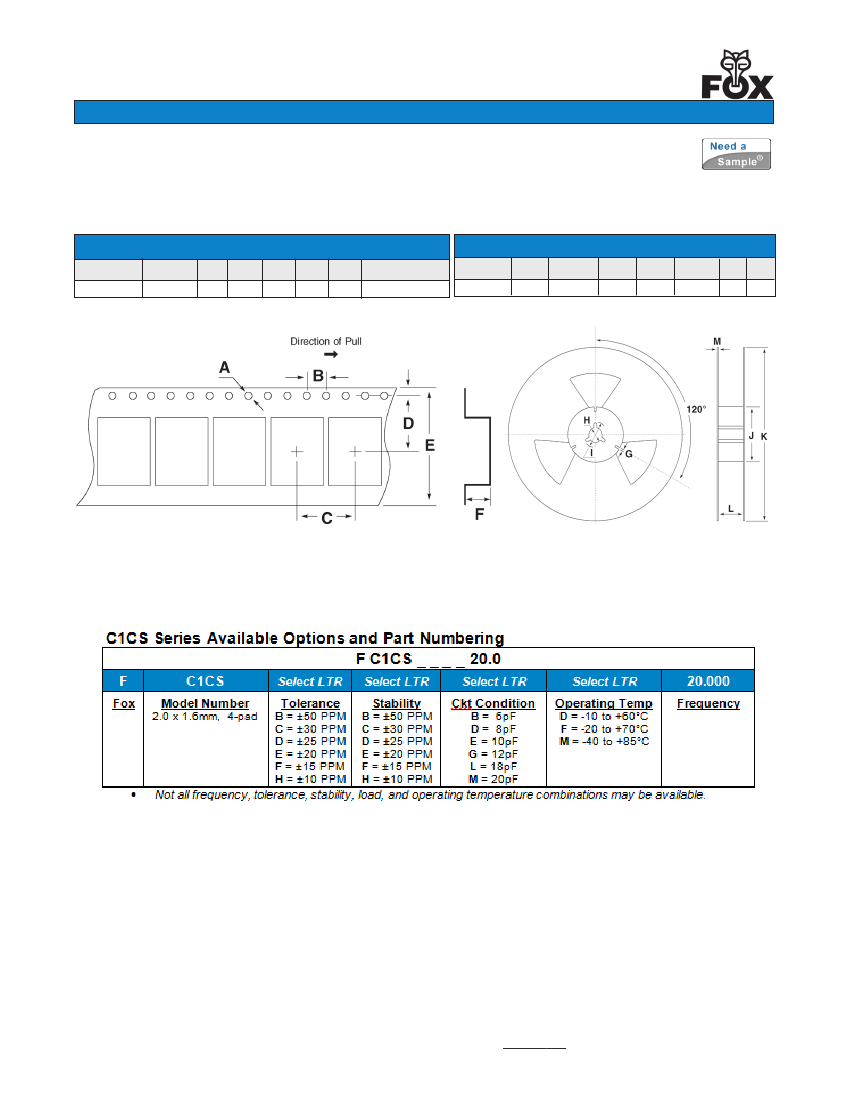

See options on page 2

-40ºC ~ +85ºC

5.0 pF

See options on page 2

(Customer Specified)

10uW typ.

100uW

±5 PPM

260ºC / 10 Seconds

Other tolerances, stabilities & operating temperature ranges available.

Frequency Range

(MHz)

24.000 ~ 29.999

29.999+ ~ 35.999

35.999+ ~ 54.000

Operating Mode

Fundamental

Max ESR

Ω

100

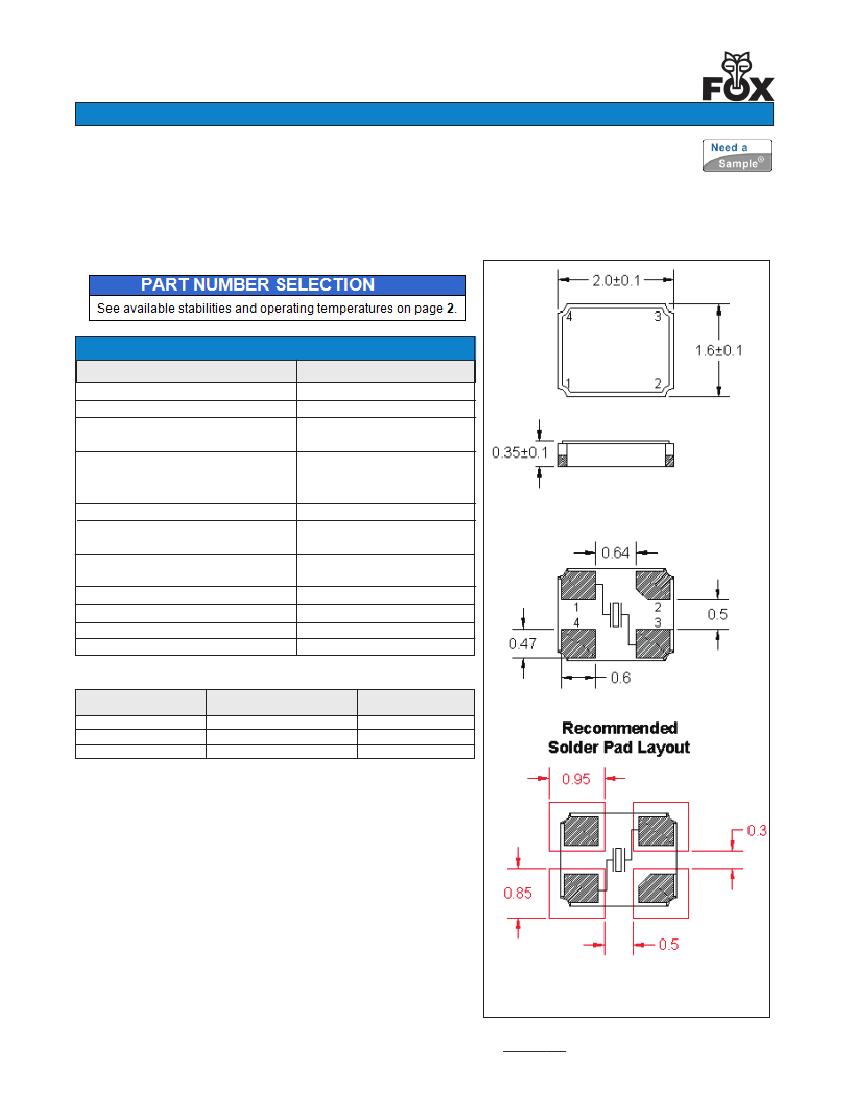

Note: Dimensional drawing is for reference to critical specifications defined by size measure-

ments. Certain non-critical visual attributes, such as side castellations, etc. may vary.

The above specifications, having been carefully prepared and checked, is believed to be ac-

curate at the time of publication; however, no responsibility is assumed by Fox Electronics for

inaccuracies

All dimensions are in millimeters.

#1 Crystal

#2 NC

Pin Connections

#3 Crystal*

#4 Lid (GND)

*For proper operation, Pin 4 must be connected to GND.

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554
