MBRB2045CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBRB2045CT

MBRB2045CT: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, PLASTIC, D2PAK-3; CategoryDiscrete semiconductor diode; File Size394KB，5 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

MBRB2045CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBRB2045CT	-	-	View	Buy Now

MBRB2045CT Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, PLASTIC, D2PAK-3

MBRB2045CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	TO-263
package instruction	R-PSSO-G2
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.57 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	220 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

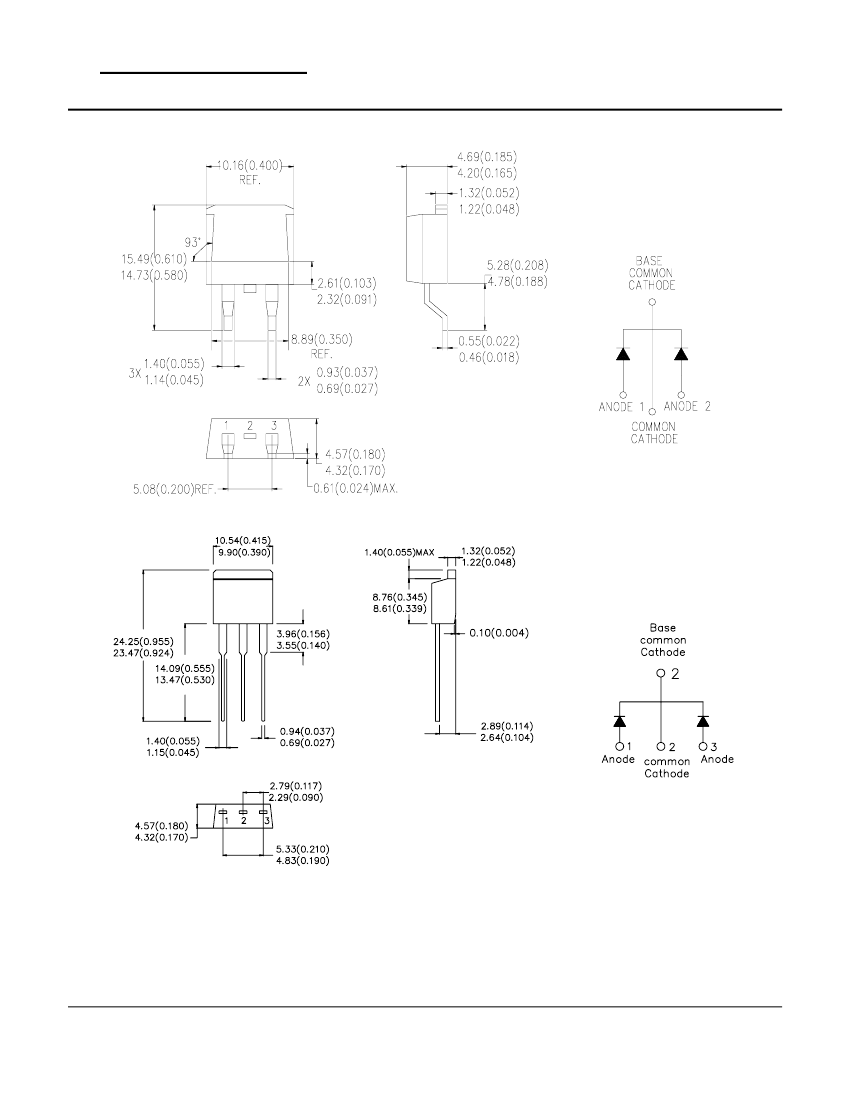

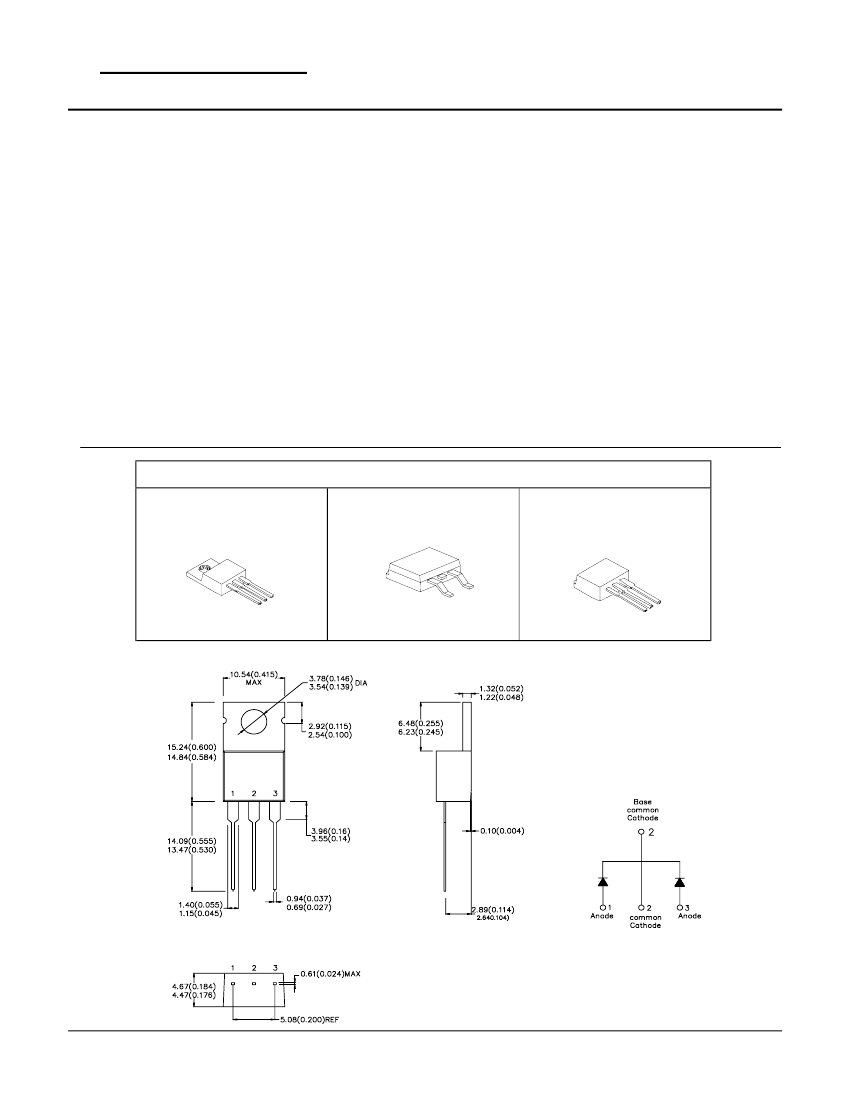

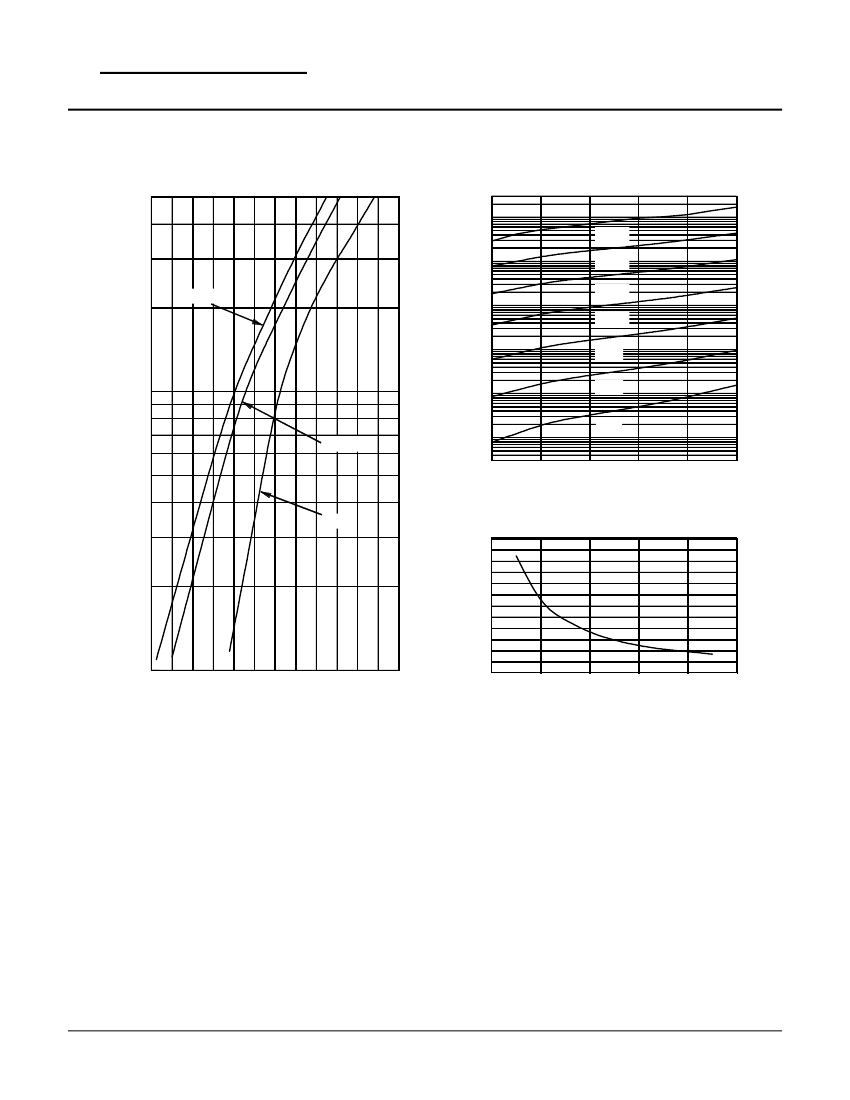

Preview

Download Datasheet

View All

Technical Data

2909,

Rev. A

Data Sheet

•

• • • !"

•

" & "

" "

•

) ." / "" - " ." " "

•

. "

-0 "

•

1" - " " . "!

SENSITRON

SEMICONDUCTOR

2" " . 3 4 ..

TO-220AB

•

!!"#$•

•

% & '(&)*+,,---. &

./0•12&%#

%3 &

./0•

MBRB2045CT Related Products

	MBRB2045CT	MBR2035CT-1	MBR2045CT-1	MBRB2035	MBRB2035CT	MBRB2045CT-T4	MBRB2035CT-T4
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, PLASTIC, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 35V V(RRM), Silicon, TO-262AA, PLASTIC, TO-262, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, TO-262AA, PLASTIC, TO-262, 3 PIN	Rectifier Diode,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 35V V(RRM), Silicon, PLASTIC, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, Silicon, PLASTIC, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, Silicon, PLASTIC, D2PAK-3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible
Maker	SENSITRON	-	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON
Parts packaging code	TO-263	TO-262AA	TO-262AA	-	TO-263	TO-263	TO-263
package instruction	R-PSSO-G2	R-PSIP-T3	R-PSIP-T3	-	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Contacts	3	3	3	-	3	3	3
Other features	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	-	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	-	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.57 V	0.57 V	0.57 V	-	0.57 V	-	-
JESD-30 code	R-PSSO-G2	R-PSIP-T3	R-PSIP-T3	-	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e0	e0	e0	-	e0	-	-
Humidity sensitivity level	1	1	1	-	1	1	1
Maximum non-repetitive peak forward current	220 A	220 A	220 A	-	220 A	220 A	220 A
Number of components	2	2	2	-	2	2	2
Phase	1	1	1	-	1	1	1
Number of terminals	2	3	3	-	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-	-65 °C	-65 °C	-65 °C
Maximum output current	10 A	10 A	10 A	-	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	35 V	45 V	-	35 V	-	-
surface mount	YES	NO	NO	-	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	-
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
