DFNS8-MLECP666.5124MHZXB25 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFNS8-MLECP666.5124MHZXB25

DFNS8-MLECP666.5124MHZXB25: DescriptionLVPECL Output Clock Oscillator, 666.5124MHz Nom; CategoryPassive components oscillator; File Size86KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFNS8-MLECP666.5124MHZXB25 Overview

LVPECL Output Clock Oscillator, 666.5124MHz Nom

DFNS8-MLECP666.5124MHZXB25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compliant
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	DFNS8-MLECP
Installation features	SURFACE MOUNT
Nominal operating frequency	666.5124 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	19.8mm x 12.8mm x 7.8mm
longest rise time	0.5 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

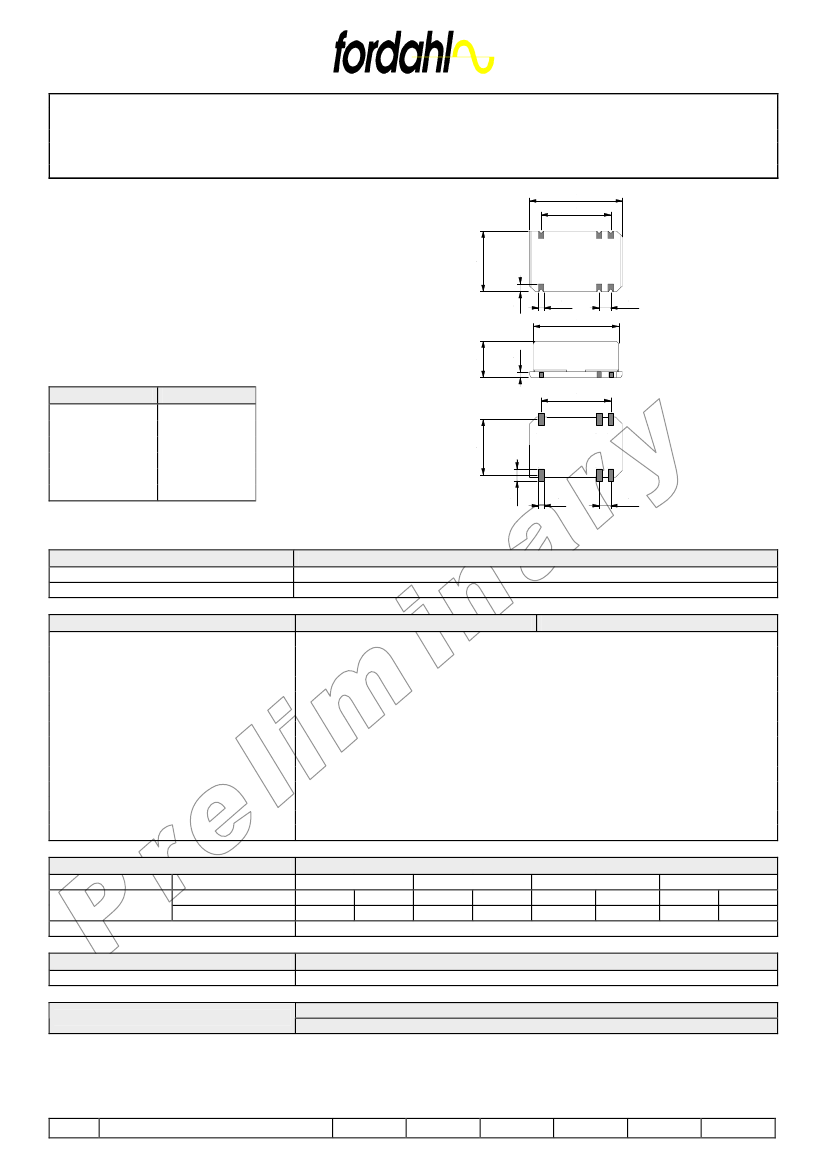

FREQUENCY CONTROL PRODUCTS

SURFACE MOUNT PRECISION OSCILLATOR

DFN S8-MLECP (3.3 V)

CRYSTAL PACKED INTO ITS OWN HOLDER

12.8±0.1

19.8±0.2

15.24

3.3 V SUPPLY VOLTAGE

VERY LOW JITTER

1.6

1.27

18.4

2.54

H±0.15

2.6

Function

N/C

GND

Output 1

Output 2

Vcc

DFN S8

1.2

15.24

9 8

PC board footprint

12.0

6 7

1.3

2.54

H=7.80 mm

TYPE

Frequency Range

Standard Frequencies

DFN S8-MLECP

622.08 to 800 MHZ

622.08, 644.53125 & 666.5124 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle @ 50% level

rise/fall times ( 20 to 80% )

high/low levels

jitter RMS ( 12 kHz to 5 MHz )

jitter RMS ( 50 kHz to 80 MHz )

complementary output on pin 9

start up

3.3 V ± 5 %

≤

60 mA

LVPECL 100 K ( 50

Ω

to 1.3 V )

45/55...55/45 %

≤

0.5 ns

≥

2.22 V/

≤

1.7 V

≤

0.5 ps

≤

3.0 ps

180° phase shifted

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

types

all types

Remark

stability [ ppm ] and temperature code

temperature range

stability code

stability

code

stability code

0 to 70°C ± 20

XB20

± 25

XB25

± 50

XB50

± 100

XB100

-40 to 85°C ± 25

XE25

± 50

XE50

± 75

XE75

± 100

XE100

includes calibration at 25°C, temperature, ageing, Vcc and load changes 1 year

type + option code + frequency + stability / temperature code

DFN S8-MLECP 622.08 MHz XB20

Please consult factory for -40 to +85°C versions

Preliminary data sheet subject to change without notice

ORDERING CODE

Example

REMARK

TYPE

DFN S8-MLECP

REV

DATE

09.10.2001

CHECKED

JYA/MYP
