503367-3200: Description2.50mm (.098") Pitch Floating Wire-to-Board PCB Receptacle, Dual Row, Through Hole, Vertical, with Peg, 32 Circuits; CategoryThe connector The connector; File Size244KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

503367-3200 Overview

2.50mm (.098") Pitch Floating Wire-to-Board PCB Receptacle, Dual Row, Through Hole, Vertical, with Peg, 32 Circuits

503367-3200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.465 inch
subject depth	0.787 inch
body length	2.071 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1050VAC V
Durability	100 Cycles
maximum insertion force	1.112 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	32
Evacuation force-minimum value	.0973 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

5033673200

Active

2.50mm (.098") Pitch Floating Wire-to-Board PCB Receptacle, Dual Row, Through

Hole, Vertical, with Peg, 32 Circuits

Documents:

3D Model

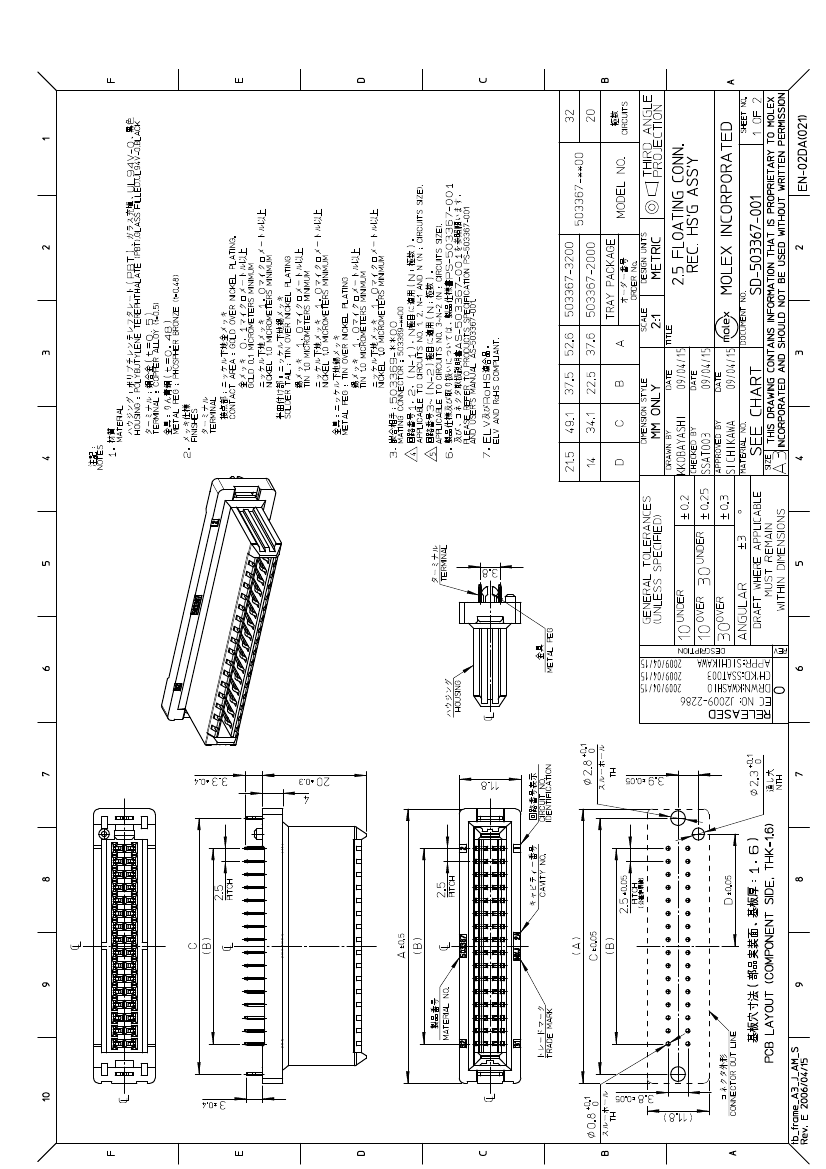

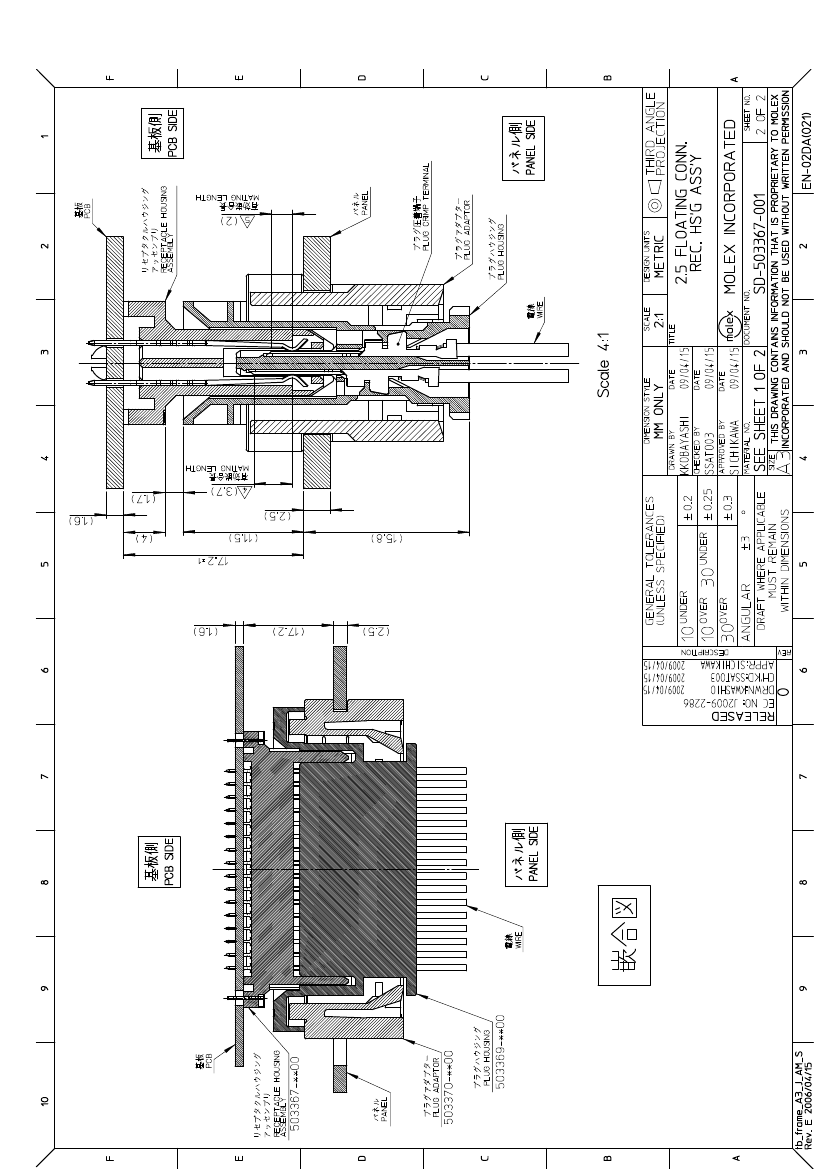

Drawing (PDF)

Product Specification PS-503367-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Product Name

PCB Receptacles

503367

Wire-to-Board

N/A

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Keying to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Black

100

Yes

1.299 In

33.00 mm

Copper Alloy

Gold

Tin

Vertical

Yes

0.062 In

1.60 mm

Tray

0.098 In

2.50 mm

Yes

-25°C to +85°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

503367

Mates

503369

Termin

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

AS-503367-001

PS-503367-001

SD-503367-001

This document was generated on 05/18/2010
