FD308-B25SA4A2-000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FD308-B25SA4A2-000

FD308-B25SA4A2-000: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

FD308-B25SA4A2-000 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT

FD308-B25SA4A2-000 Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL
Contact completed and terminated	GOLD (20) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHERSULFONE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	FD308
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

AMPHENOL

FD308

FIL

TERED D-SUB

RUGGEDIZED

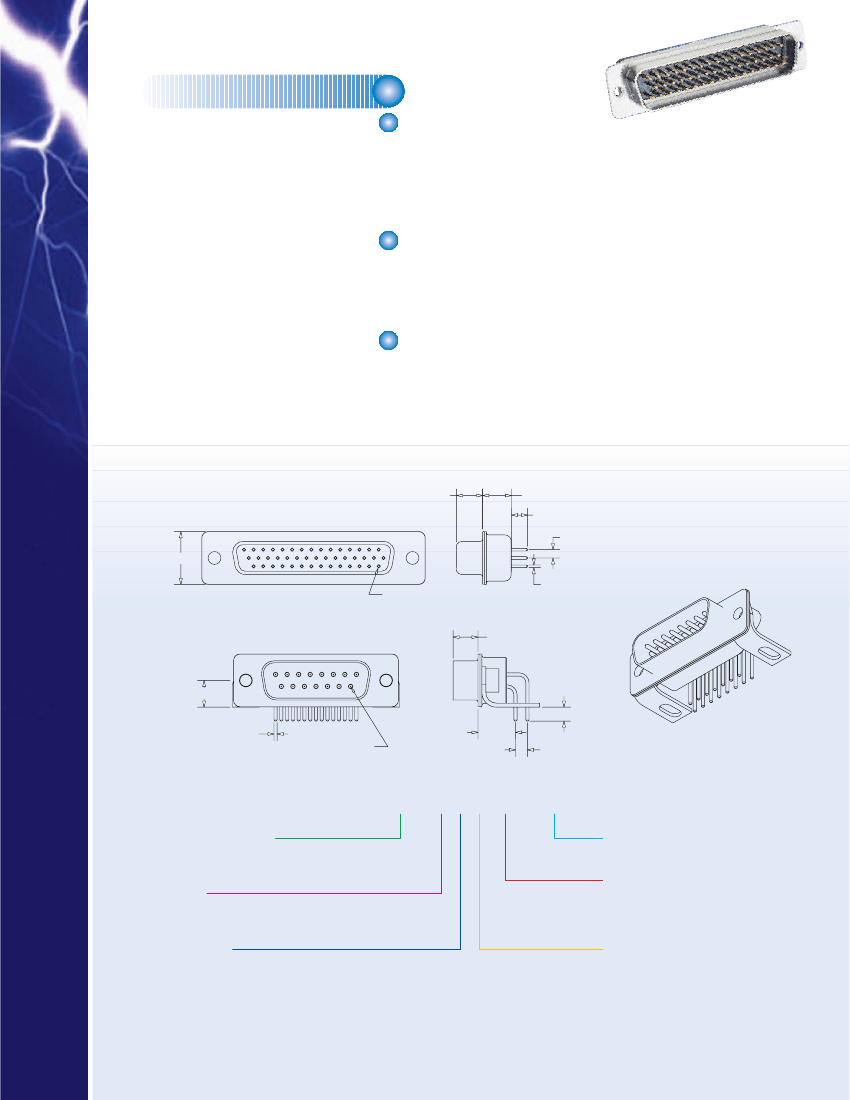

Amphenol’s FD308 connectors are

available in the full range of standard and

high-density arrangements, either pin or

socket. These connectors are supplied with

fixed screw machine contacts and are

available in Solder Cup, Straight or Right

Angle PCB terminations.

Applications:

• Computers and Peripheral Equipment

• Ideal for Retrofit Applications or Late Design-In

SPECIFICATIONS

PRODUCT FEATURES:

• HI RELIABILITY FILTERING IN MULTI ROW ARRANGEMENTS

• STAMPED AND FORMED SHELLS

• SCREW MACHINE CONTACTS AND HI RELIABILITY INSERTS

• AVAILABLE IN ALL HI-DENSITY INSERT PATTERNS

• MATES WITH MIL-DTL-24308 D-SUBS

MATERIALS AND PLATINGS:

SHELLS

STAMPED STEEL SHELL, TIN PLATED

INSERTS

HIGH TEMPERATURE RESISTANT POLYETHERSULFONE PER MIL-P-46185

CONTACTS

MACHINED COPPER ALLOY, 20μ" GOLD OVER NICKEL

CAPACITOR

BARIUM TITANATE CERAMIC ARRAY

ELECTRICAL RATINGS:

CURRENT

INSULATION RESISTANCE

WORKING VOLTAGE

D.W.V.

CAPACITANCE

INSERTION LOSS

TEMPERATURE

.243

.270

.150 MAX

.078

5 GΩ @ 200 Vdc

200 Vdc

500 Vdc PIN-PIN / PIN-SHELL

+/- 20%

SEE BACK PAGE

-55°C / +125°C

FIL

TERED D-SUB

.494

Size 22 Socket

44 plcs

.233

.025 ± .002

.250

.130

.030 ± .002

Size 20 Pin

15 plcs

.350

.112

(.100 for Hi Density)

FD308 - B44 S A 1 A2 - 000

SIZE & NUMBER 0F CONTACTS

STD Density E09, A15, B25, C37, D50

High Density E15, A26, B44, C62, D78, 6104

CONTACT TYPE

= Socket Contact (Receptacle)

= Pin Contact (Plug)

TERMINATION STYLE

= Right Angle PCB

= Vertical PCB

= Solder Cup

(Plug ONLY)

000

= Standard part

other deviations as required

CAPACITANCE CODE

= 200 pF

= 400 pF

= 1000 pF

= 2000 pF

= 5000 pF

MOUNTING TYPE

= 4-40 Clinch Nut

= Ø.120 thru hole

= R/A Mounting Bracket

= 4-40 Clinch Nut with

R/A Mounting Bracket

Visit www.amphenolcanada.com for drawings.

ELEPHONE

: (416) 291-4401 F

: (416) 292-0647 E-M

AIL

SALES

AMPHENOLCANADA

COM
