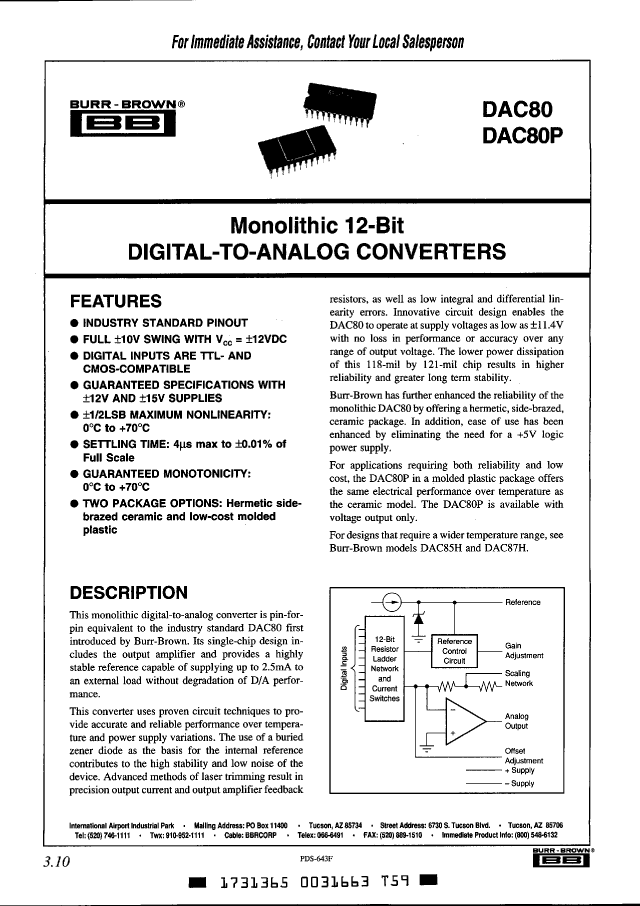

DAC80-CBI-I-BI

Description
D/A Converter, 12-Bit, 1 Func, Bipolar, CDIP24,
CategoryAnalog mixed-signal IC    converter
File Size737KB,9 Pages
ManufacturerBurr-Brown
Websitehttp://www.burr-brown.com/
Download Datasheet Parametric Compare View All

DAC80-CBI-I-BI Overview

D/A Converter, 12-Bit, 1 Func, Bipolar, CDIP24,

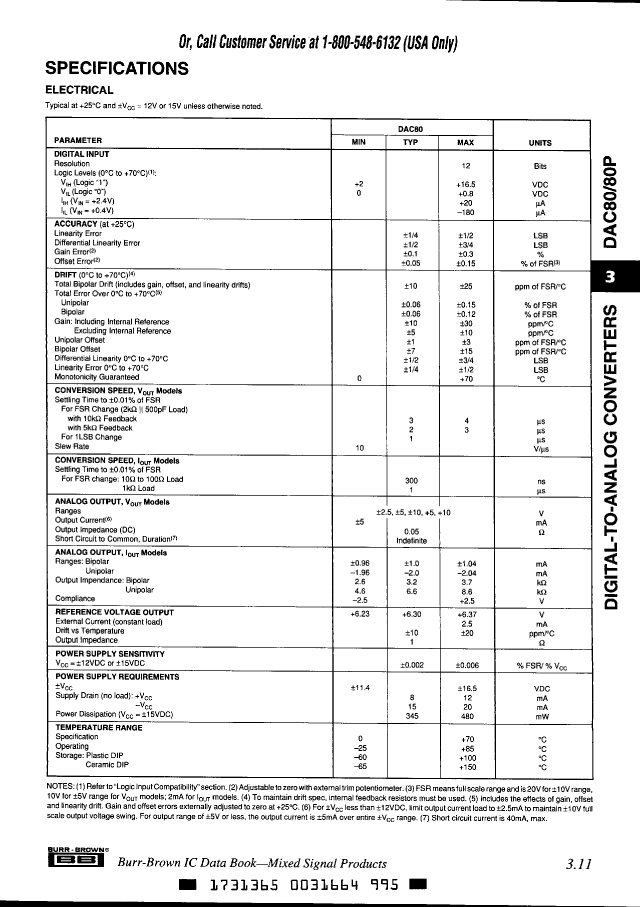

DAC80-CBI-I-BI Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerBurr-Brown
Reach Compliance Codeunknown
Converter typeD/A CONVERTER
Enter bit codeCOMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
JESD-30 codeR-XDIP-T24
JESD-609 codee0
Maximum linear error (EL)0.012%
Number of digits12
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.6
Package shapeRECTANGULAR
Package formIN-LINE
power supply+-12/+-15 V
Maximum stabilization time4 µs
surface mountNO
technologyBIPOLAR
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

DAC80-CBI-I-BI Related Products

DAC80-CBI-I-BI DAC80Z-CBI-V-BI DAC80P-CBI-I-BI DAC80Z-CBI-I-BI
Description D/A Converter, 12-Bit, 1 Func, Bipolar, CDIP24, D/A Converter, 12-Bit, 1 Func, Bipolar, CDIP24, D/A Converter, 12-Bit, 1 Func, Bipolar, PDIP24, D/A Converter, 12-Bit, 1 Func, Bipolar, CDIP24,
Is it Rohs certified? incompatible incompatible incompatible incompatible
Maker Burr-Brown Burr-Brown Burr-Brown Burr-Brown
Reach Compliance Code unknown unknown unknown unknown
Converter type D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER
Enter bit code COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
JESD-30 code R-XDIP-T24 R-XDIP-T24 R-PDIP-T24 R-XDIP-T24
JESD-609 code e0 e0 e0 e0
Maximum linear error (EL) 0.012% 0.012% 0.012% 0.012%
Number of digits 12 12 12 12
Number of functions 1 1 1 1
Number of terminals 24 24 24 24
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C
Package body material CERAMIC CERAMIC PLASTIC/EPOXY CERAMIC
encapsulated code DIP DIP DIP DIP
Encapsulate equivalent code DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE
power supply +-12/+-15 V +-12/+-15 V +-12/+-15 V +-12/+-15 V
Maximum stabilization time 4 µs 4 µs 4 µs 4 µs
surface mount NO NO NO NO
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL
