82HS321A/B3A Overview

OTP ROM, 4KX8, 45ns, Bipolar, CQCC28

82HS321A/B3A Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	45 ns
JESD-30 code	S-CQCC-N28
memory density	32768 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

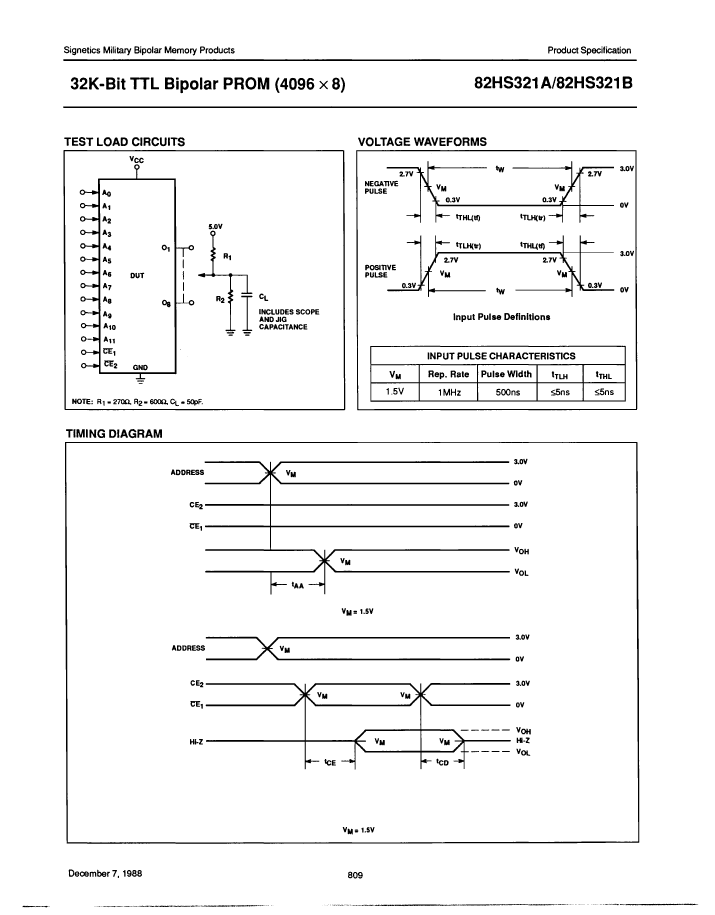

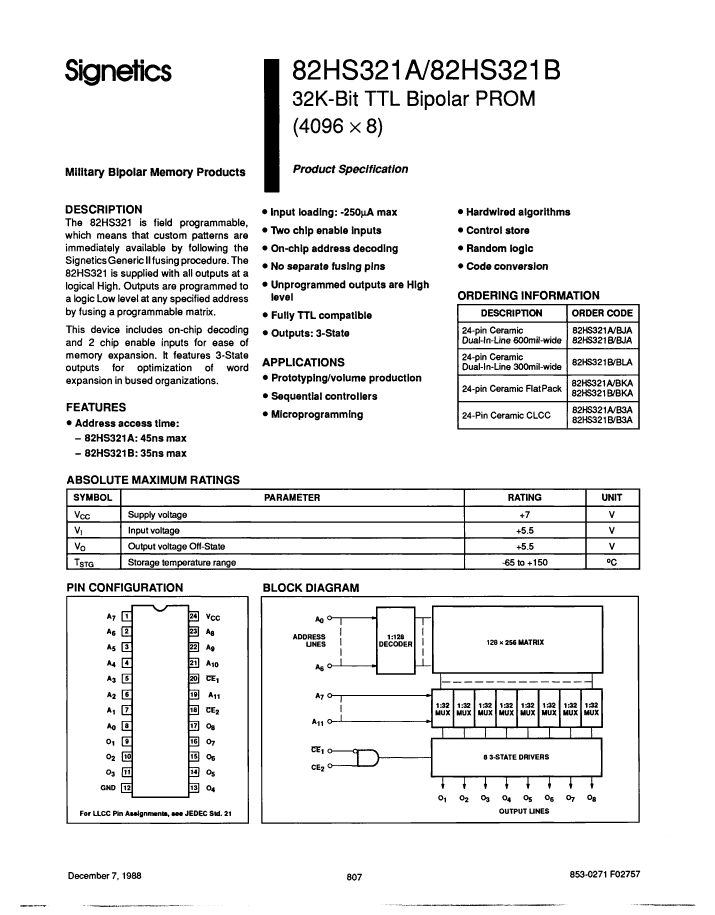

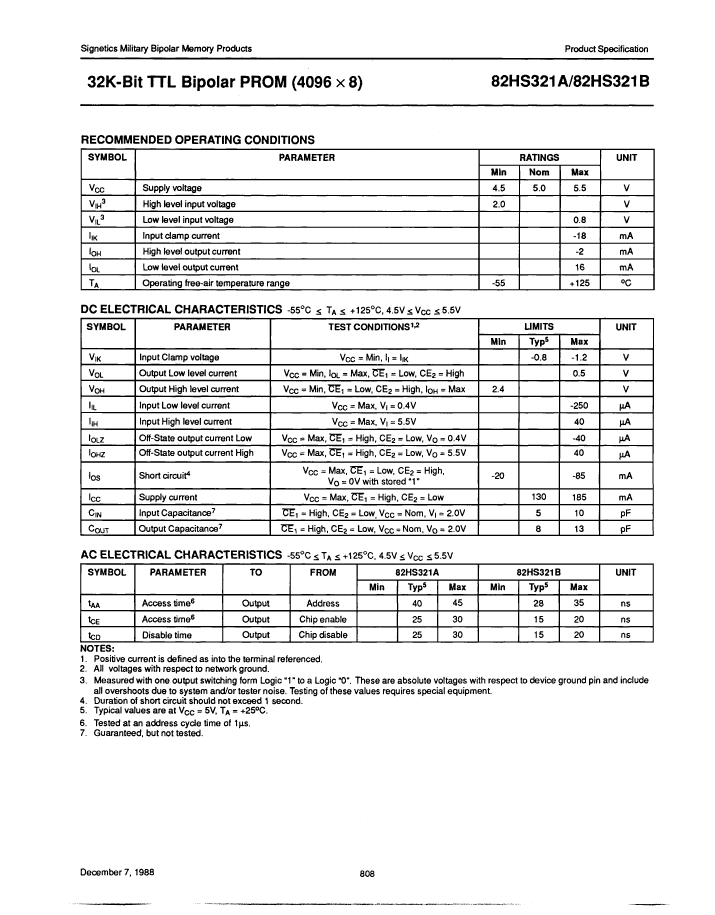

Preview

Download Datasheet

View All

82HS321A/B3A Related Products

	82HS321A/B3A	82HS321B/BKA	82HS321B/BJA	82HS321B/B3A	82HS321A/BJA	82HS321A/BKA	82HS321B/BLA
Description	OTP ROM, 4KX8, 45ns, Bipolar, CQCC28	OTP ROM, 4KX8, 35ns, Bipolar, CDFP24	OTP ROM, 4KX8, 35ns, Bipolar, CDIP24	OTP ROM, 4KX8, 35ns, Bipolar, CQCC28	OTP ROM, 4KX8, 45ns, Bipolar, CDIP24	OTP ROM, 4KX8, 45ns, Bipolar, CDFP24	OTP ROM, 4KX8, 35ns, Bipolar, CDIP24
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	45 ns	35 ns	35 ns	35 ns	45 ns	45 ns	35 ns
JESD-30 code	S-CQCC-N28	R-CDFP-F24	R-CDIP-T24	S-CQCC-N28	R-CDIP-T24	R-CDFP-F24	R-CDIP-T24
memory density	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	24	24	28	24	24	24
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
