82S101/B3A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 82S101/B3A

82S101/B3A: DescriptionOT PLD, 80ns, Bipolar, CQCC28; CategoryProgrammable logic devices Programmable logic; File Size675KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

82S101/B3A Overview

OT PLD, 80ns, Bipolar, CQCC28

82S101/B3A Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
JESD-30 code	S-CQCC-N28
Dedicated input times	16
Number of I/O lines
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16 DEDICATED INPUTS, 0 I/O
Output function	COMBINATORIAL
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	80 ns
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

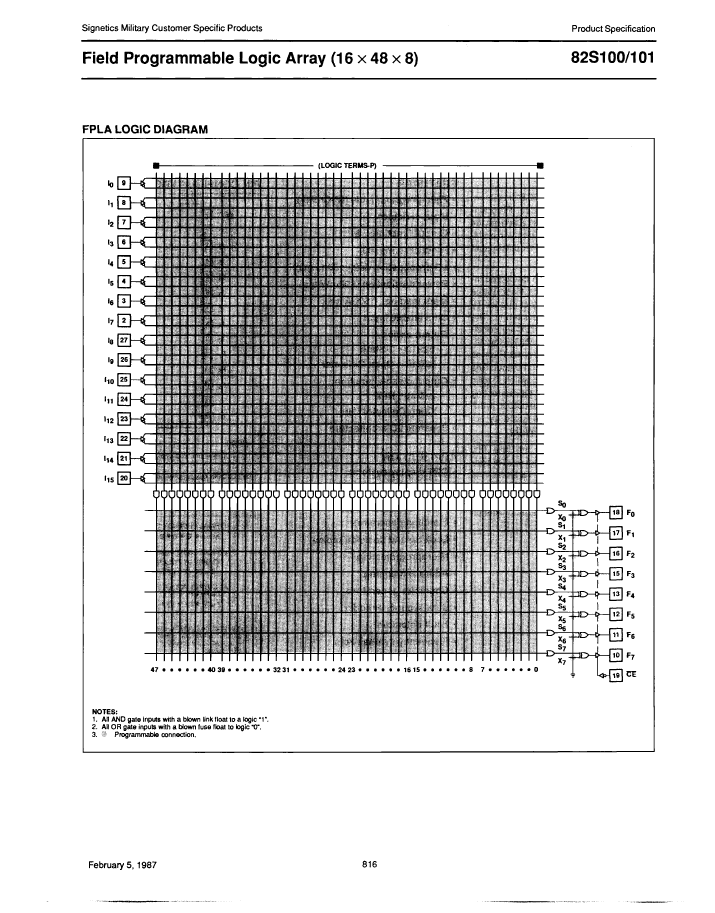

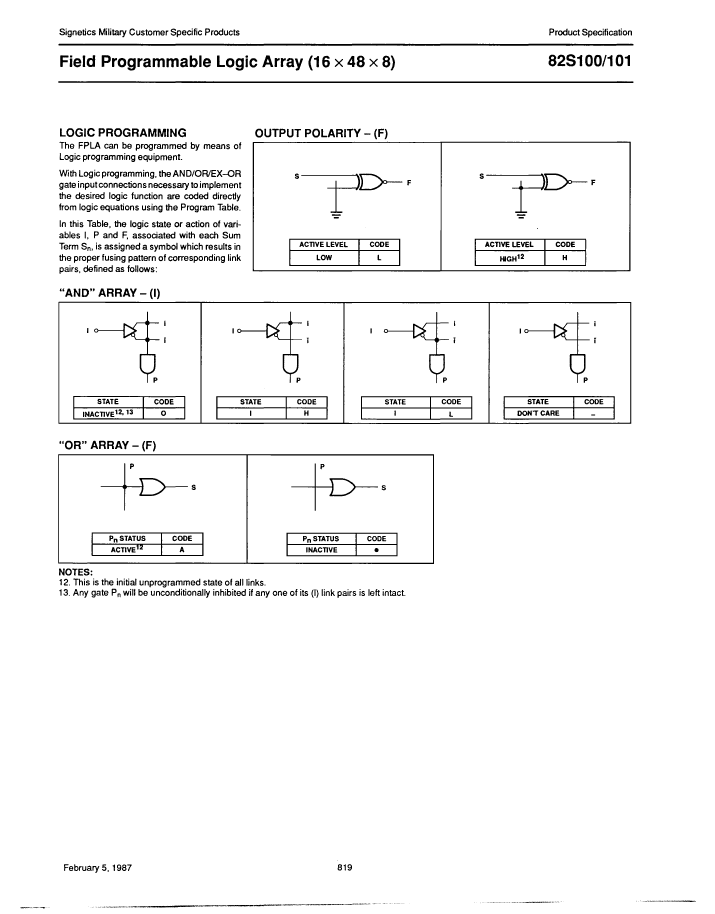

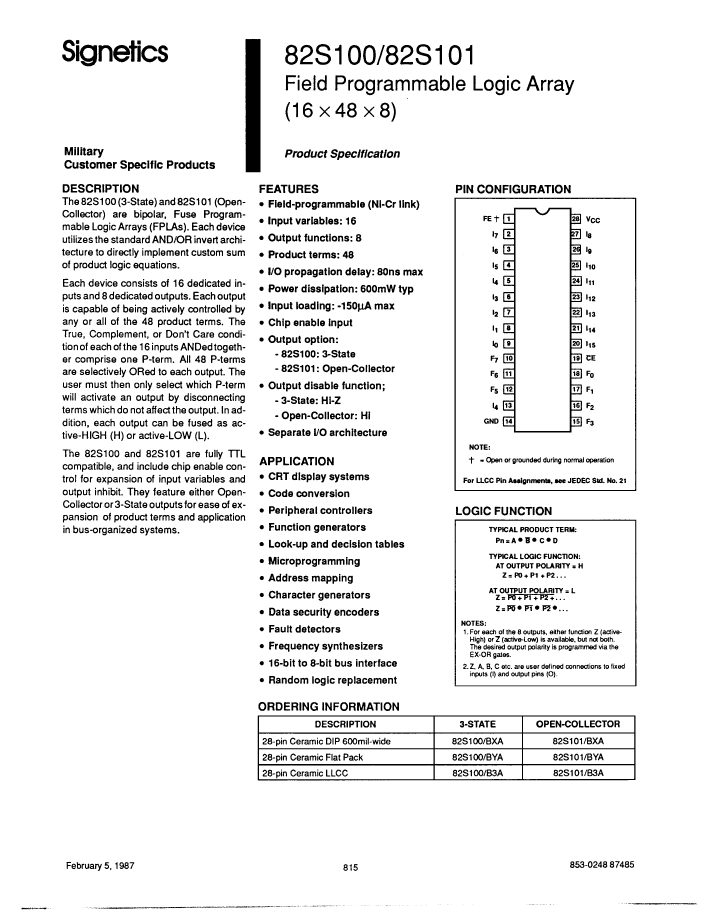

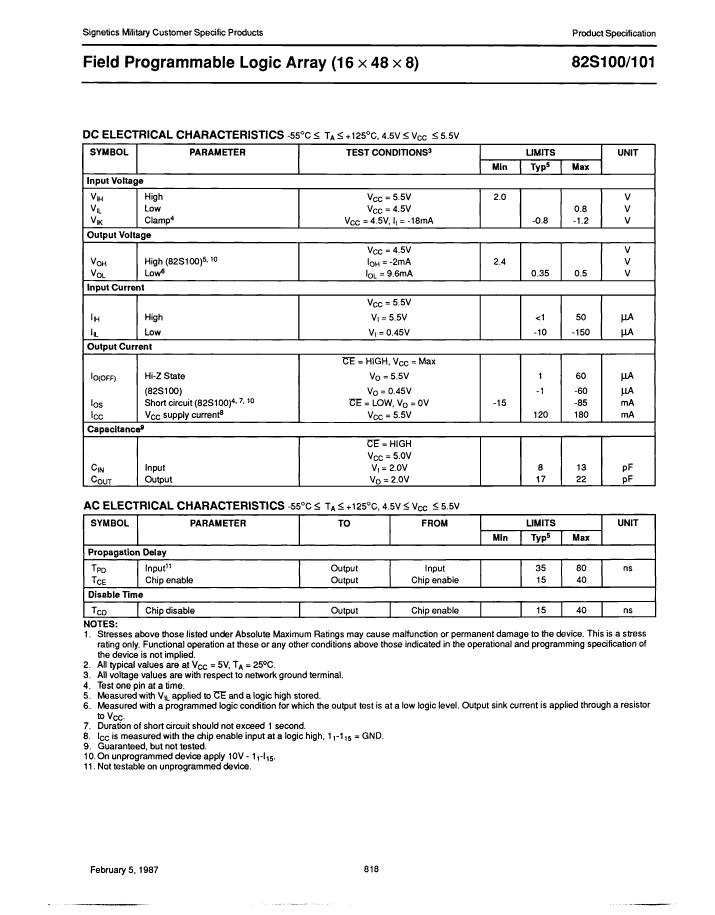

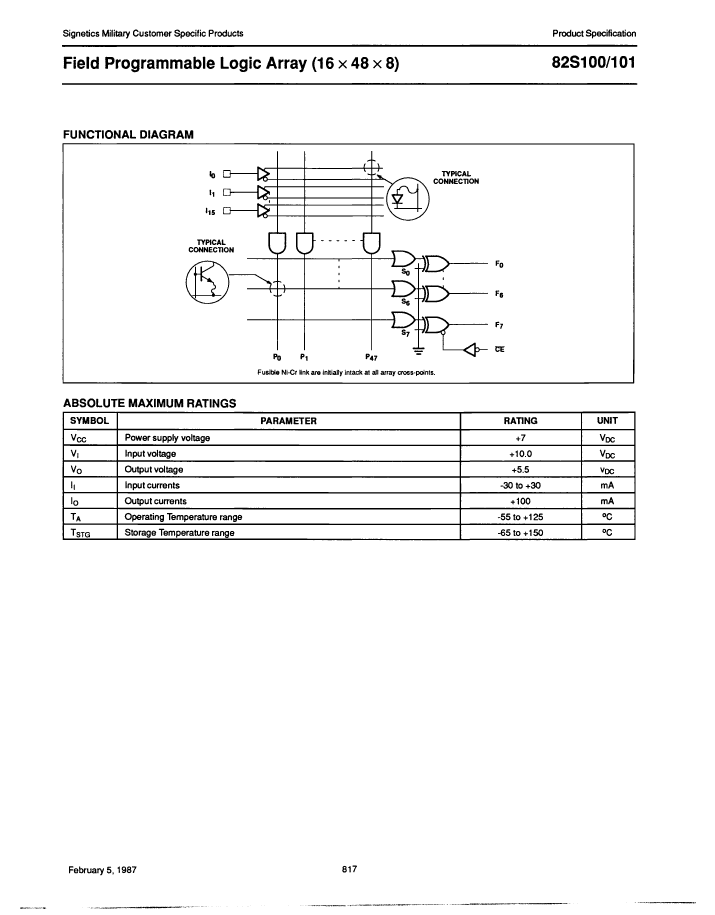

Preview

Download Datasheet

View All

82S101/B3A Related Products

	82S101/B3A	82S100/BYA	82S100/B3A	82S100/BXA	82S101/BXA	82S101/BYA
Description	OT PLD, 80ns, Bipolar, CQCC28	OT PLD, 80ns, Bipolar, CDFP28	OT PLD, 80ns, Bipolar, CQCC28	OT PLD, 80ns, Bipolar, CDIP28	OT PLD, 80ns, Bipolar, CDIP28	OT PLD, 80ns, Bipolar, CDFP28
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
JESD-30 code	S-CQCC-N28	R-CDFP-F28	S-CQCC-N28	R-CDIP-T28	R-CDIP-T28	R-CDFP-F28
Dedicated input times	16	16	16	16	16	16
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O
Output function	COMBINATORIAL	COMBINATORIAL	COMBINATORIAL	COMBINATORIAL	COMBINATORIAL	COMBINATORIAL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
propagation delay	80 ns	80 ns	80 ns	80 ns	80 ns	80 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
