A-70475-0259: Description15 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC; Categorysemiconductor Other integrated circuit (IC); File Size149KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

A-70475-0259 Overview

15 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0014450615

Active

cgrid__sl_products

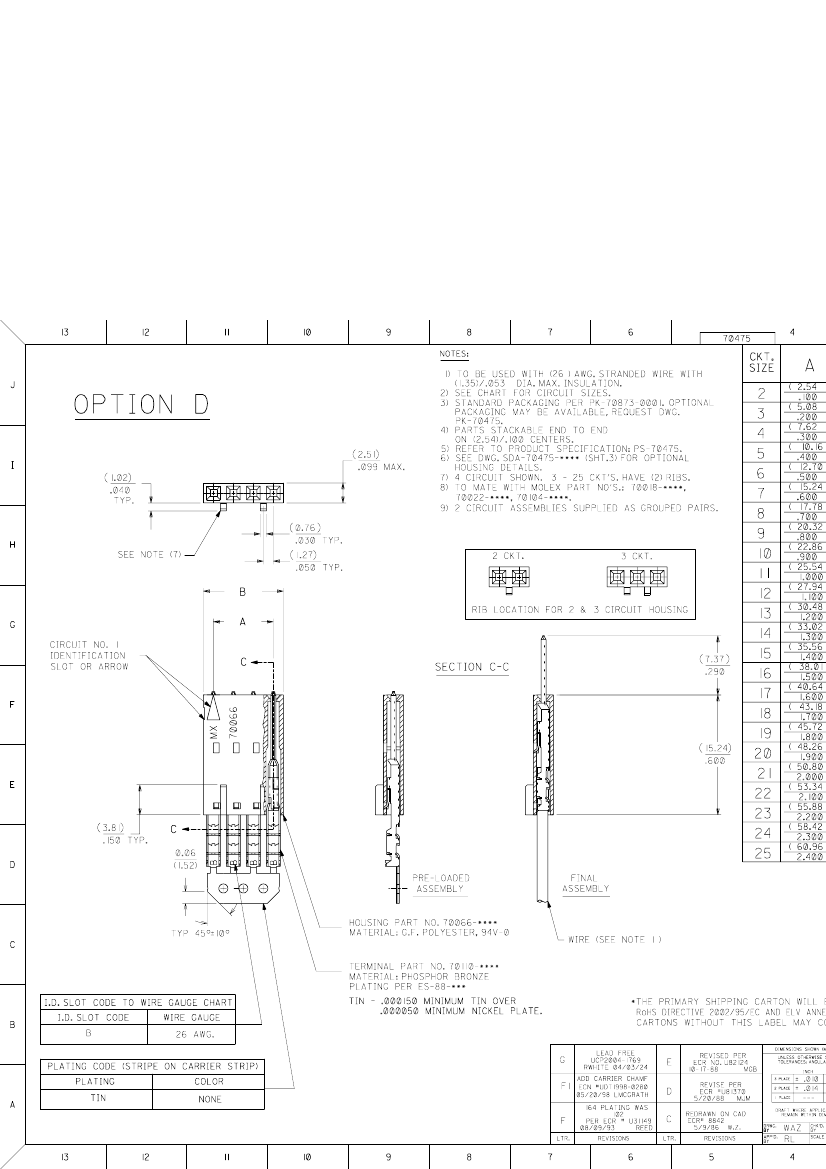

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Male, Single

Row, Version D, Back Ribs, for Wire Size 26, 3.81µm (150µ") Tin (Sn), 15 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70475

Terminals Preloaded

Housing

cgrid__sl_products

SL™

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

None

Phosphor Bronze

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

150

3.81

150

3.81

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Email pro

For a mu

Complian

Please vi

non-prod

70475S

Mates

70004

Interim

Use W

7307 T

28AWG

Topcoa

8997 T

26AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.8A

250V

Material Info

Recommended Resources
