E-3001-8 Overview

8 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

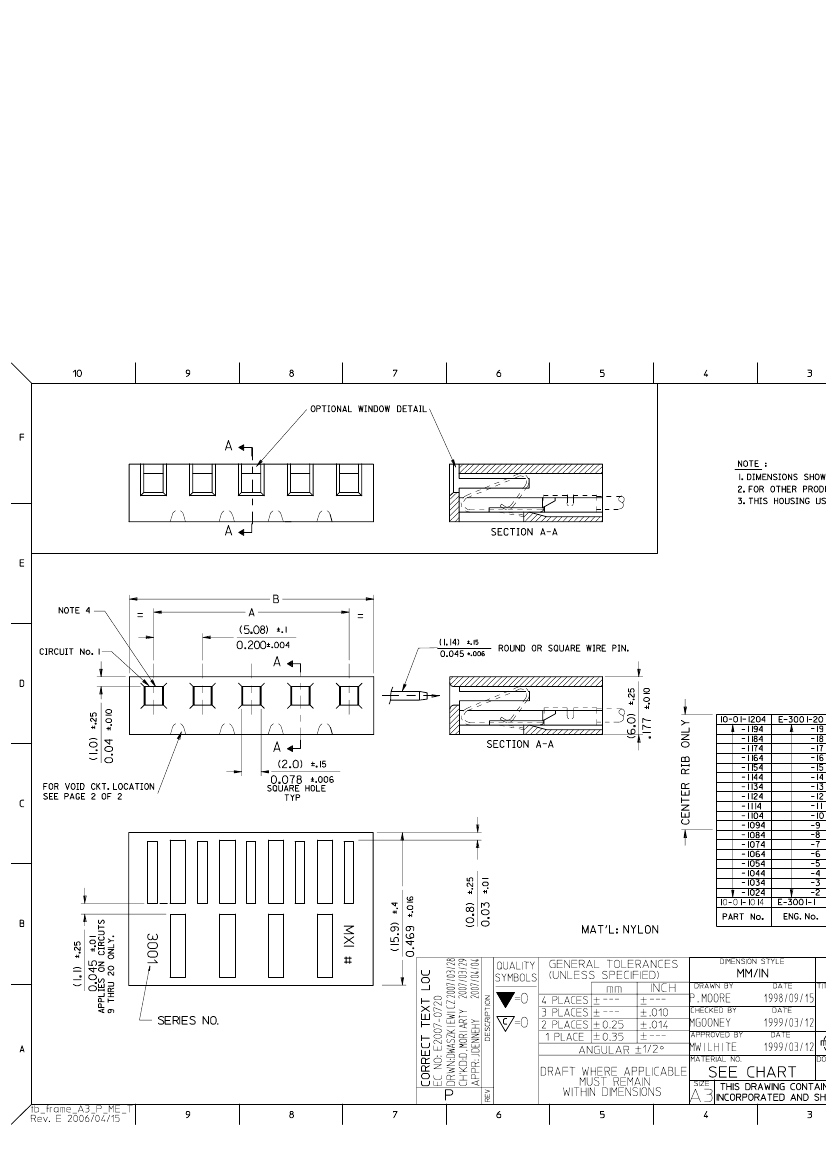

Drawing (PDF)
0010011084
Active
kk
5.08mm (.200") Pitch KK® Crimp Terminal Housing, 8 Circuits
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Overview
Product Name
Crimp Housings
3001
kk
KK®
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Temperature Range - Operating
8
Natural
94V-2
Female
No
Nylon
1
Bag
No
0.200 In
5.08 mm
-40°C to +105°C
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Search
3001Se
Mates
3061 ,
Material Info
Old Part Number
300108
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-99020-0087
SDE-3001-N-*
Use W
2478 C
Crimp T
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
