CDRH5D18BHPNP-1R0MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH5D18BHPNP-1R0MB

CDRH5D18BHPNP-1R0MB: DescriptionGeneral Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size101KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDRH5D18BHPNP-1R0MB Overview

General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT

CDRH5D18BHPNP-1R0MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2524
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2524
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.031 Ω
Nominal inductance(L)	1 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH5D18B/HP
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.8 mm
Package length	6 mm
Package form	SMT
Package width	6 mm
method of packing	Box
Maximum rated current	3.7 A
series	CDRH5D18B/HP
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

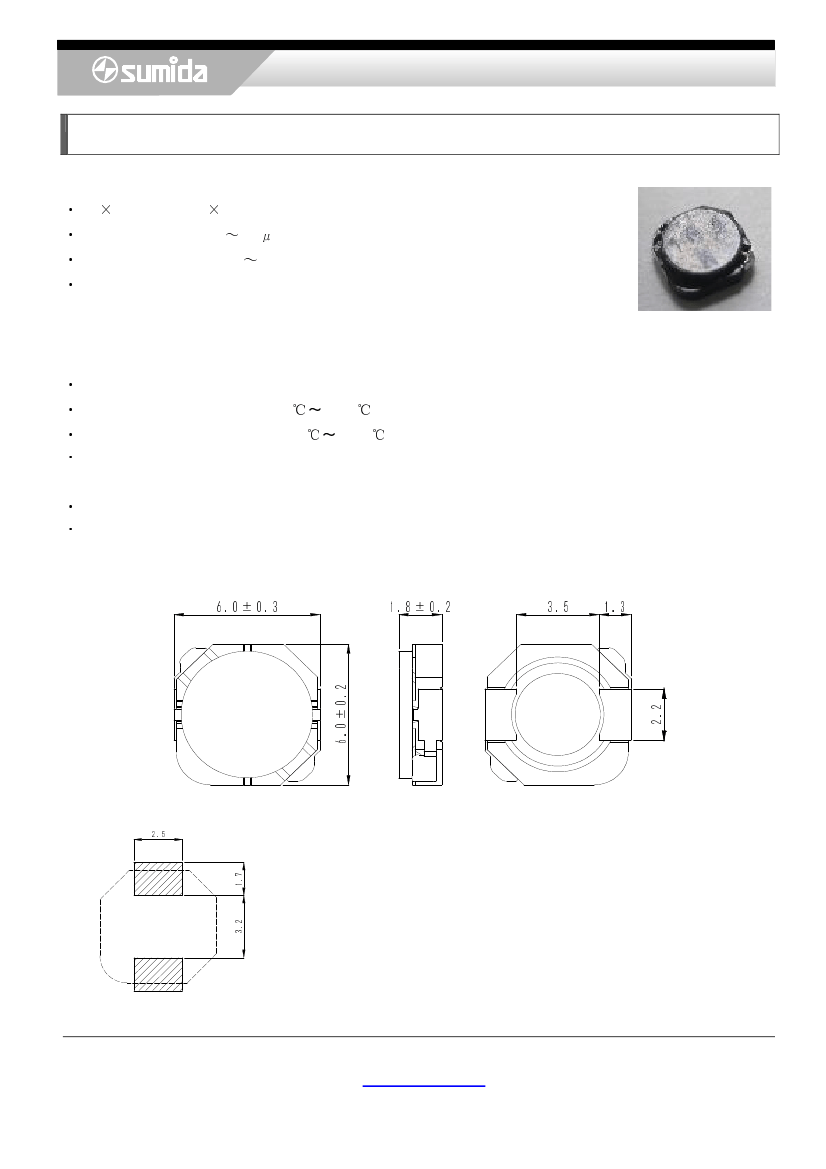

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH5D18B/HP

◆

Product Description

6.3 6.2mm Max.(L W) 2.0mm

Max. Height.

Inductance range:

0.6 5.0 H.

Rated current range:

1.7 4.4A.

In addition to the standard versions of inductors shown here,

custom inductors are available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+105 (Including coil’s self temperature rise).

Ideally used in Mobile phone, MP3, PDA,HDD, DSC/DVC, Game machine, etc as DC-DC converter

inductors.

Product weight: 0.1g (Ref.).

RoHS Compliance and Halogen Free.

◆

Dimensions (mm)

3.1

5.3

2.0 ±8.1

3.0 ±0 .6

◆

Land Pattern (mm)

5.2

Please refer to the sales offices on our website for a representative near you

www.sumida.com

℃ ½℃

Storage temperature range: -40

μ ½

・

+105 .

1/2

CDRH5D18BHPNP-1R0MB Related Products

	CDRH5D18BHPNP-1R0MB	CDRH5D18BHPNP-0R6MB	CDRH5D18BHPNP-2R7MB	CDRH5D18BHPNP-5R0MB	CDRH5D18BHPNP-4R2MB	CDRH5D18BHPNP-3R3MB	CDRH5D18BHPNP-1R8MB	CDRH5D18BHPNP-1R5MB
Description	General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 0.6uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 2.7uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 5uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 4.2uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 1.8uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT	General Purpose Inductor, 1.5uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, HALOGEN FREE AND ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	2524	2524	2524	2524	2524	2524	2524	2524
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	2524	2524	2524	2524	2524	2524	2524	2524
structure	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded
core material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	0.031 Ω	0.025 Ω	0.065 Ω	0.109 Ω	0.098 Ω	0.078 Ω	0.046 Ω	0.038 Ω
Nominal inductance(L)	1 µH	0.6 µH	2.7 µH	5 µH	4.2 µH	3.3 µH	1.8 µH	1.5 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
Package length	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm
method of packing	Box	Box	Box	Box	Box	Box	Box	Box
Maximum rated current	3.7 A	4.4 A	2.3 A	1.7 A	1.8 A	2 A	2.5 A	2.8 A
series	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP	CDRH5D18B/HP
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Maker	SUMIDA	SUMIDA	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA
