POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH6D28/G
◆
Product Description
・7.0×7.0mm
Max.(L×W), 3.0mm Max. Height.
・Inductance
Range:2.8
μ
H½100
μ
H
・Rated
current range: 0.55½3.05A
・In
addition to the standard versions of inductors shown here, custom inductors are available
to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in Mobile phone, Notebook,MP3, PDA ,HDD,DSC/DVC, etc as DC-DC Converter inductors.
・RoHS
Compliance.
◆

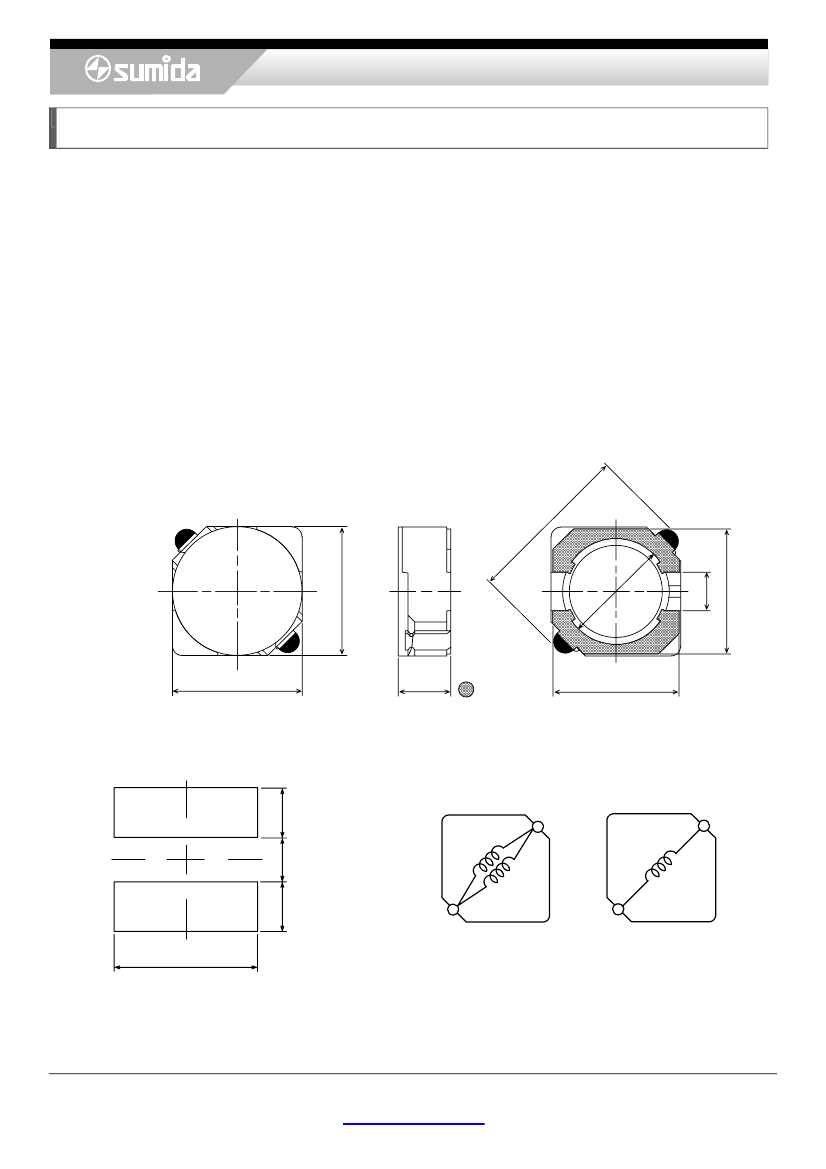

Dimensions (mm)
5
9.
.
AX
M
4
5.
※ 6.7±0.3
※ 6.7±0.3
(2.8)
3.0 MAX.
ELECTRODE
6.5
◆
Land Pattern (mm)
2.65
◆
Schematics (Bottom)
①
S
2.65
2.0
②
②
7.3
( 2.8μH½5.5μH )
( 6.5μH½100μH )
“Ｓ”is
winding start.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2.0
6.5
①
S
φ
1/2
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH6D28/G
◆
Specification
Inductance
Part Name
Stamp
［Within½
※1
CDRH6D28NP/G-2R8N□
CDRH6D28NP/G-3R6N□
CDRH6D28NP/G-4R5N□
CDRH6D28NP/G-5R5N□
CDRH6D28NP/G-6R5N□
CDRH6D28NP/G-7R7N□
CDRH6D28NP/G-9RØN□
CDRH6D28NP/G-1ØØN□
CDRH6D28NP/G-12ØN□
CDRH6D28NP/G-15ØN□
CDRH6D28NP/G-18ØN□
CDRH6D28NP/G-22ØN□
CDRH6D28NP/G-27ØN□
CDRH6D28NP/G-33ØN□
CDRH6D28NP/G-39ØN□
CDRH6D28NP/G-47ØN□
CDRH6D28NP/G-56ØN□
CDRH6D28NP/G-68ØN□
CDRH6D28NP/G-82ØN□
CDRH6D28NP/G-1Ø1N□
2R8
3R6
4R5
5R5
6R5
7R7
9R0
100
120
150
180
220
270
330
390
470
560
680
820
101
2.8μH
±
30%
3.6μH
±
30%
4.5μH
±
30%
5.5μH
±
30%
6.5μH
±
30%
7.7μH
±
30%
9.0μH
±
30%
10μH
±
30%
12μH
±
30%
15μH
±
30%
18μH
±
30%
22μH
±
30%
27μH
±
30%
33μH
±
30%
39μH
±
30%
47μH
±
30%
56μH
±
30%
68μH
±
30%
82μH
±
30%
100μH
±
30%
D.C.R.(Ω)
[Max.]
(At 20℃)
※2
24m (18m)
27m (20m)
31m (23m)
35m (26m)
54m (40m)
58m (43m)
65m (48m)
70m (52m)
74m (55m)
85m (63m)
115m (85m)
131m (97m)
146m(108m)
212m(157m)
232m(172m)
270m(200m)
290m(215m)
382m(283m)
506m(375m)
587m(435m)
Dc Superposition
Permission Current
(A)
※3
(at 25℃)
3.05
2.80
2.60
2.32
2.18
1.90
1.76
1.68
1.57
1.36
1.27
1.16
1.06
0.97
0.88
0.77
0.70
0.66
0.58
0.55
(at 105℃)
2.57
2.36
2.20
1.92
1.80
1.65
1.50
1.42
1.33
1.12
1.06
0.98
0.88
0.82
0.73
0.65
0.60
0.55
0.48
0.45
Temperature
Rise
Current(A)
※4
3.80
3.60
3.40
3.30
2.40
2.30
2.15
2.05
1.95
1.85
1.57
1.48
1.42
1.15
1.10
1.05
1.00
0.77
0.72
0.68
※
Description of part name
CDRH6D28NP/G-2R8N□
B Box
C
※1:Measure
freguency:10kHz
※2:(
) are typical value.
※3:DC
superposition permission current: the D.C. current at which the inductance decreases to 65%
of the nominal value.
※4:Temperature
rise current: the dc current at which temperature rise is 40℃. (Ta=20℃)
Carrier Tape
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
