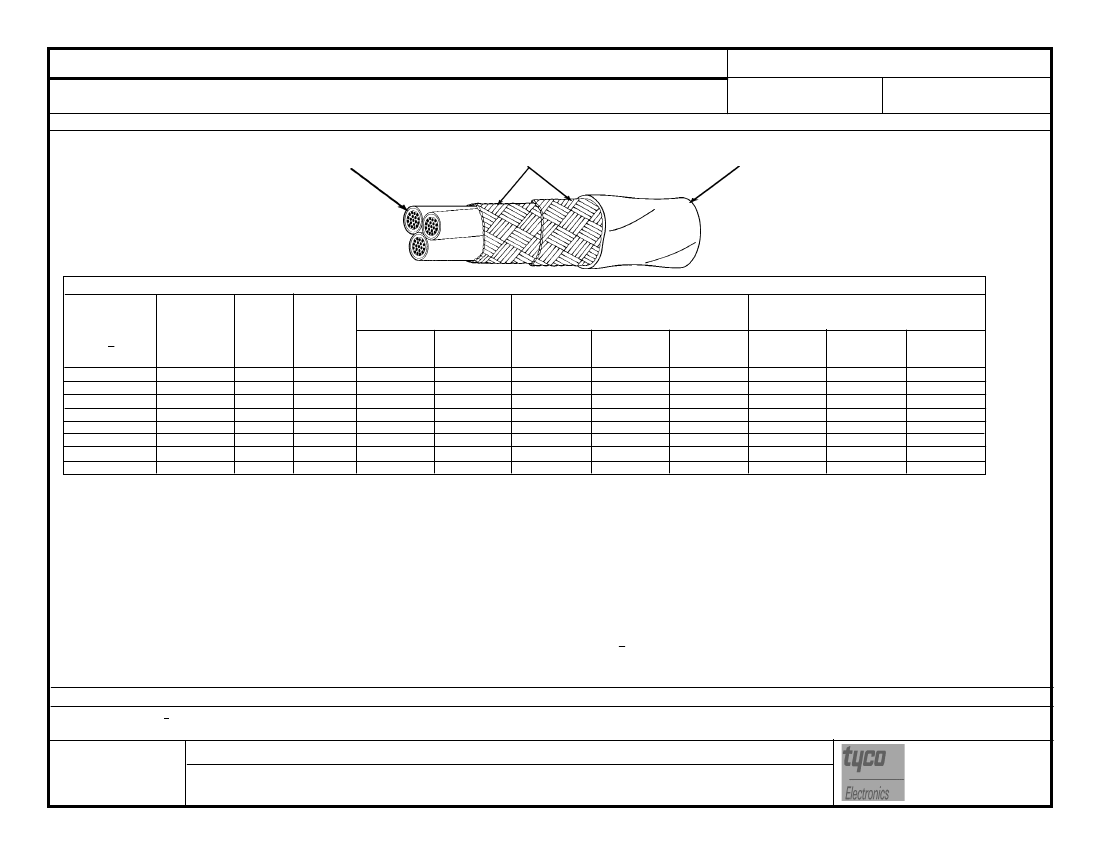

SPECIFICATION CONTROL DRAWING
TITLE
Date
55PC6279
Revision
THREE CONDUCTOR CABLE, DOUBLE SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55PC.
COMPONENT WIRES - 55PC0211
SHIELDS - TIN-COATED COPPER
11-1-06
C
JACKET - RADIATION-CROSSLINKED,
MODIFIED ETFE
CONSTRUCTION DETAILS
CONDUCTOR
PART NUMBER
SIZE
1/
(AWG)
55PC6279-22-*
55PC6279-20-*
55PC6279-18-*
55PC6279-16-*
55PC6279-14-*
55PC6279-12-*
55PC6279-10-*
55PC6279- 8-*
22
20
18
16
14
12
10
8
INNER
SHIELD
SIZE
(AWG)
38
38
38
38
38
38
36
36
OUTER
SHIELD
SIZE
(AWG)
38
38
38
38
38
38
36
34
JACKET THICKNESS
(in.)
LOWER SPEC
LIMIT
.0060
.0060
.0060
.0060
.0070
.0070
.0080
.0080
TARGET
WALL
.0075
.0080
.0080
.0080
.0080
.0085
.0090
.0090
LOWER SPEC
LIMIT
.136
.158
.175
.189
.223
.261
.320
.467
DIAMETER
( in.)
TARGET
VALUE
.146
.167
.185
.201
.235
.275
.336
.488
UPPER SPEC
LIMIT
.154
.174
.194
.210
.244
.286
.350
.506
WEIGHT
( lbs/1000 ft. )
LOWER SPEC
LIMIT
21.45
28.10
37.00
44.18
61.42
86.73
128.60
228.75
TARGET
VALUE
23.64
29.38
38.37
45.81
63.33
88.26
136.90
243.08
UPPER SPEC
LIMIT
27.17
31.10
40.10
48.19
66.25
94.11
145.10
256.66
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
CROSSLINK VERIFICATION: 300 ± 3°C for 1 hour
JACKET COLOR: White preferred
JACKET ELONGATION AND TENSILE STRENGTH:
Elongation, 50% (minimum)
Tensile Strength, 5000 lbf/in² (minimum)
JACKET FLAWS:
Spark Test, 2500 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
SHIELD COVERAGE: 85% (minimum) (each)
VOLTAGE WITHSTAND TEST (Post Environmental):
1000 volts (rms), 60 Hz, 1 minute
PART NUMBER:
The "*" in the part numbers above shall be replaced by color code designators
with a slash separating the component wire colors and a dash separating the
component wire colors from the jacket color. Colors shown do not necessarily
reflect the sequence of manufacturing.
1/ Example: AWG 22, black, brown and red component wires; white jacket:
55PC6279-22-0/1/2-9
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL
R
Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
Page 1 of 1
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
