UPD78234GC datasheet, PDF - EEWORLD Datasheet

UPD78234GC: Description8-BIT, MROM, 12MHz, MICROCONTROLLER, PQFP80, PLASTIC, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，48 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

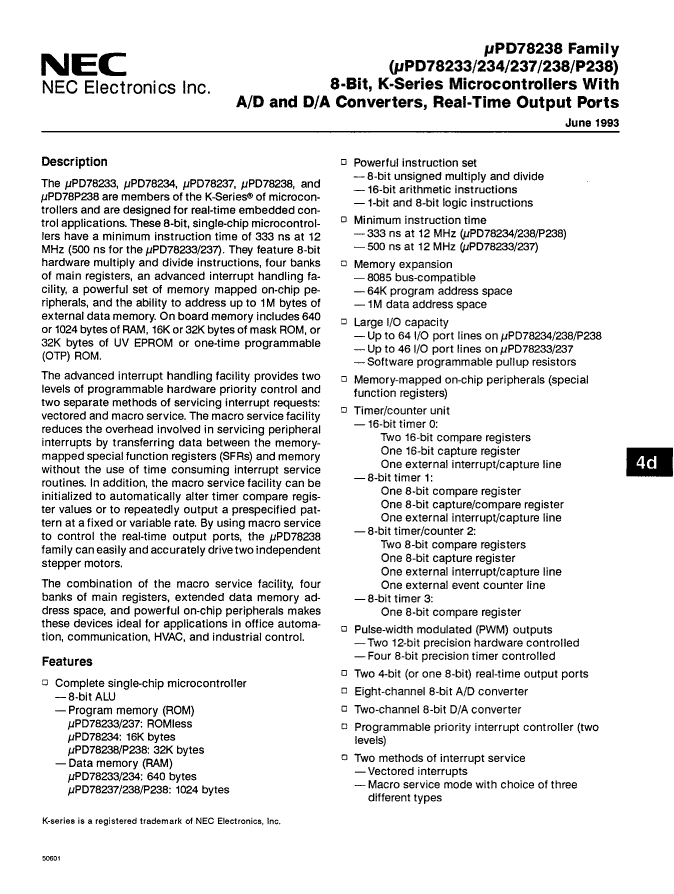

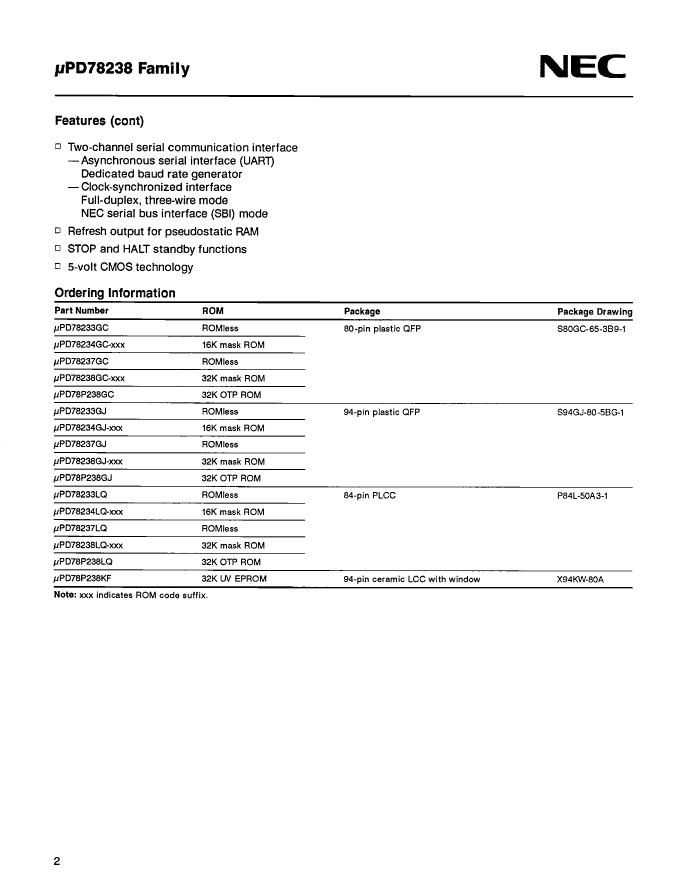

UPD78234GC Overview

8-BIT, MROM, 12MHz, MICROCONTROLLER, PQFP80, PLASTIC, QFP-80

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Renesas Electronics Corporation
Parts packaging code	QFP
package instruction	QFP,

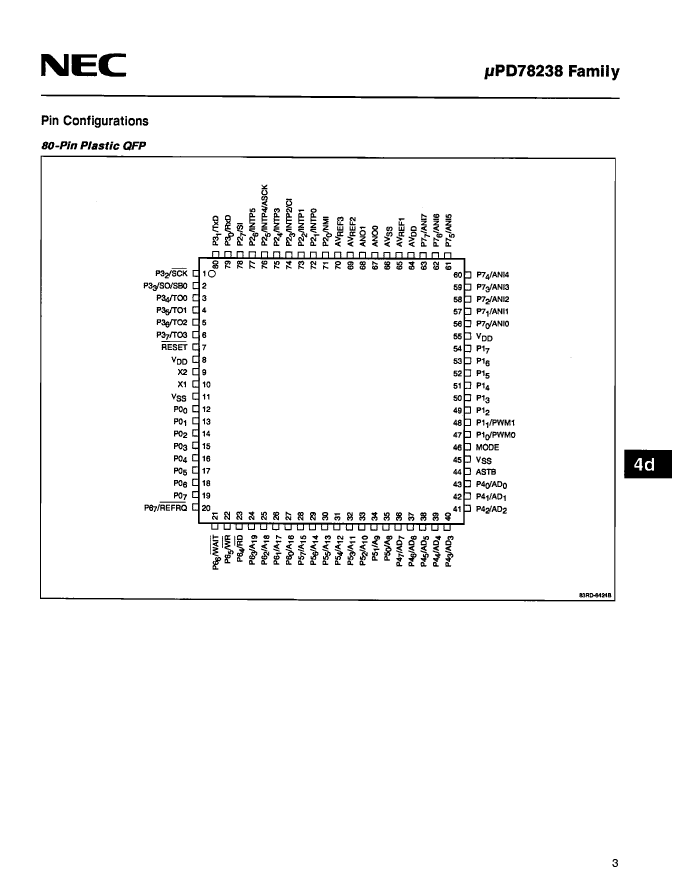

Contacts	80
Reach Compliance Code	unknown
Has ADC	YES
Other features	2.5V DATA RETENTION; REFRESH SIGNAL FOR PSEUDOSTATIC RAM
Address bus width	20
bit size	8
boundary scan	NO
maximum clock frequency	12 MHz
DAC channel	YES
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G80
JESD-609 code	e0
length	14 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	7
Number of I/O lines	64
Number of serial I/Os	2
Number of terminals	80
Number of timers	4
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	640
rom(word)	16384
ROM programmability	MROM
Maximum seat height	3 mm
speed	12 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
