85003-9007 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > 85003-9007

Preview

85003-9007: Description2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole 0.80楼矛m (32楼矛") Selective Gold (Au) Plating, 64 Circuits, without Mounting Clips, No Flux; File Size67KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

85003-9007 Overview

2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole 0.80楼矛m (32楼矛") Selective Gold (Au) Plating, 64 Circuits, without Mounting Clips, No Flux

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0850039007

Active

din_41612

2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole,

0.80µm (32µ") Selective Gold (Au) Plating, 64 Circuits, without Mounting Clips, No Flux

Proof, Lead free

Documents:

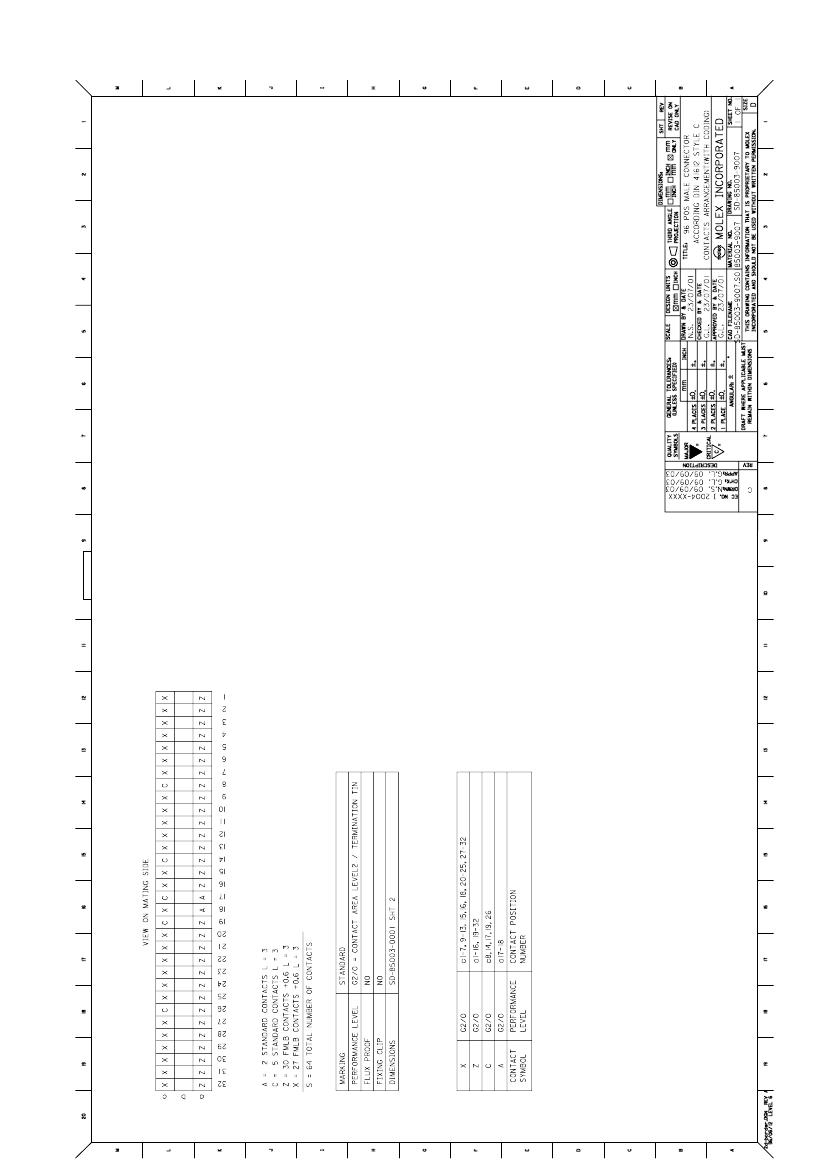

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Agency Certification

CSA

UL

LR19980

E29179

Email pro

For a mu

Complian

General

Product Family

Series

Application

Comments

Backplane Connectors

85003

Backplane

No Mounting Clips. No Flux Proof. 5.4mm(.213") First-

Mate-Last-BreakContacts. 4.8mm(.189") Normal

Contacts

PCB Header

din_41612

IEC 603-2/DIN 41612

C

Please vi

non-prod

Component Type

Overview

Product Name

Style

Search

85003S

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

64

96

Standard Contacts at: A:a17-a18;

C:c8,c14,c17,c19,c26. First-Mate- Last-Break Contacts

at: X:c1-c7,c9-c13,c15,c16,c18,c20-c25,c27-c32; Z:a1-

a16,a19-a32

Gray

400

Yes

94V-0

No

Yes

Brass

Gold

Tin

Polyester

16

Open Pin Field

3

Right Angle

0.118 In

3.00 mm

No

Yes

0.062 In

1.60 mm

Carton

0.100 In

2.54 mm

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)
