85719-0003

Description
HyperJack垄芒 1000 PoE+ PSE Integrated Connector Module, 2x6, Without LEDs
File Size450KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

85719-0003 Overview

HyperJack垄芒 1000 PoE+ PSE Integrated Connector Module, 2x6, Without LEDs

This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

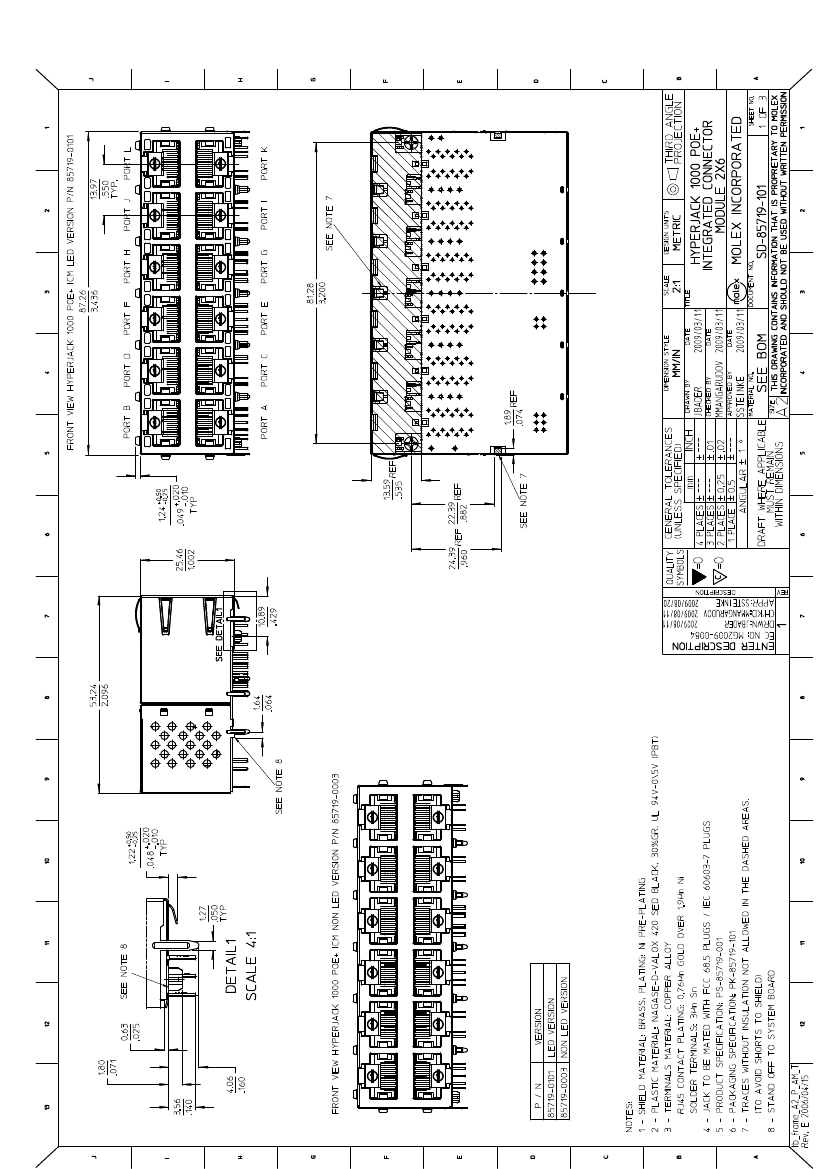

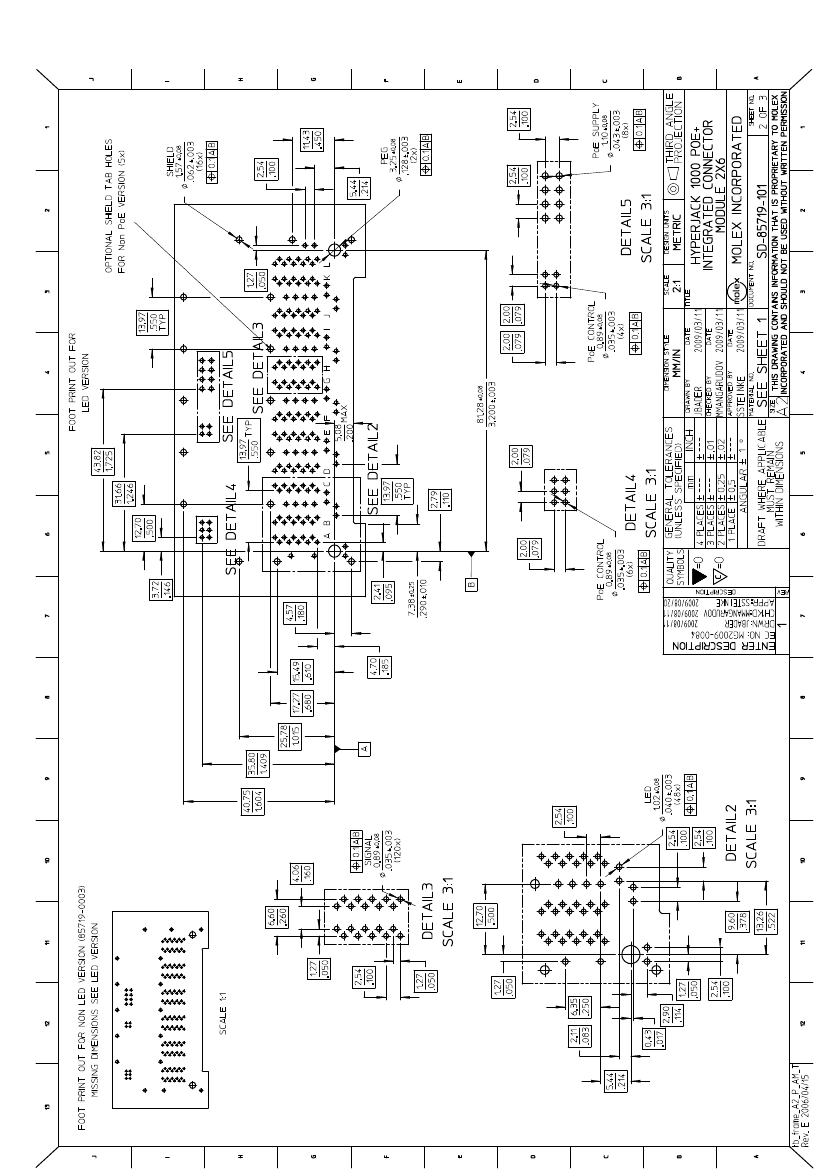

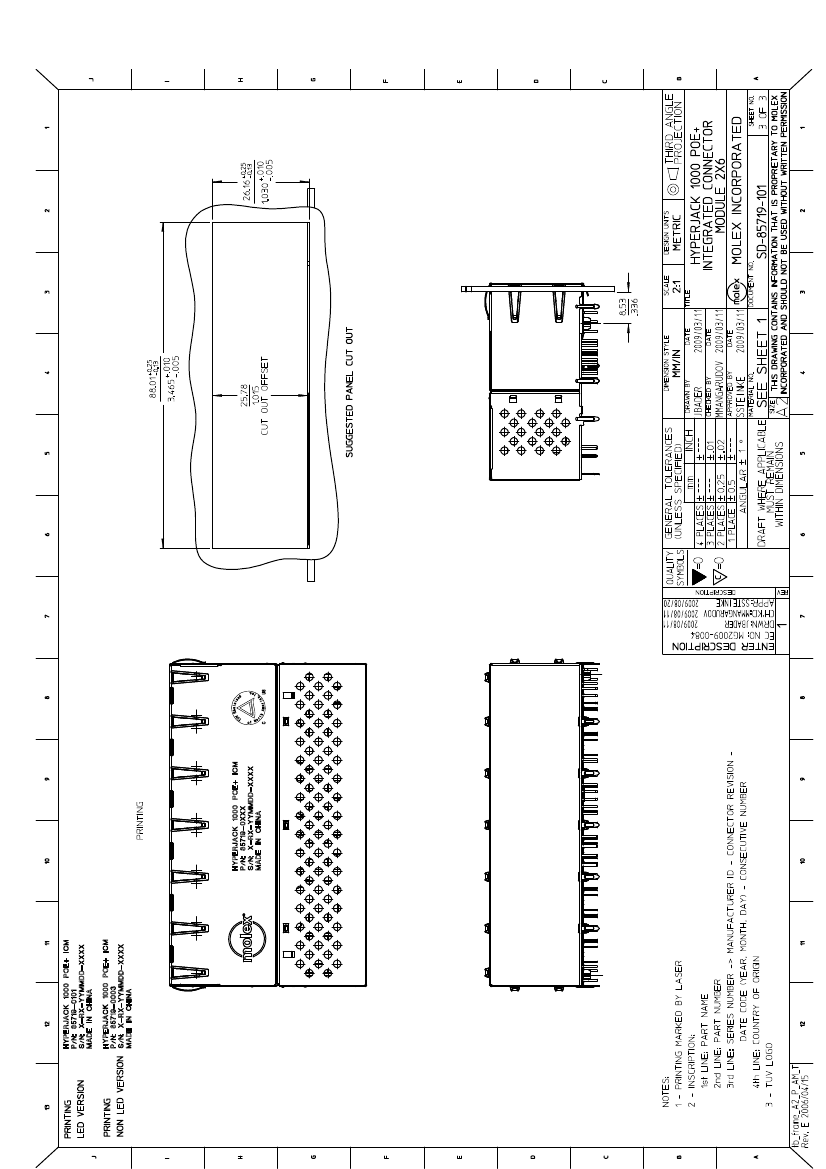

Drawing (PDF)
0857190003
Active
magnetic_modular_jacks
HyperJack™ 1000 PoE+ PSE Integrated Connector Module, 2x6, Without LEDs
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
Magnetic
More Detailed Tech Information
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
Modular Jacks/Plugs
85719
PCB Jack
Yes
*For product specifications please contact your Molex
sales representative
magnetic_modular_jacks
5e
PoE+
HyperJack™PoE
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Inverted / Top Latch
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
N/A
Black
750
Yes
None
Brass, Copper Alloy
Gold
Tin
Thermoplastic Polyurethane
Right Angle (Side Entry)
Yes
Yes
Tray
0.040 In
1.02 mm
0.040 In
1.02 mm
30
0.76
50.8
1.27
12
8/8
No
0°C to +70°C
Through Hole
No
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
85719S
Mates
Plugs a
Electrical
Current - Maximum per Contact
Grounding to PCB
Grounding to Panel
Shielded
1.5A
Yes
Yes
Yes
