CRS-02-LPA-76-A-SG10: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CRS-02-LPA-76-A-SG10 Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

CRS-02-LPA-76-A-SG10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.169 inch
body length	1.915 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	250 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	CRS
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	76

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Plating:

Contact Resistance:

Insulator Material:

Insulator Resistance:

Withstanding:

Operating Temp:

D

1 Amp

Phosphor Bronze

Gold Flash standard

see options

20 m ohms Max.

Polyester, UL94V-0

1000 Megohms min.

AC 300V

-40ºC ~ +105ºC

C

D

E

Series

Rows

CRS

XX

Receptacle Strip

01=Single

.05” x .05”

02=Double

(1.27mm x 1.27mm)

Profile

Positions

LPA

XX

LPA=4.3mm

Single row 1-40

Others available Double row 4-100

Tail

A

A=Standard

(2.4mm)

Plating

XX

TN=Tin

SGXX=Selective Gold

GDXX=Gold

XX=Flash if blank,

10,15,30u”

Options

XX

Blank=none

SM=Surface mount

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

F

Date

06/29/05

06/29/05 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CRS-02-LPA-XX-A-XX-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

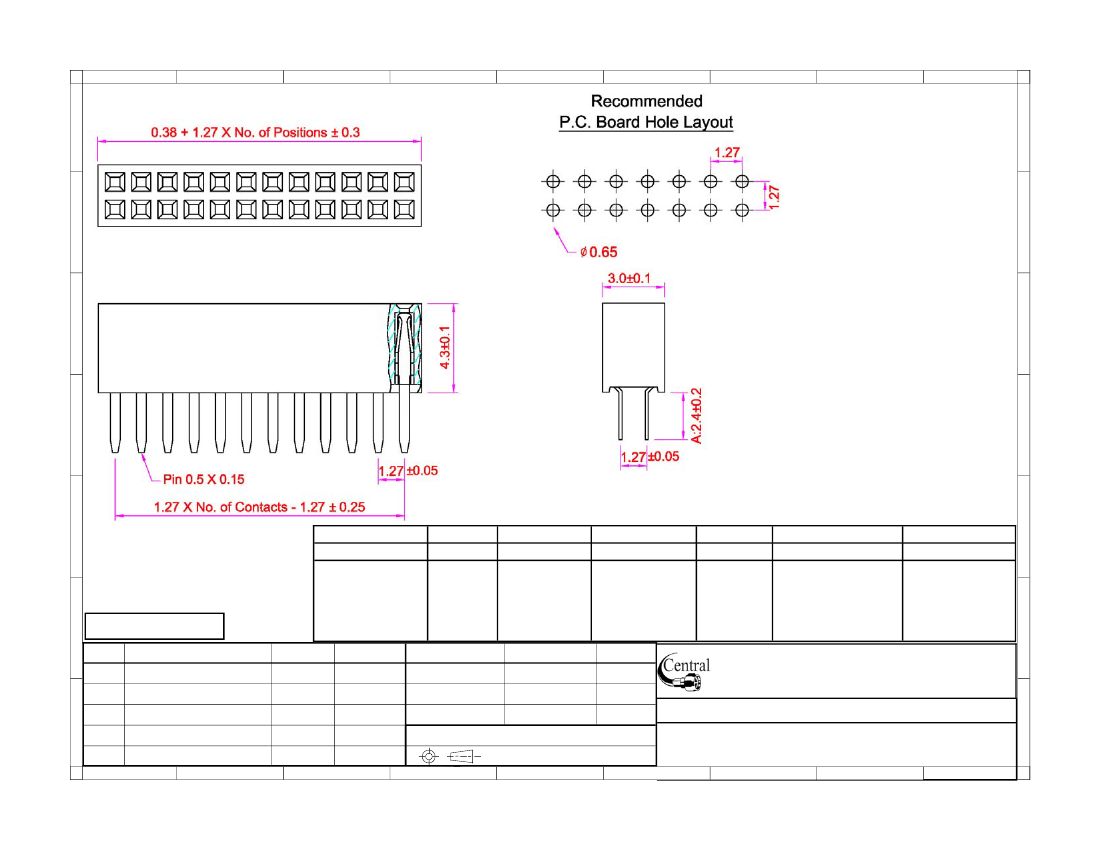

Description: Female Header P:1.27 x 1.27mm, 4.3mm, Dual Row,

Straight Type
