Part Number:
Status:
Overview:
Description:
0014445217
Active
C-Grid® / SL™ Products
2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Male, Single
Row, Version D, Back Ribs, for Wire Size 22, 3.81µm (150µ") Tin (Sn), 17 Circuits
Documents:
3D Model

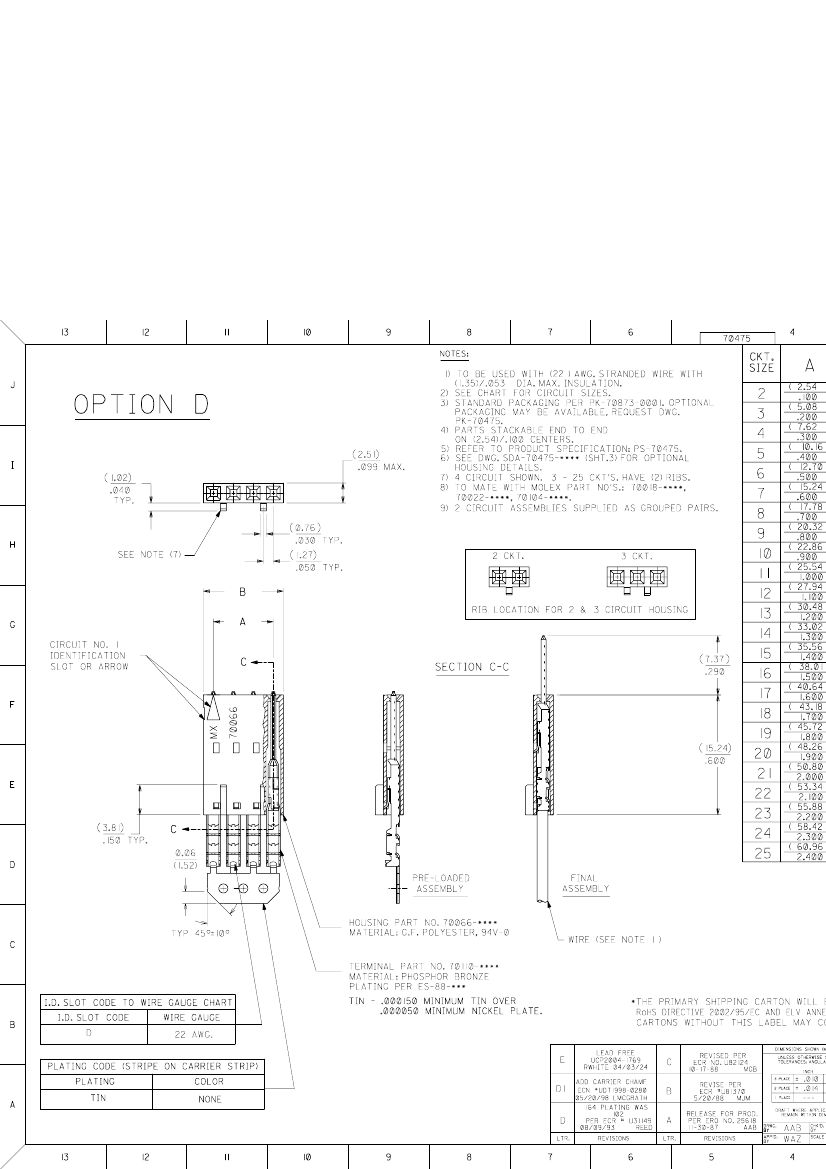

Drawing (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Overview
Product Name
Ribbon Cable / Wire Trap Connectors
70475
Terminals Preloaded
Housing
No
C-Grid® / SL™ Products
SL™
EU RoHS
Complia
Not Revi
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
17
25
Vertical
94V-0
None
1
None
Tube
0.100 In
2.54 mm
No
Yes
N/A
-40°C to +105°C
1.35mm (.053") max.
22
Discrete Wire, Ribbon Cable
Email pro
For a mu
Complian
Please vi
non-prod
Search
70475S
Mates
70004
Interim
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Use W
7307 T
28AWG
Topcoa
8997 T
26AWG
Material Info
Reference - Drawing Numbers
Product Specification
PS-70400
