1120260013
Active
Connect Profibus to Modbus Serial devices
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Approvals
Comments
Communication Speed
Mounting Style
Product Name
Protocol
Type
Network Interface
112034
CE
Profibus. - DP Slave. . Serial:. - Modbus Master/Slave
(ASCII/RTU). - Free Send/Rec (ASCII/RTU)
Profibus: 9.6 kbps to 12 Mbps, Serial: 600 to 57,600 bps
DIN Rail
Direct-Link®
Profibus*, Serial
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Physical
Channels
Interface
Network Connection Type
Packaging Type
Processor
Temperature Range - Operating
1
Profibus* - Serial
Profibus* D-Sub Female (9 pin), Serial: Screw Terminal
Carton
N/A
0°C to +55°C
Search
112034
Electrical
EMC
Supply Voltage
N/A
24V
Material Info
Old Part Number
DRL-DPS-SRM
Reference - Drawing Numbers
Sales Drawing
SD-112026-0013
This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
.

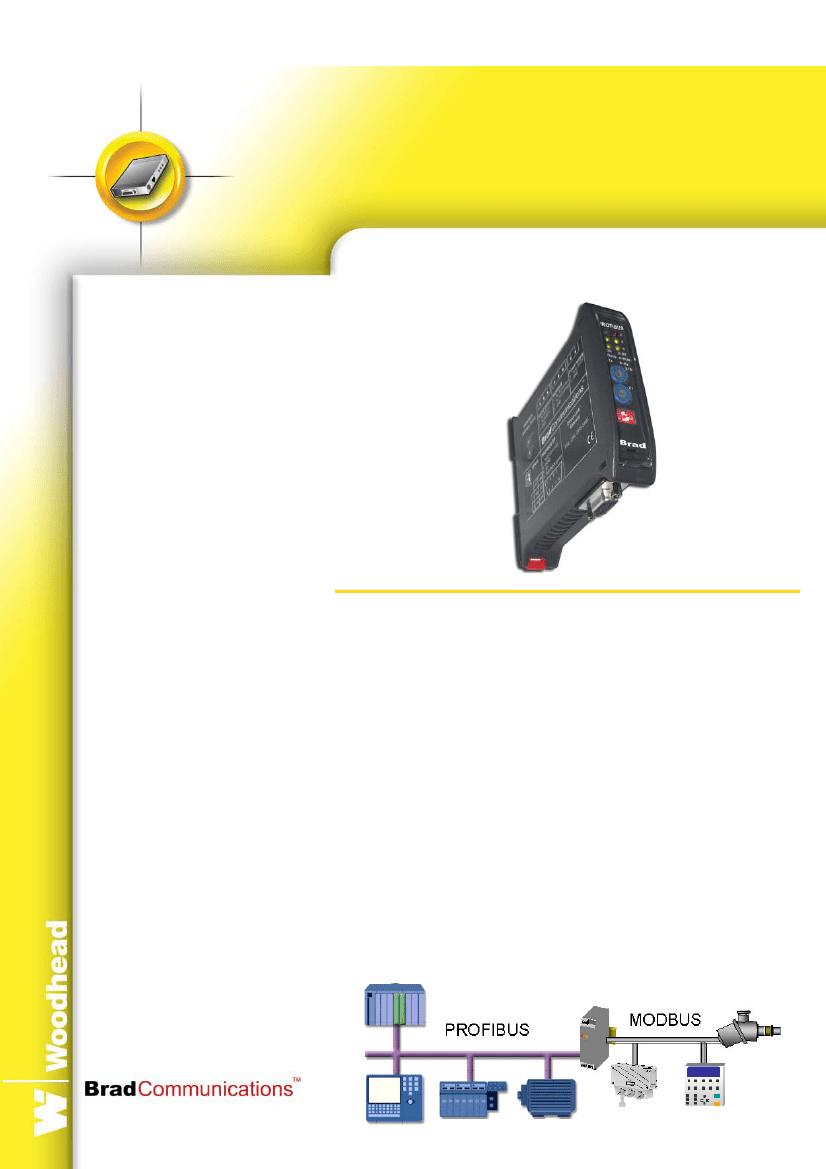

The BradCommunications
™
Direct-Link
™
gateway for
PROFIBUS provides a quick and cost effective
connection between controller and field devices used on
different industrial networks.
PROFIBUS Gateway
Features
•
•
•
•
•
•
PROFIBUS-DP V0 Slave to Modbus
Serial protocol conversion
Modbus Master or Slave RTU/ASCII
Manages up to 20 Modbus Slaves
Easy-to-use configuration by GSD
file (no configuration tool needed)
Rotary switches for PROFIBUS
Address
Automatic reconfiguration after
replacement by the PROFIBUS
Master (Set_Param command)
Serial RS232 or RS485 switch
selectable
Full diagnostic through LEDs,
dedicated RS232 port and
Slave_Diag information
Up to 244 Input bytes and 244
Output bytes on PROFIBUS
Up to 20 Modbus Read and Write
commands with Cyclic, Change of
State or once triggers
DIN rail mounting, IP20
Connect PROFIBUS to Modbus Serial devices
•
•
Product Description
The BradCommunications
™
Direct-Link
™
gateway for PROFIBUS is built to enable
the quick and cost effective connection of any Modbus device to a PROFIBUS-DP
fieldbus. It is well suited for simple network extensions or the integration of legacy
devices such as in the machine tool industry.
The BradCommunications Direct-Link gateway can act as a PROFIBUS-DP Slave
on one side, and a MODBUS Master or Slave on the other side.
The gateway is built into the system without any lines of code. All parameters are
set in a very user friendly way, via the usual PROFIBUS configuration tool. All the
parameters are sent to the gateway automatically by the PROFIBUS Master at each
network initialisation, permitting the replacement of the gateway without any
configuration action.
Moreover, the Direct-Link gateway for PROFIBUS can drive up to 20 Modbus
Slaves. It can exchange up to 244 bytes of inputs, and 244 bytes of outputs on
PROFIBUS .
To complete the pre-defined Modbus commands, a “Pass Frame” mode is
implemented to allow the composition of the Modbus commands directly from the
PROFIBUS-DP buffer.
A standard Sub-DB9 Female connector provides the PROFIBUS interface and Plug
Screw Terminal for Serial interface and Power Supply.
•
•
•
Typical Applications
•
•
•
Connecting Serial devices to
PROFIBUS networks
Integration of legacy devices such
as in the machine tool industry
Well suited for simple network
extensions
PROFIBUS Gateway
Software Tools

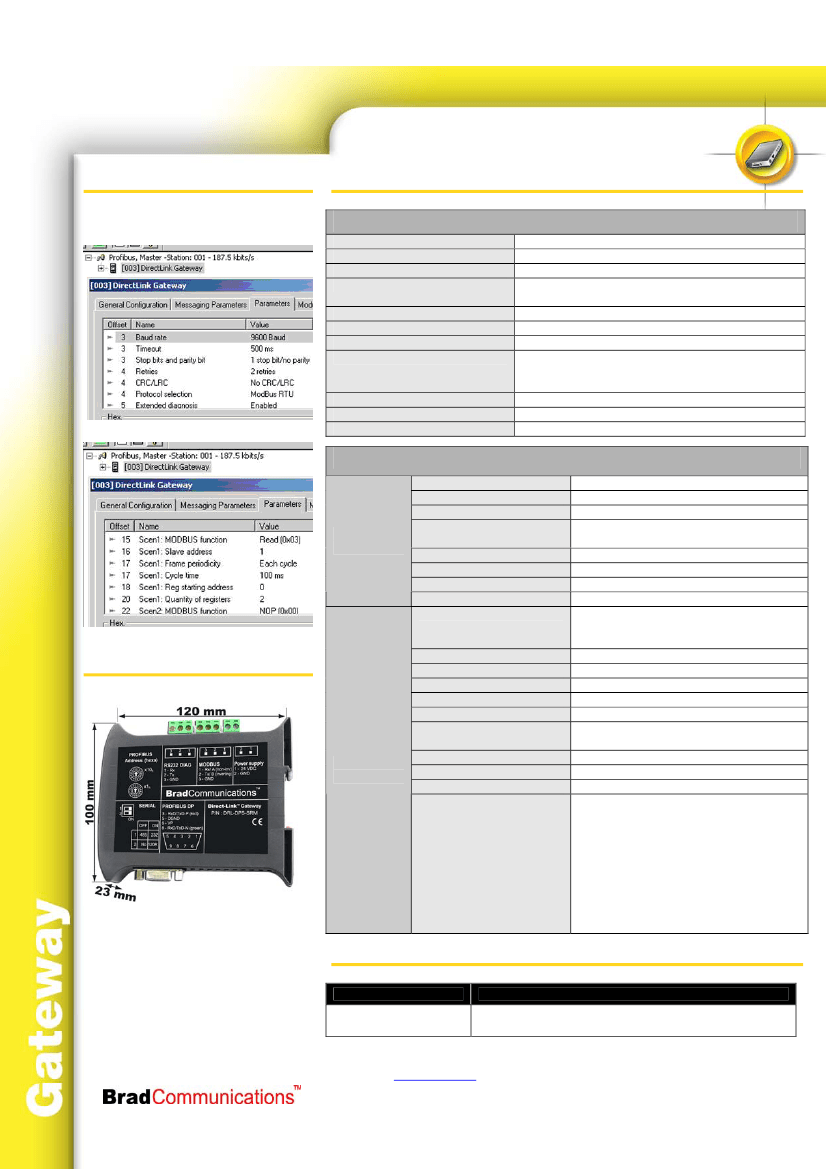

Example of configuration through the
configuration tool of the PROFIBUS Master:
Hardware and Network Specifications
Physical Characteristics
Case
Size
Weight
Temperature
Humidity
Ingress Protection
Power Supply
Indicator (6 LEDs)
Modbus Parameters
Protection Polarity inversion
Protection Short-circuits
CE Compliance
Communication Ports
Baud rate
Connector
Address setting
Diagnostic
Plastic case for rail DIN
120 x 100 x 23 mm
~ 100g
Operating:
0°C to +55°C
Non-operating:
-25°C to +70°C
Max. 80%
IP20
24V DC (1.5W)
1 - Power ON
4 - RUN
2 - Bus failed
5 - TxD Modbus
3 - Diagnostic
6 - RxD Modbus
Yes
Yes
Yes
PROFIBUS-
DP
Input/Output Bytes
Isolation
Technology
Others
Commissioning
Modbus Command
Dimensions
Modbus
Serial
Baud rate
Protocol
Nb of addressable Slaves
Nb of frames
Frame trigger
Nb of accessible registers
(Maximum of 150)
Connector
Switching RS232/485
Terminator Resistor
Implemented functions
9.6 kbps to 12 Mbps (auto-detection)
Sub-D9 female
2 hexadecimal rotary switches
27 bytes of extended diagnostic
(Slave_Diag)
0-244, maximum of 300
1 kV
ASIC
Sync, Freeze
Done from the PROFIBUS configuration
tool (via scroll down menus) by using
GSD parameters
0.6 to 57.6 Kbps
RTU and ASCII
20
1 to 20 different
Cyclic, on change, once
1-122 read registers
1-122 write registers
Open connector 3 contacts, male
Configurable by switch
120
Ω
by switch
3 - Multi register Read
4 - Multi register Read
5 - Single Boolean writing
6 - Single register Write
7 - Read Status
16 - Multi register Write
23 - Multi register Read/Write (Slave
mode only)
Other – Open command through Pass
Frame mechanism
Ordering Information
CR Rom with detailed user documentation in
French and English languages and the GSD
file are included in delivery.
Part Number
DRL-DPS-SRM
Description
BradCommunications™ Direct-Link™ PROFIBUS to Modbus
Serial Gateway
Contact us:
www.woodhead.com
Reference Number: DW2005118
Date published: June 2006
from Woodhead Industries
North America:
US + 1-800-2257724 -Canada, +1 519 725 5136
Europe:
France, +33 2 32 96 04 20 – Germany, +49 711 78 23 74-0 – Italy, +39 010 59 30 77 –
United Kingdom, +44 1495 356300
Asia:
China, +86 21 5835-9885 – Singapore, +65 6261-6533 – Japan, +81 3 5791 4621
BradCommunications™, and Direct-Link™ are trademarks of Woodhead Industries, Inc.
© 2006 Woodhead Industries, a division of Molex Incorporated
