8805279300: DescriptionDry Reed Relay, DPST, Momentary, 0.071A (Coil), 5VDC (Coil), 357mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size69KB，1 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

8805279300 Overview

Dry Reed Relay, DPST, Momentary, 0.071A (Coil), 5VDC (Coil), 357mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

8805279300 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	12.6 mm
body height	10 mm
Body length or diameter	33 mm
Maximum coil current (DC)	0.071 A
Coil operating voltage (DC)	3.5 V
Coil power	357 mW
Coil release voltage (DC)	0.5 V
Coil resistance	77 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@1000VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@1000VDC
Maximum contact voltage (AC)	1000 V
Maximum contact voltage (DC)	1000 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	8805279300
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.8 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	33mm x 12.6mm x 10mm
Relay action	MOMENTARY
Relay function	DPST
Relay type	DRY REED RELAY
release time	0.4 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

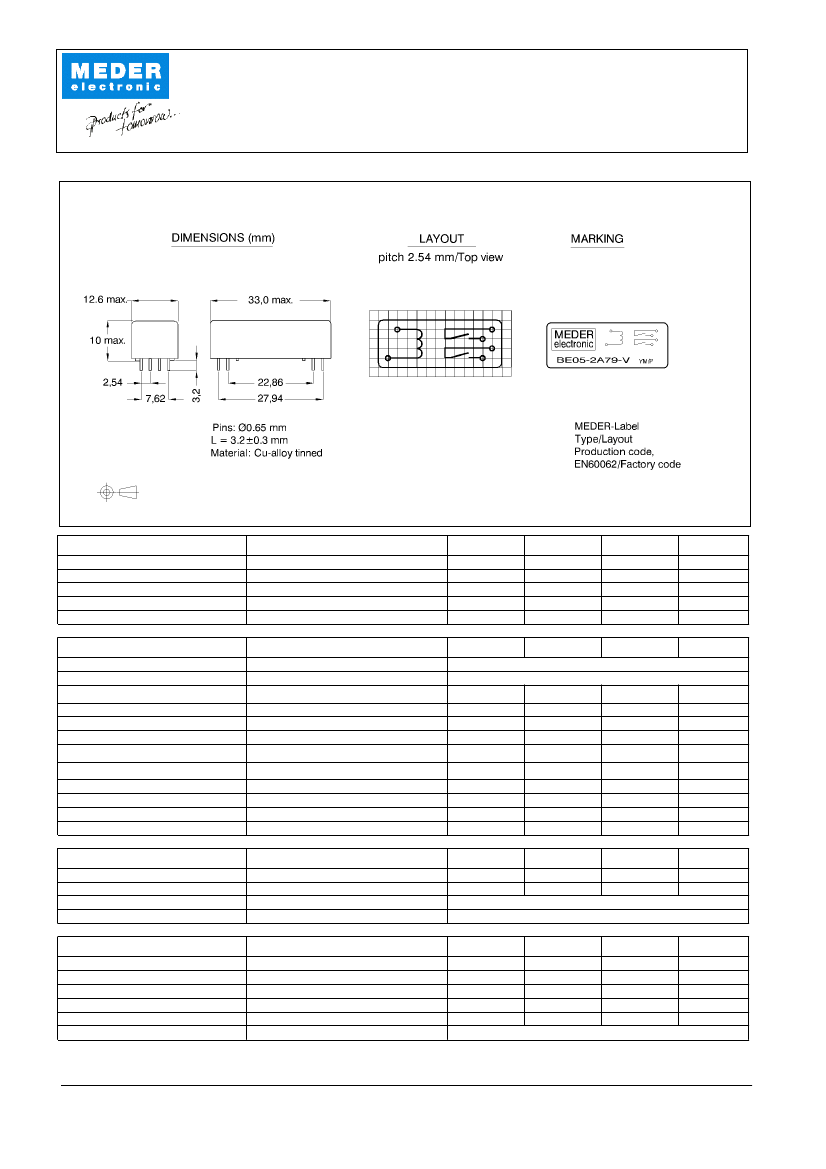

Item No.:

8805279300

Item:

BE05-2A79-V

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 79

Contact-form

Contact-material

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Contact resistance dynamic

Insulation resistance

Breakdown voltage (20-25 AT)

Operate time incl. bounce

Release time

Conditions

Min

Typ

Rhodium

Max

Unit

not to exceed their individual max.'s

DC or Peak AC

! " # $ % & !"! &

Start Value

& (

! '

Start Value

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

)

Special Product Data

Insulation resistance Coil/Contact

Insulation voltage Coil/Contact

Housing material

Sealing compound

Conditions

RH <45%, 200 VDC test voltage

according to IEC 255-5

Min

Typ

Max

Unit

)

Polycarbonat

Polyurethan

Environmental data

Shock

Vibration

Ambient temperature

Storage temperature

Soldering temperature

Cleaning

Conditions

1/2 sine wave duration 11ms

from 10 - 2000 Hz

Min

Typ

Max

Unit

wave soldering max. 5 sec

fully sealed

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

18.05.06

Last Change by:

WKOVACS

Approval at:

21.10.08

Approval by:

RUDI RIPPL

KOLBRICH

Version:
