14-56-3233 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 14-56-3233

14-56-3233: Description23 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size158KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

14-56-3233 Overview

23 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

14-56-3233 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SL, POLARIZED
body width	0.259 inch
subject depth	0.6 inch
body length	2.399 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70400
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	23
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0014563233

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,

Single Row, Version G, Positive Lock, Wire Size 28, 0.76µm (30µ") Gold (Au), 23

Circuits

Documents:

3D Model

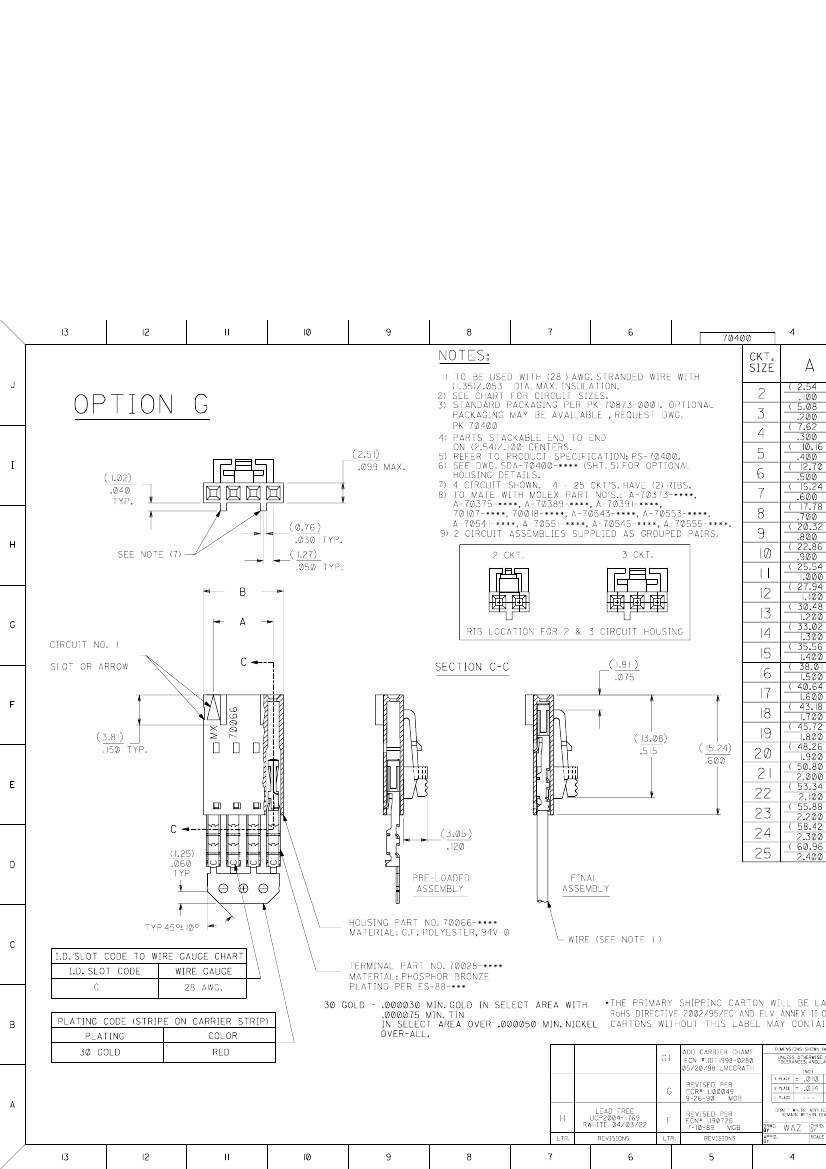

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

cgrid__sl_products

SL™

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

Yes

Phosphor Bronze

Gold

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

0.75

1.875

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Email pro

For a mu

Complian

Please vi

non-prod

70400S

Mates

70018

70555

Use W

7307 T

28AWG

Topcoa

8997 T

26AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Hawk S

Automa

14-56-3233 Related Products

	14-56-3233	0014563233	A-70400-1562
Description	23 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	23 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	23 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
Reach Compliance Code	unknow	unknown	-
ECCN code	EAR99	EAR99	-
Other features	SL, POLARIZED	POLARIZED	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	AU	GOLD	-
Contact completed and terminated	GOLD	Tin (Sn)	-
Contact point gender	FEMALE	FEMALE	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
DIN compliance	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
MIL compliance	NO	NO	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	NO	NO	-
Installation type	CABLE	CABLE	-
Number of rows loaded	1	1	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Termination type	IDC	IDC	-
Total number of contacts	23	23	-
UL Flammability Code	94V-0	94V-0	-
Base Number Matches	1	1	-
