705-63-0050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 705-63-0050

705-63-0050: Description16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size212KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

705-63-0050 Overview

16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

705-63-0050 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (150) OVER NICKEL (50)
Contact completed and terminated	TIN (150) OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	70563
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0705630050

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Header, Single Row, Vertical, .180" Pocket, Shrouded, 16

Circuits, Tin (Sn) Plating

Documents:

3D Model

Packaging Specification (PDF)

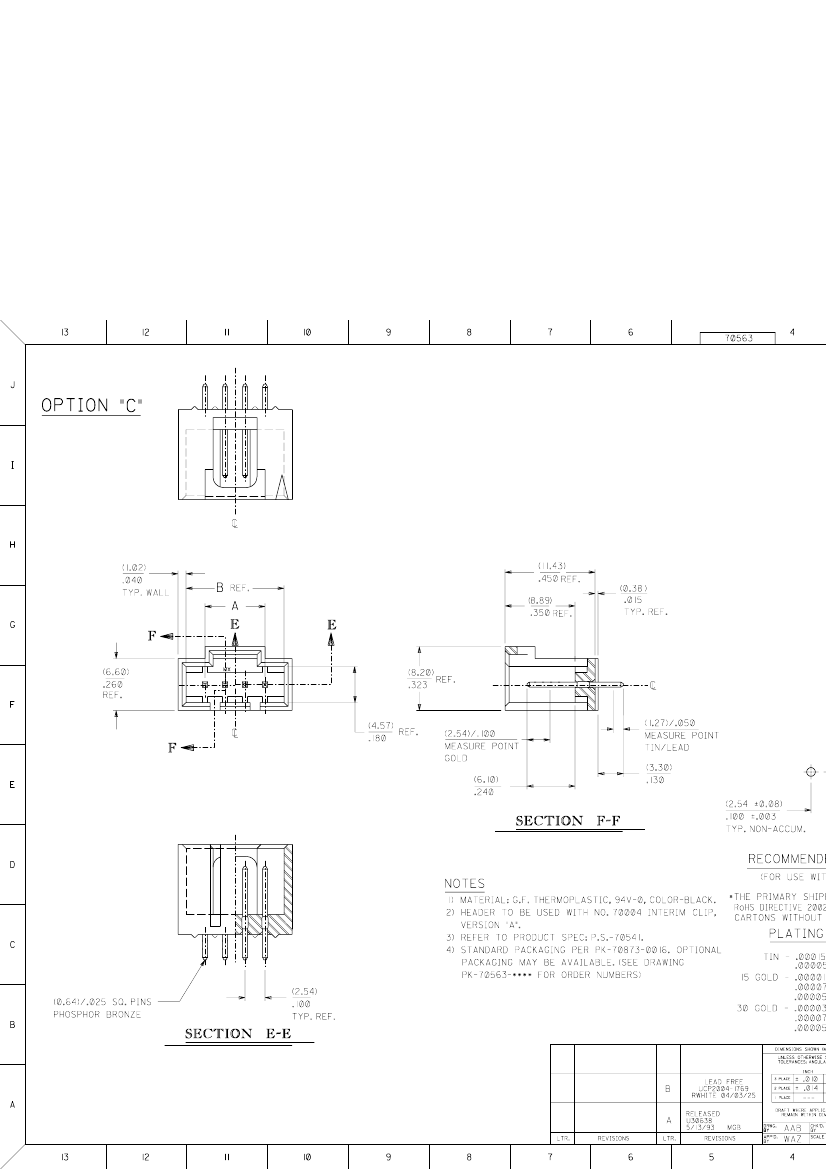

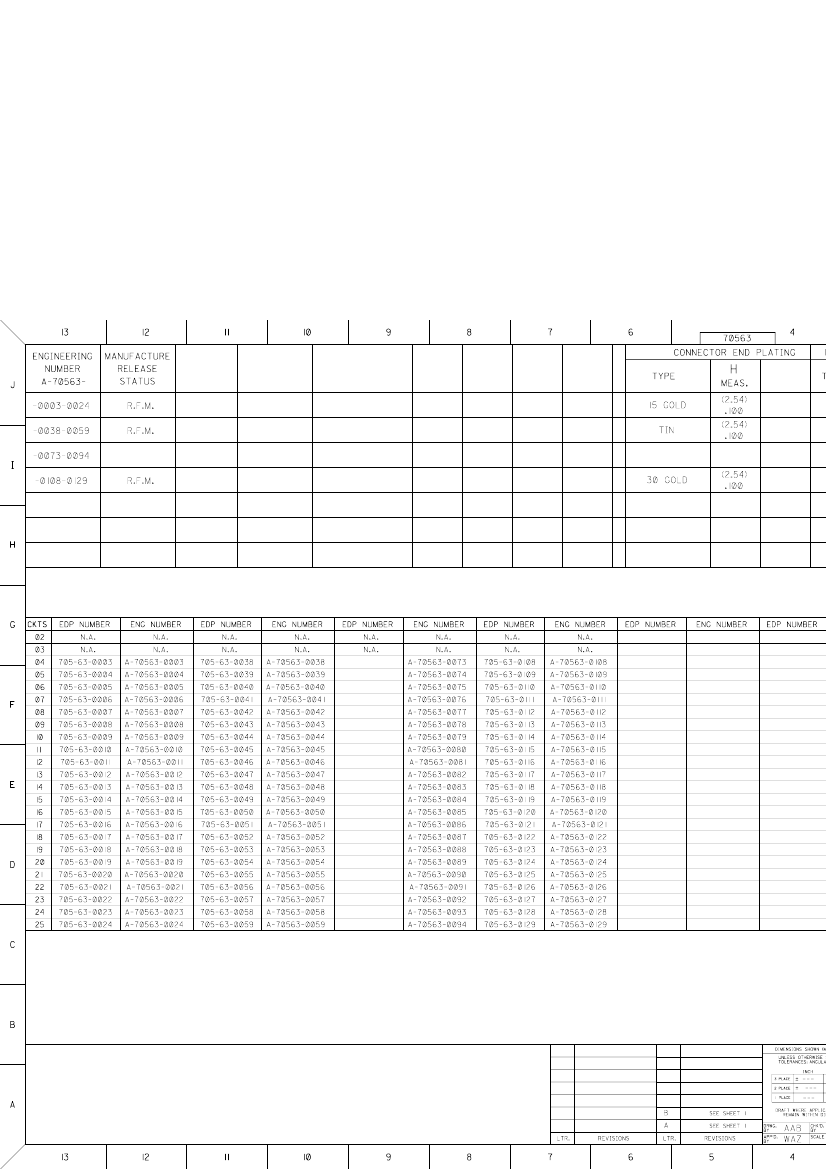

Drawing (PDF)

Product Specification PS-70400 (PDF)

Product Specification PS-70541 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

70563

Wire-to-Board

cgrid__sl_products

SL™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

Yes

Brass, Phosphor Bronze

Tin

High Temperature Thermoplastic

Vertical

0.130 In

3.30 mm

None

0.062 In

1.60 mm

Tube

0.100 In

2.54 mm

150

3.75

150

3.75

Yes

Fully

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

70563S

Mates

70004

705-63-0050 Related Products

	705-63-0050	A-70563-0050
Description	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
