B048G120T20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> B048G120T20

B048G120T20: DescriptionAnalog Circuit, 1 Func, Hybrid, MODULE, BGA-106; CategoryAnalog mixed-signal IC The signal circuit; File Size517KB，16 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric Compare View All

B048G120T20 Overview

Analog Circuit, 1 Func, Hybrid, MODULE, BGA-106

B048G120T20 Parametric

Parameter Name	Attribute value
Maker	VICOR
Parts packaging code	BGA
package instruction	,
Contacts	106
Reach Compliance Code	unknown
Other features	INPUT VOLTAGE RANGE IS 42V TO 53V
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-XXMA-X106
Number of functions	1
Number of terminals	106
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.2 V
Minimum supply voltage (Vsup)	4.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	HYBRID
Temperature level	AUTOMOTIVE
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED

Preview

Download Datasheet

View All

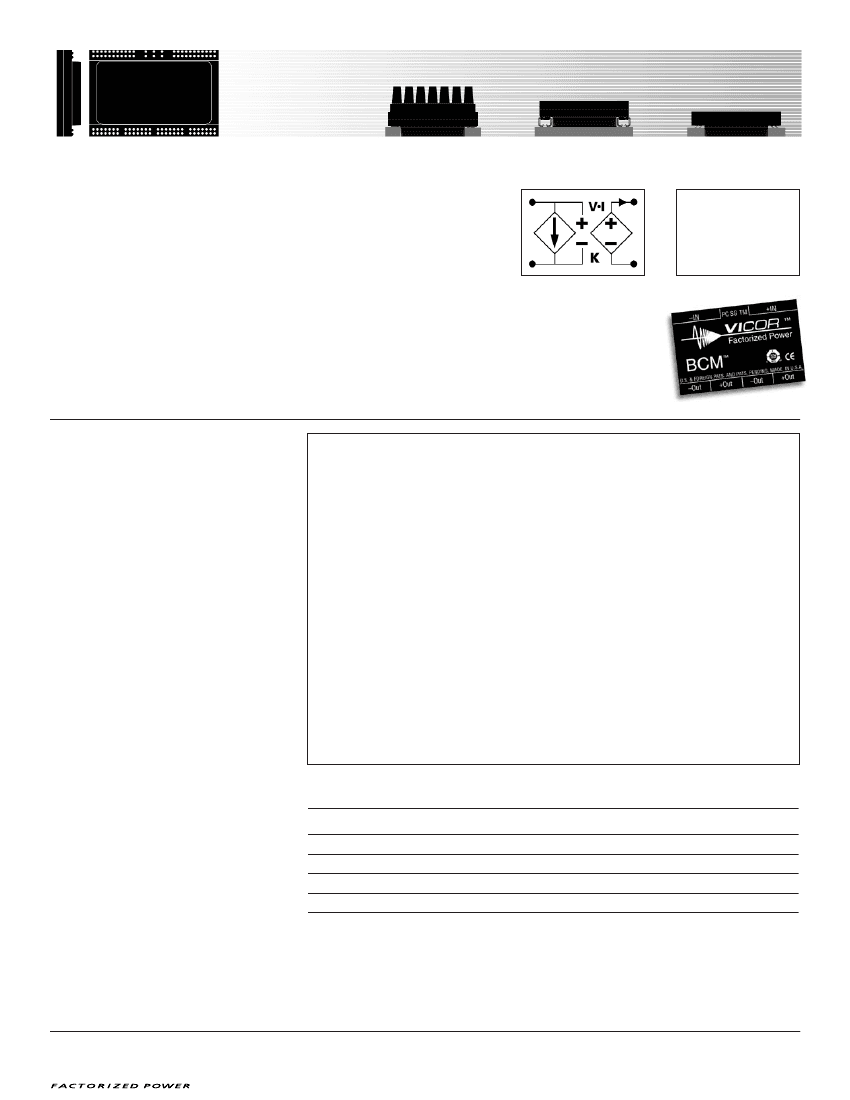

V•I Chip – BCM

Bus Converter Module

B048K120T20

• 48V to 12V V•I Chip Converter

• 200 Watt (300 Watt for 1 mS)

• High density – up to 800 W/in

• Small footprint – 200 W/in

• Low weight – 0.4 oz (12 g)

• Pick & Place / SMD

• >96% efficiency

• 125°C operation

• 1 µs transient response

• >3.5 million hours MTBF

• No output filtering required

• V•I Chip BGA package

Actual size

Vin = 42 - 53 V

Vout = 10.5 - 13.25 V

Iout = 17.0 A

K =

Rout = 25 mΩ max

Product Description

The V•I Chip Bus Converter Module

(BCM) is a high efficiency (>96%),

narrow input range Voltage

Transformation Module (VTM) operating

from a pre-regulated 48 Vdc primary bus

to deliver an isolated 12 V secondary for

Intermediate Bus Architecture

applications. The BCM may be used to

power non-isolated POL converters or as

an independent 12 V source. Due to the

fast response time and low noise of the

BCM, the need for limited life aluminum

electrolytic or tantalum capacitors at the

input of POL converters is reduced—or

eliminated—resulting in savings of board

area, materials and total system cost.

Absolute Maximum Ratings

Parameter

+In to -In

PC to -In

TM to -In

SG to -In

+Out to -Out

Isolation voltage

Operating junction temperature

Output current

Values

-1.0 to 60.0

100

-0.3 to 7.0

500

-0.5 to 15.0

1500

-40 to 125

17.0

Unit

Vdc

Notes

For 100 ms

Peak output current

The BCM achieves a power density of

800 W/in

and may be surface mounted

with a profile as low as 0.16" (4mm) over

the PCB. Its V•I Chip power BGA package

is compatible with on-board or in-board

surface mounting. The V•I Chip package

provides flexible thermal management

through its low Junction-to-Case and

Junction-to-BGA thermal resistance.

Owing to its high conversion efficiency

and safe operating temperature range, the

BCM does not require a discrete heat sink

in typical applications. It is also

compatible with heat sink options,

assuring low junction temperatures and

long life in the harshest environments.

θJC

θJB

θJA

Case temperature during reflow

Storage temperature

Output power

Peak output power

208

-40 to 150

200

300

Parameter

Junction-to-case

Junction-to-BGA

Junction-to-ambient

Vdc

°C

See note 2

Continuous

For 1 ms

°C

Continuous

For 1 ms

Typ

1.1

2.1

Max

1.5

2.5

Units

°C/W

Input to Output

Thermal Resistance

Symbol

6.5

5.0

7.2

5.5

Notes

1. For complete product matrix see chart on page 10.

2. The referenced junction is defined as the semiconductor having the highest temperature. This

temperature is monitored by the temperature monitor (TM) signal and by a shutdown comparator.

3. B048K120T20 surface mounted in-board to a 2" x 2" FR4 board, 8 oz Cu total, 300 LFM.

4. B048L120T20 (0.25"H integral Pin Fins) surface mounted on FR4 board, 300 LFM.

Vicor Corporation

Tel: 800-735-6200

vicorpower.com

V•I Chip Bus Converter

B048K120T20

Rev. 1.7

Page 1 of 16

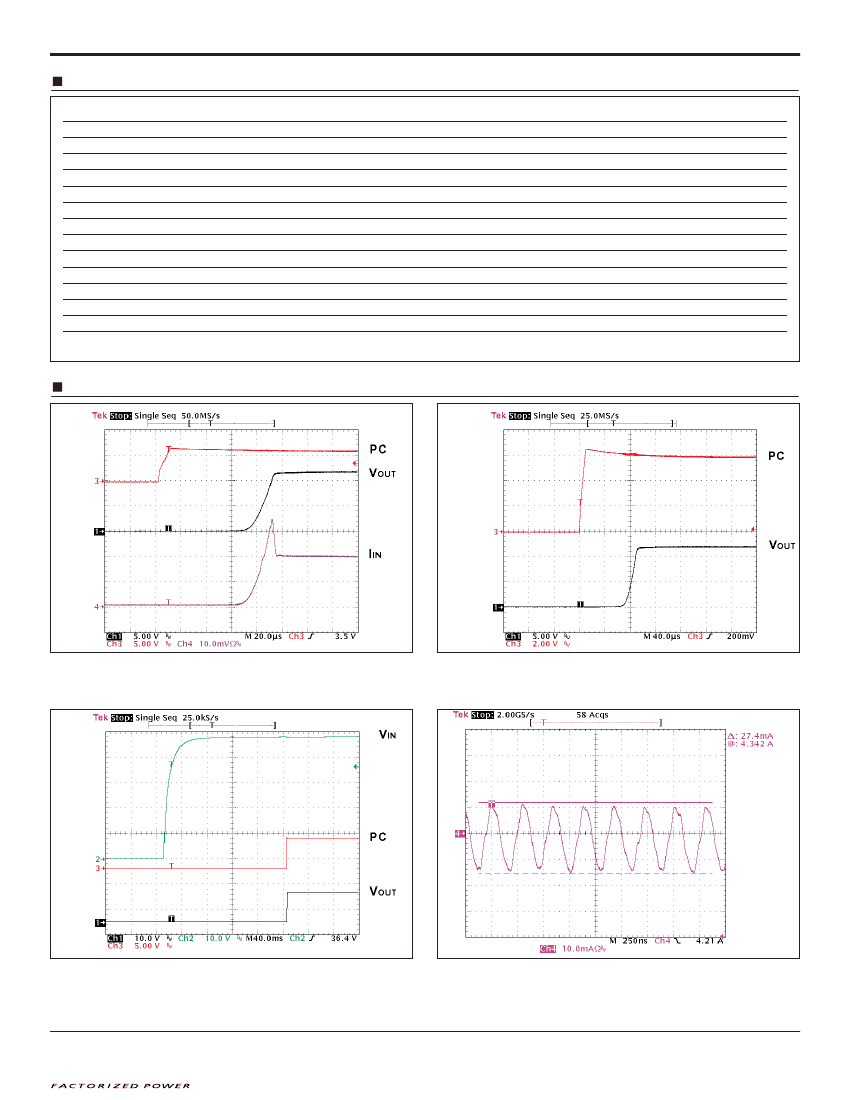

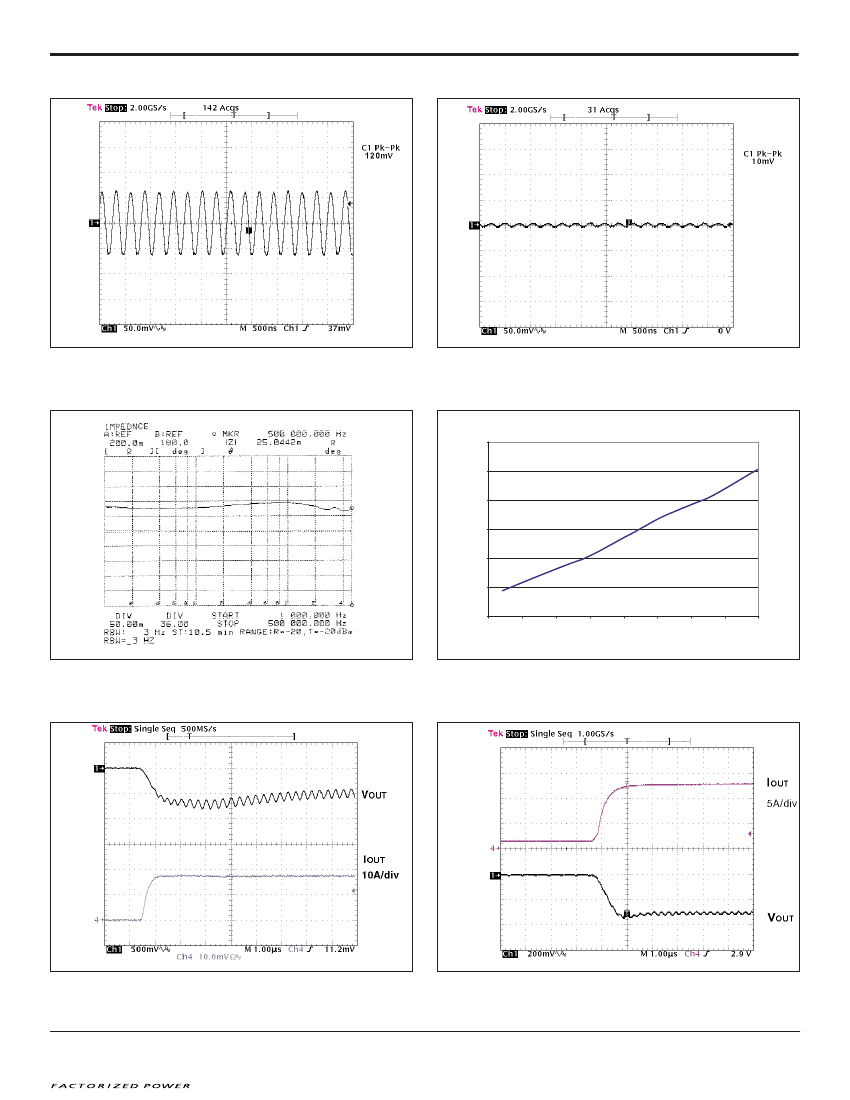

B048G120T20 Related Products

	B048G120T20	B048L120T20
Description	Analog Circuit, 1 Func, Hybrid, MODULE, BGA-106	Analog Circuit, 1 Func, Hybrid, MODULE, BGA-106
Maker	VICOR	VICOR
Parts packaging code	BGA	BGA
Contacts	106	106
Reach Compliance Code	unknown	unknown
Other features	INPUT VOLTAGE RANGE IS 42V TO 53V	INPUT VOLTAGE RANGE IS 42V TO 53V
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-XXMA-X106	R-XXMA-X106
Number of functions	1	1
Number of terminals	106	106
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.2 V	5.2 V
Minimum supply voltage (Vsup)	4.8 V	4.8 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED
