BQ2004SN-N datasheet, PDF - EEWORLD Datasheet

BQ2004SN-N: DescriptionBattery Charge Controller, CMOS, PDSO16,; CategoryPower/power management The power supply circuit; File Size685KB，15 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

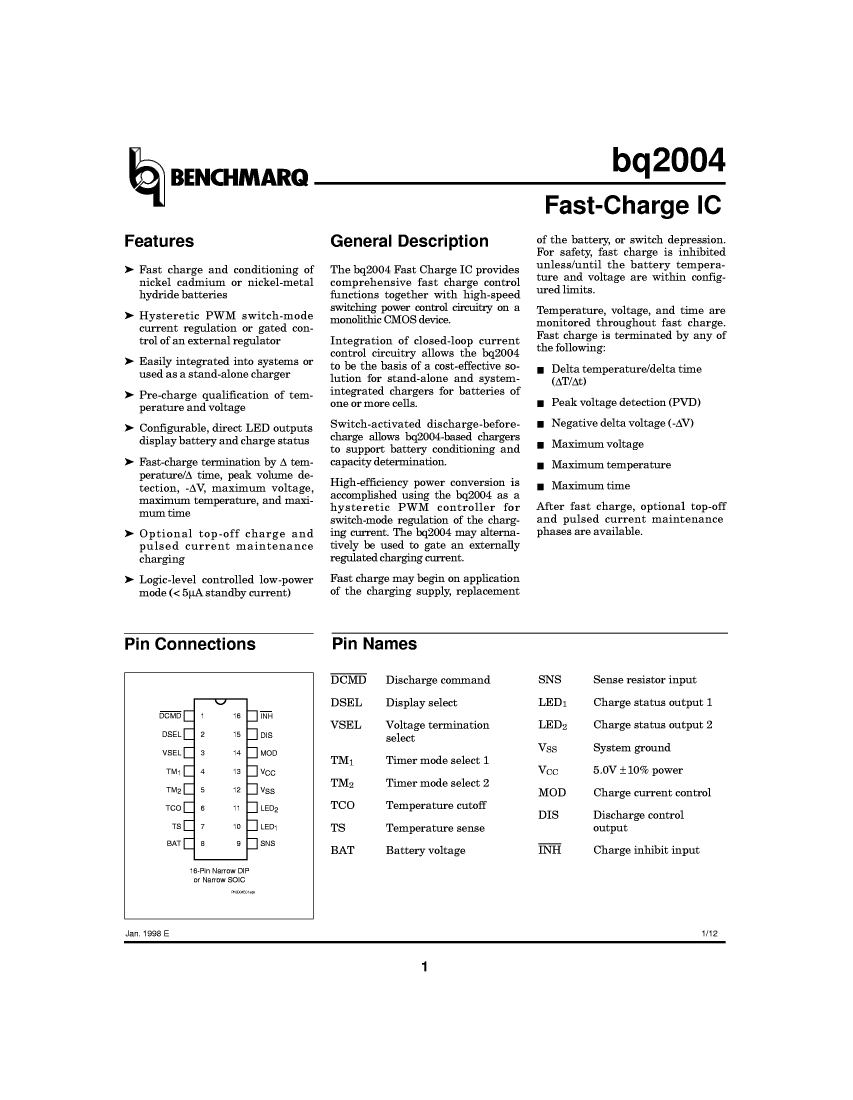

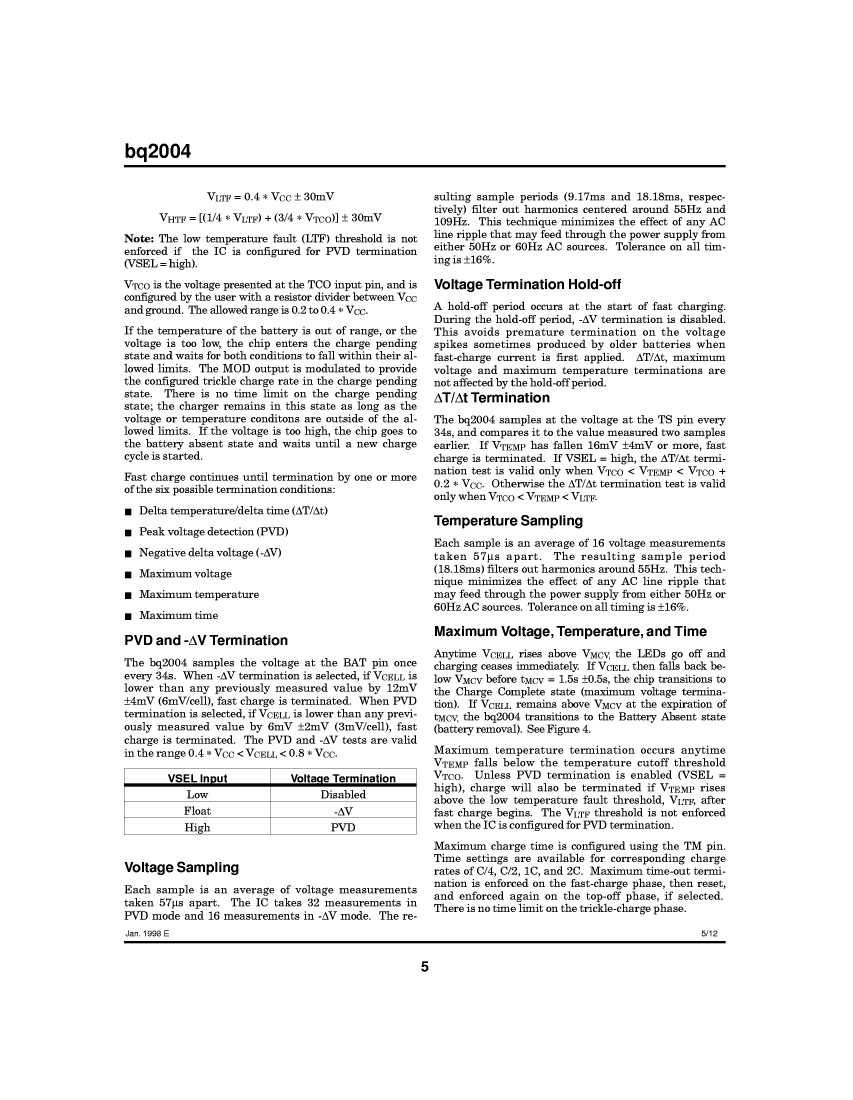

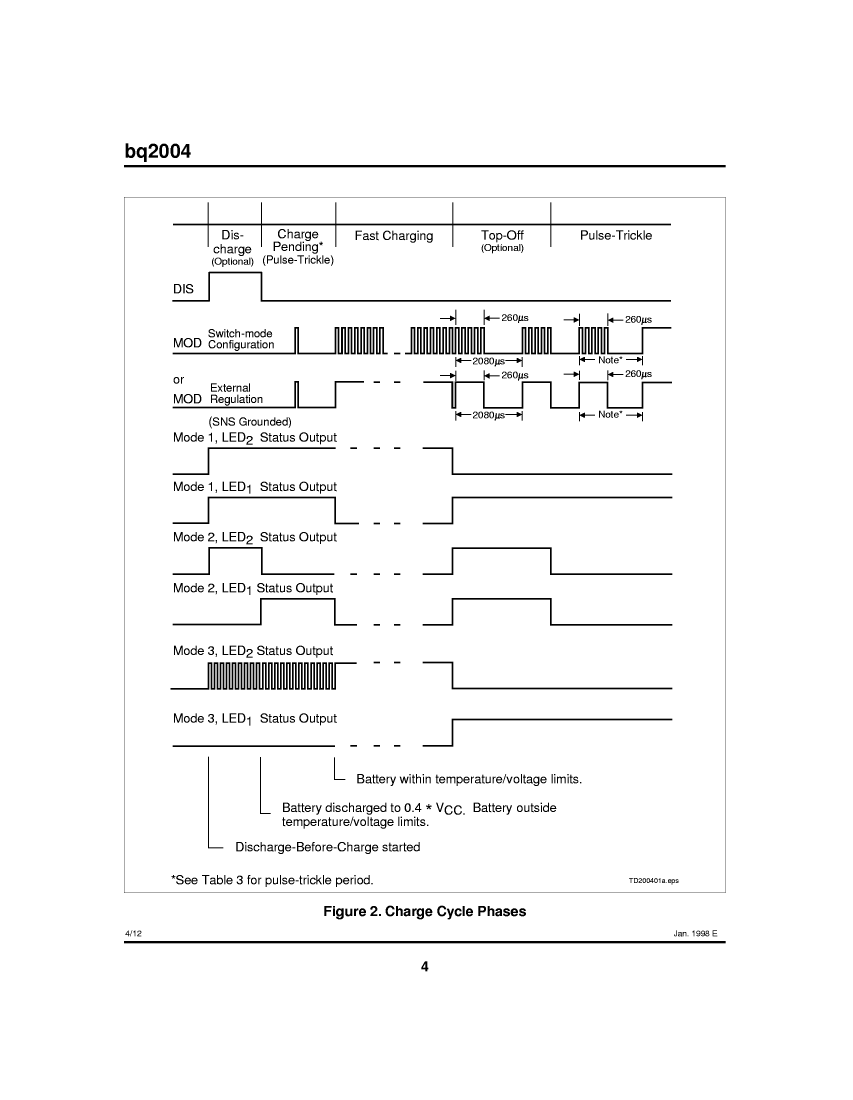

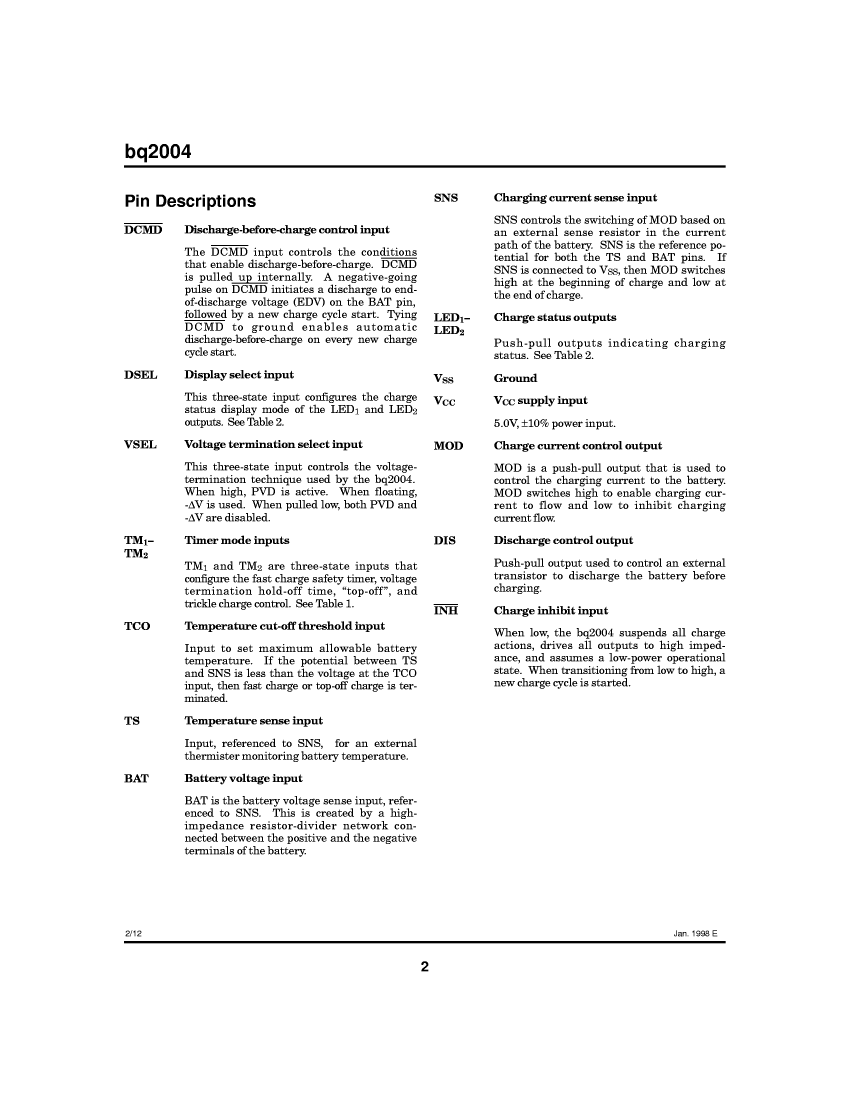

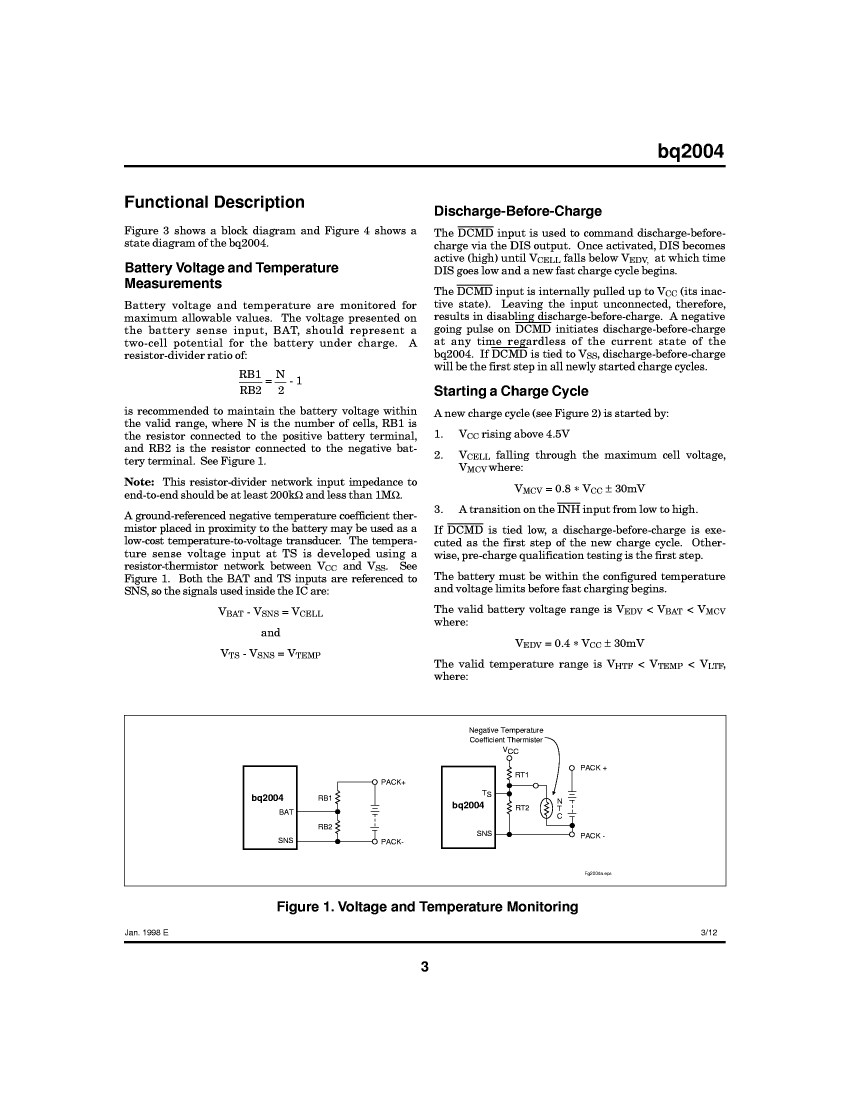

BQ2004SN-N Overview

Battery Charge Controller, CMOS, PDSO16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE
Control Technology	FREQUENCY MODULATION
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	3 mA
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	300 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	BQ2004SN-N	BQ2004PN-N
Description	Battery Charge Controller, CMOS, PDSO16,	Battery Charge Controller, CMOS, PDIP16,
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	FREQUENCY MODULATION	FREQUENCY MODULATION
Maximum input voltage	5.5 V	5.5 V
Minimum input voltage	4.5 V	4.5 V
Nominal input voltage	5 V	5 V
JESD-30 code	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	3 mA	3 mA
surface mount	YES	NO
Switch configuration	SINGLE	SINGLE
Maximum switching frequency	300 kHz	300 kHz
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
