Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0850540048
Active
din_41612
2.54mm (.100") Pitch DIN 41612 Receptacle, Style R Reverse 4-Row, 128 Circuits
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
Backplane Connectors
85054
Backplane
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
R+
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Flammability
Keying to Mating Part
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
128
128
500
94V-0
Yes
32
Open Pin Field
4
Right Angle
0.134 In
3.40 mm
No
Yes
0.063 In, 0.126 In
1.62 mm, 3.20 mm
Bag
0.100 In
2.54 mm
0.100 In
2.54 mm
No
No
No
-55°C to +125°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
85054S
Mates
85015
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shielded
Voltage - Maximum
1.5A
622.0 Mbps
39
No
250V AC (RMS)
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Process Temperature max. C
10
Wave Capable (TH only)
260
Material Info
Reference - Drawing Numbers
Sales Drawing

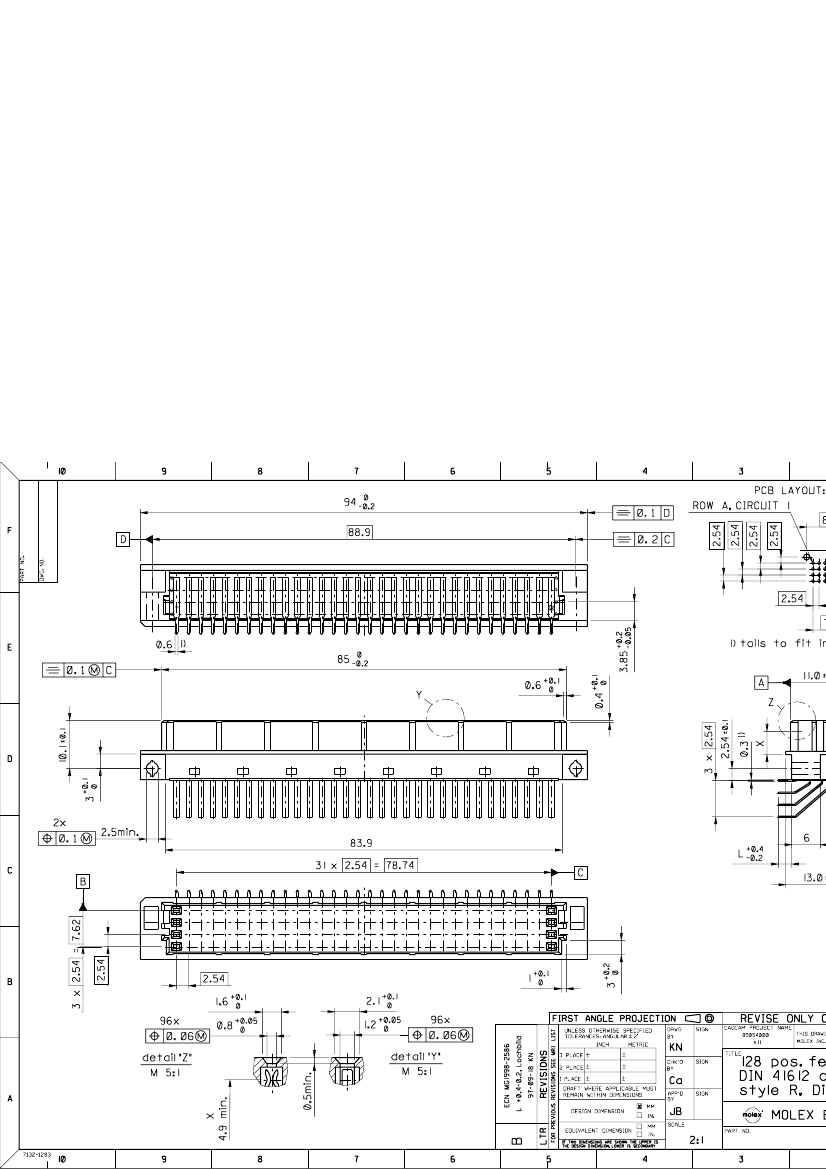

SDA-85054-0001, SDA-85054-0048
