This document was generated on 05/31/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0906350161
Active
qf50
1.27mm (.050") Pitch QF-50™, Single Beam, Female Housing, Gold (Au) Flash, 16
Circuits
Documents:
3D Model

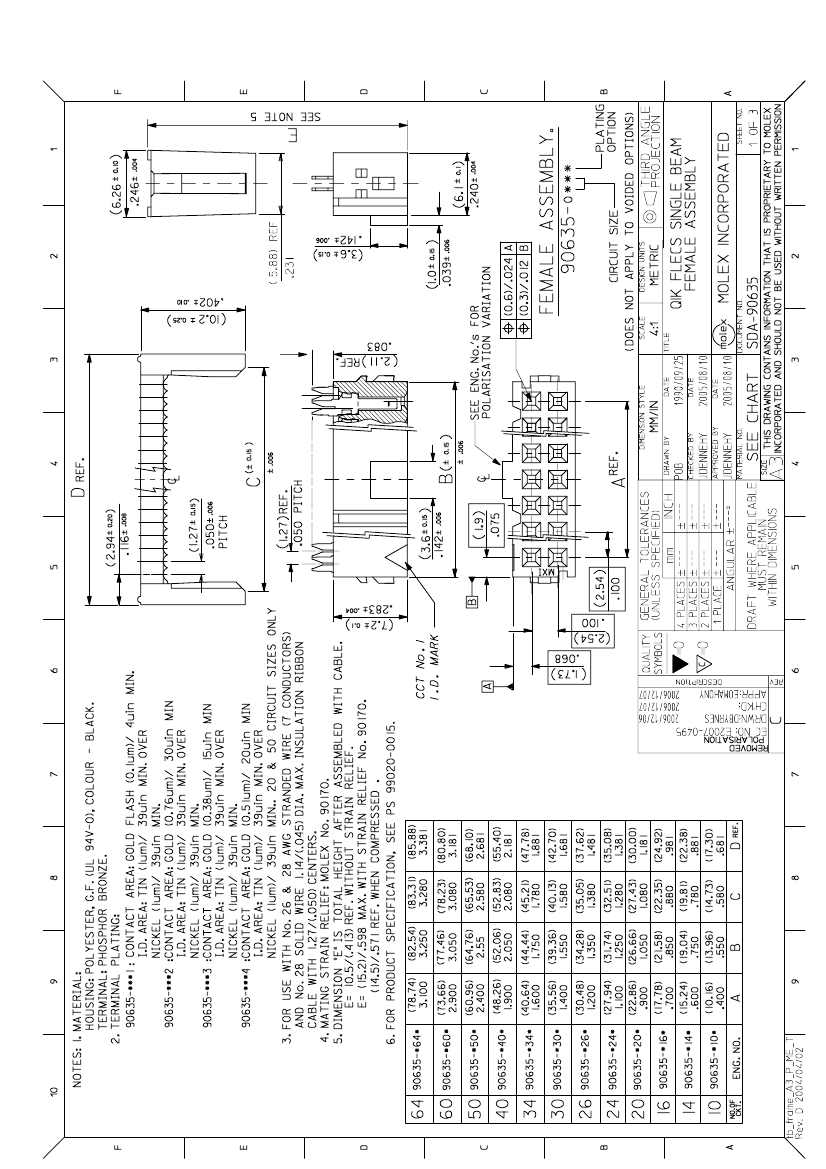

Drawing (PDF)
Product Specification PS-99020-0015 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Component Type
Glow-Wire Compliant
Overview
Product Name
Ribbon Cable / Wire Trap Connectors
90635
Housing
No
qf50
QF-50™
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
16
Black
90° Angle
94V-0
None
Phosphor Bronze
Gold
Tin
Polyester
2
None
Tube
0.050 In
1.27 mm
1
0.02
39
1
No
Fully
No
-25°C to +85°C
IDT or Pierce
1.14mm (.045") max.
26, 28
Ribbon Cable
EU RoHS
Complia
Not Revi
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
90635S
Mates
90663
Use W
90170
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
250V AC/DC
Material Info
Reference - Drawing Numbers
