UPG704B-20: DescriptionIC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,20PIN,CERAMIC; Categorylogic logic; File Size148KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPG704B-20 Overview

IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,20PIN,CERAMIC

UPG704B-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	QFF, QFL20,.17X.32,40
Reach Compliance Code	unknown
JESD-30 code	R-XQFP-F20
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
Maximum Frequency@Nom-Sup	2000000000 Hz
Number of functions	1
Number of entries	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	CERAMIC
encapsulated code	QFF
Encapsulate equivalent code	QFL20,.17X.32,40
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	-2 V
Certification status	Not Qualified
surface mount	YES
technology	GAAS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1 mm
Terminal location	QUAD

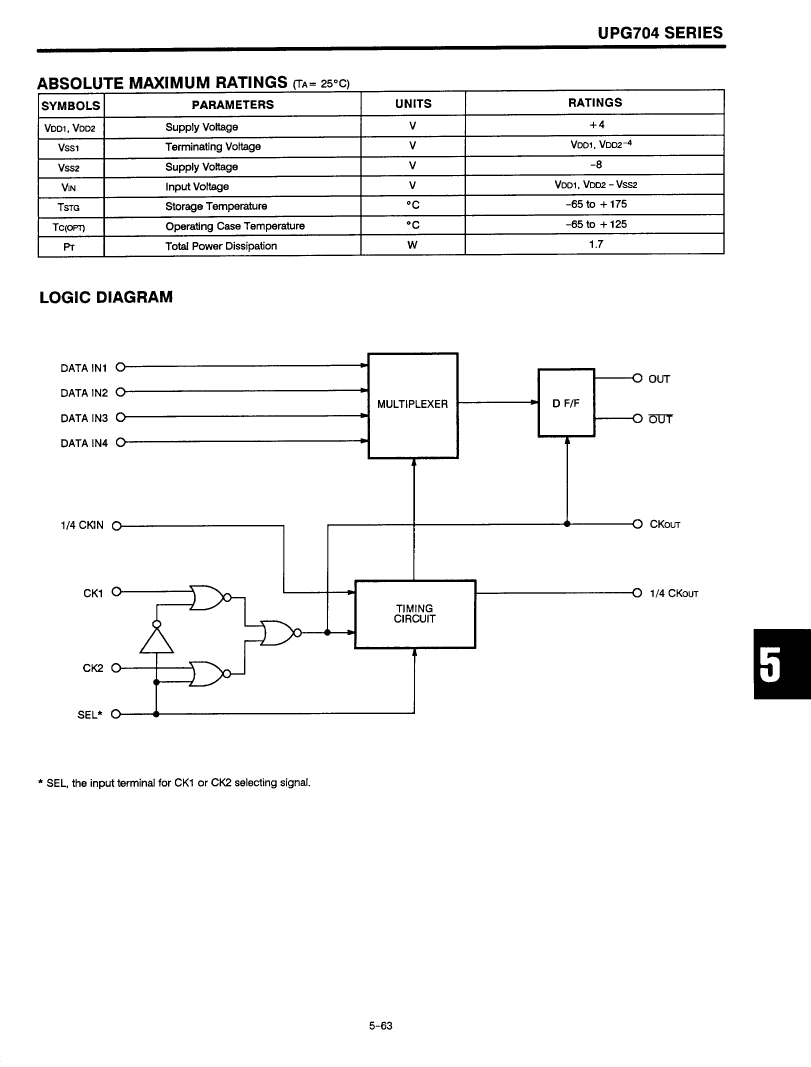

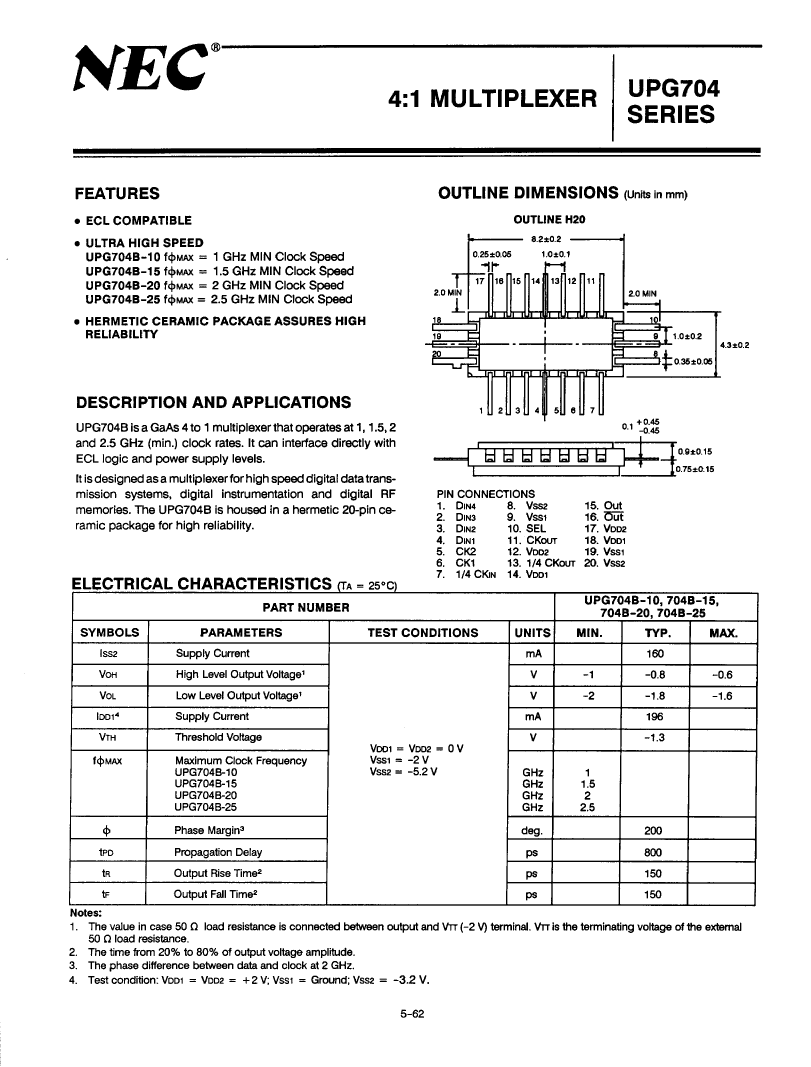

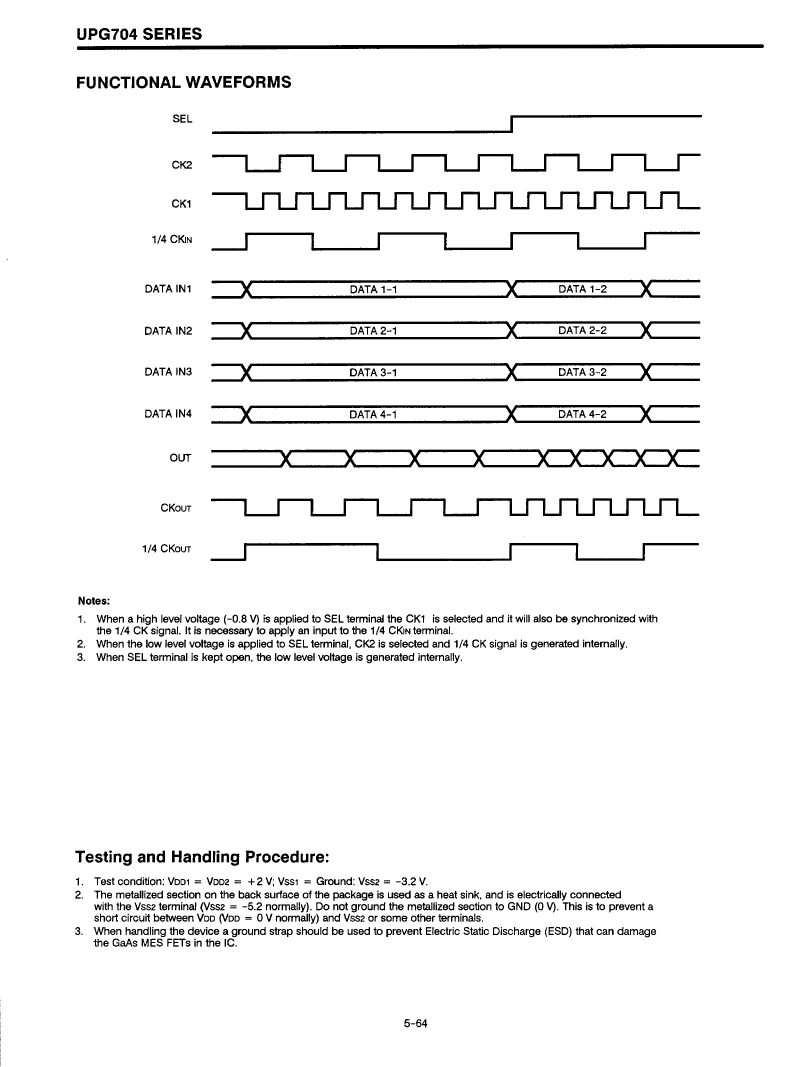

Preview

Download Datasheet

View All

UPG704B-20 Related Products

	UPG704B-20	UPG704B-10	UPG704B-15	UPG704B-25
Description	IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,20PIN,CERAMIC	IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,20PIN,CERAMIC	IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,20PIN,CERAMIC	IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,20PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	QFF, QFL20,.17X.32,40	QFF, QFL20,.17X.32,40	QFF, QFL20,.17X.32,40	QFF, QFL20,.17X.32,40
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-XQFP-F20	R-XQFP-F20	R-XQFP-F20	R-XQFP-F20
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Maximum Frequency@Nom-Sup	2000000000 Hz	1000000000 Hz	1500000000 Hz	2500000000 Hz
Number of functions	1	1	1	1
Number of entries	4	4	4	4
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QFF	QFF	QFF	QFF
Encapsulate equivalent code	QFL20,.17X.32,40	QFL20,.17X.32,40	QFL20,.17X.32,40	QFL20,.17X.32,40
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK
power supply	-2 V	-2 V	-2 V	-2 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
technology	GAAS	GAAS	GAAS	GAAS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1 mm	1 mm	1 mm	1 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
