CLM2954BP: DescriptionFixed/Adjustable Positive LDO Regulator, 4.88V Min, 5.12V Max, 0.6V Dropout, PDIP8, PLASTIC, DIP-8; CategoryPower/power management The power supply circuit; File Size253KB，6 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

CLM2954BP Overview

Fixed/Adjustable Positive LDO Regulator, 4.88V Min, 5.12V Max, 0.6V Dropout, PDIP8, PLASTIC, DIP-8

CLM2954BP Parametric

Parameter Name	Attribute value
Maker	Calogic
Parts packaging code	DIP
package instruction	PLASTIC, DIP-8
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.6 V
JESD-30 code	R-PDIP-T8
length	9.525 mm
Number of functions	1
Number of terminals	8
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.25 A
Maximum output voltage 1	5.12 V
Minimum output voltage 1	4.88 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Regulator type	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

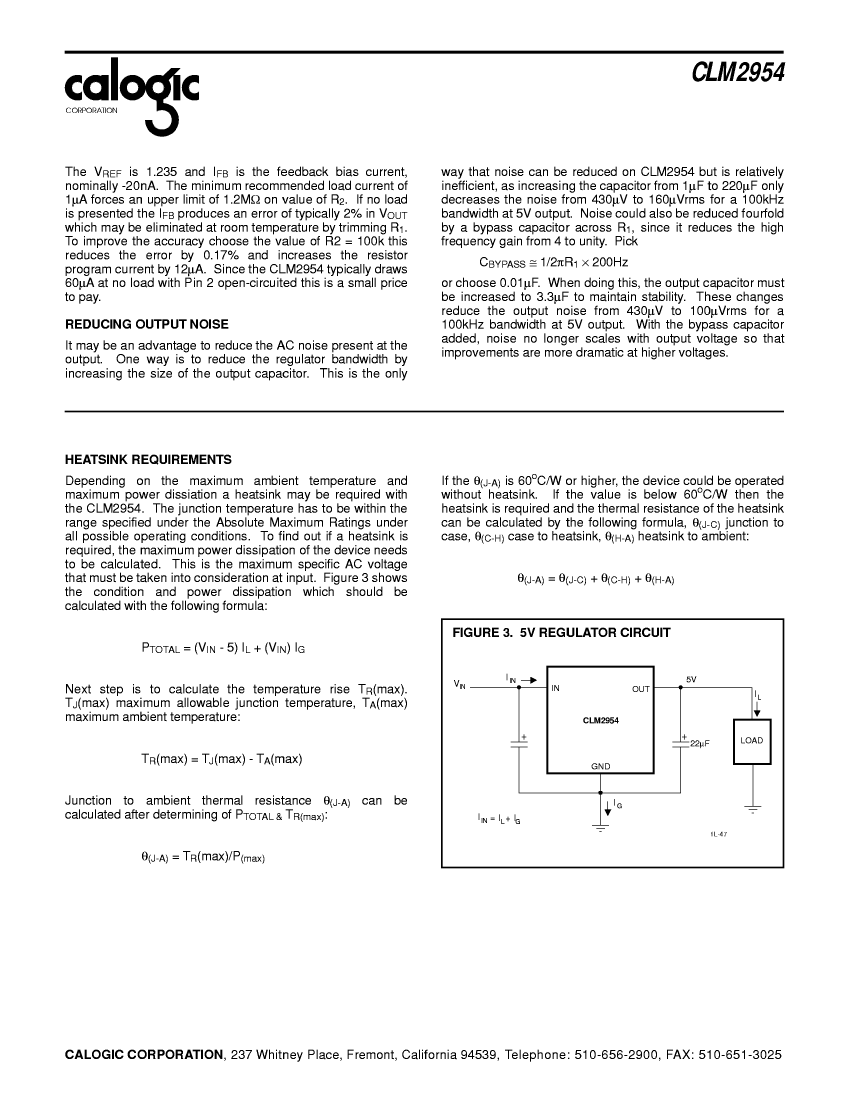

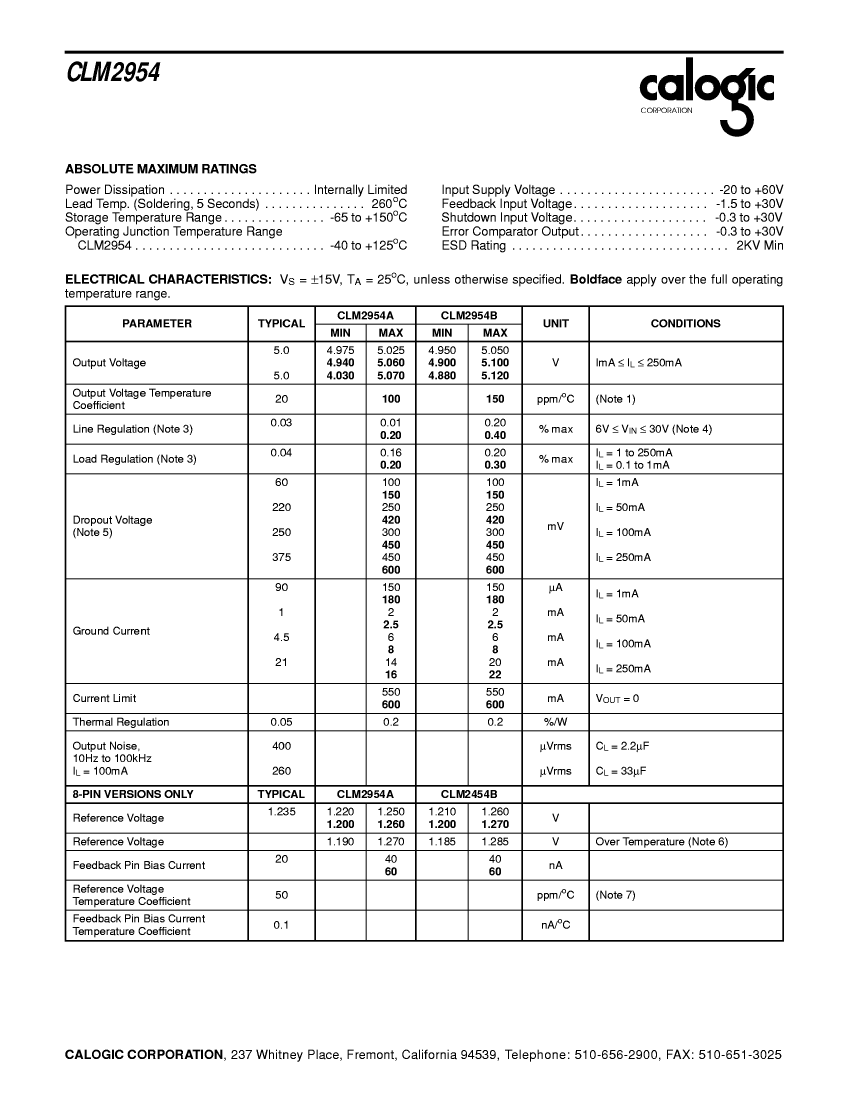

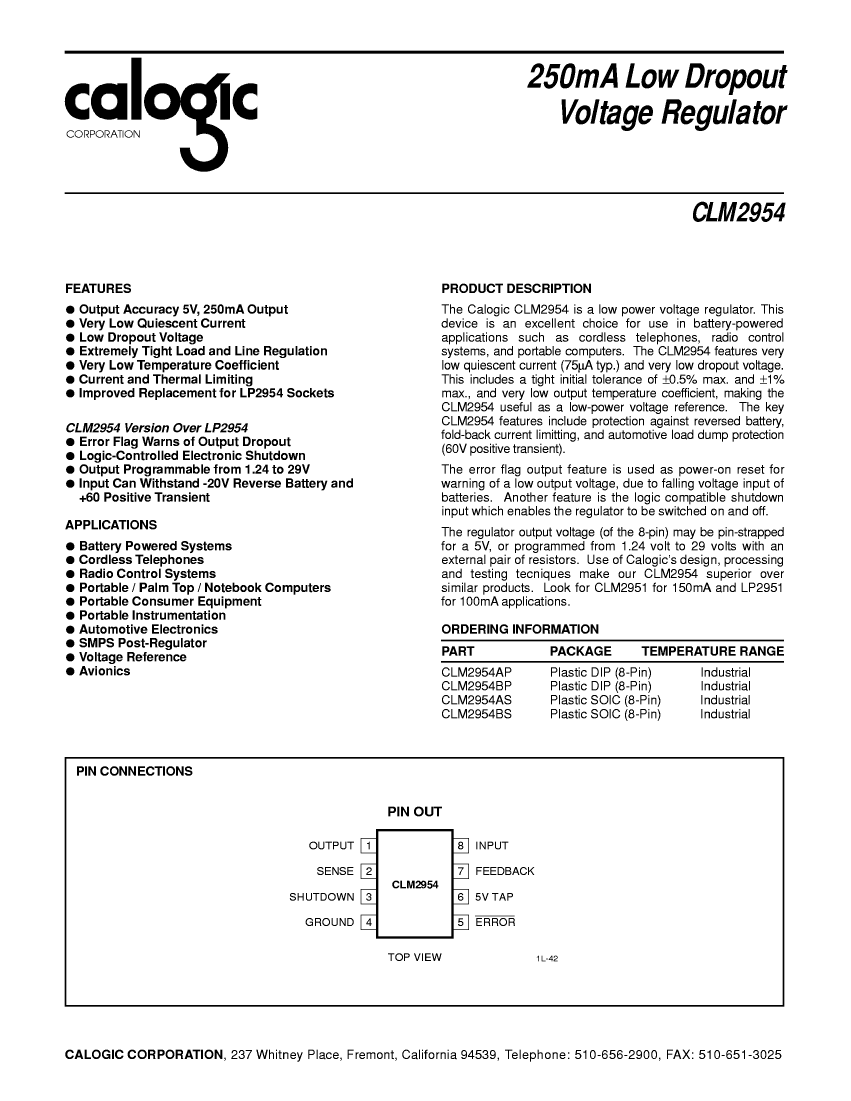

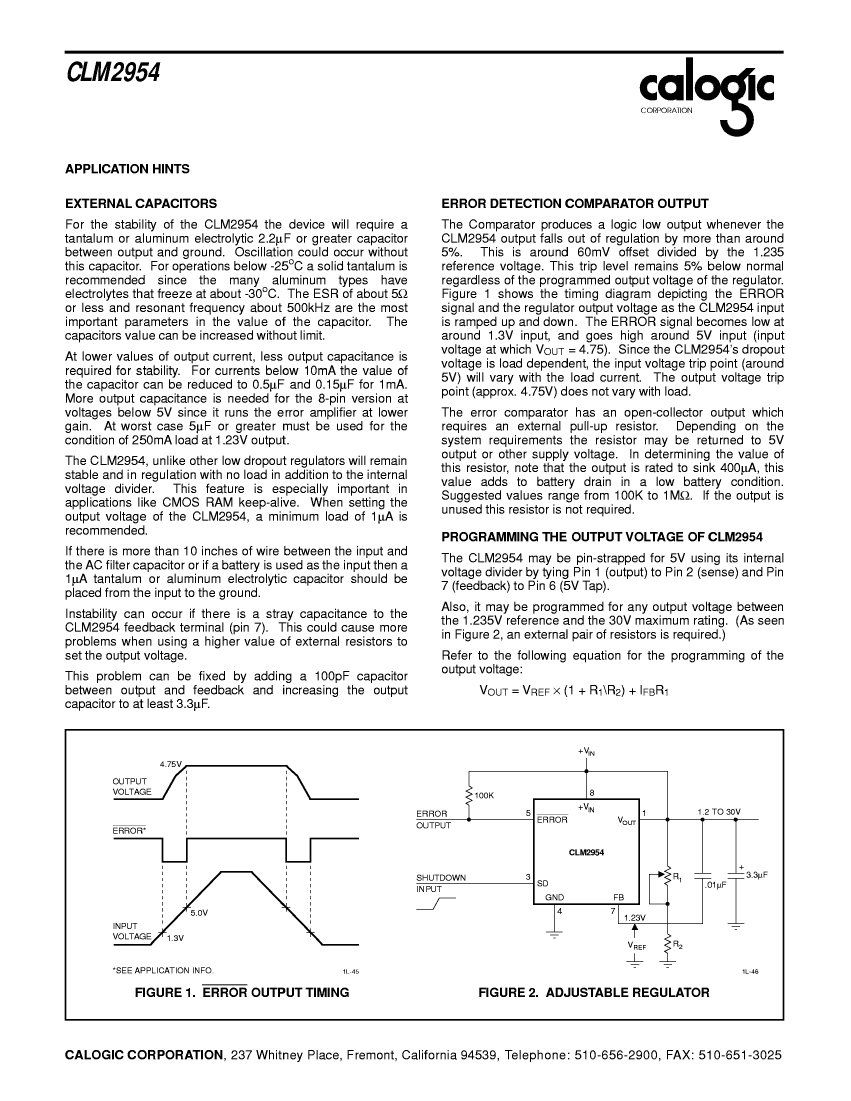

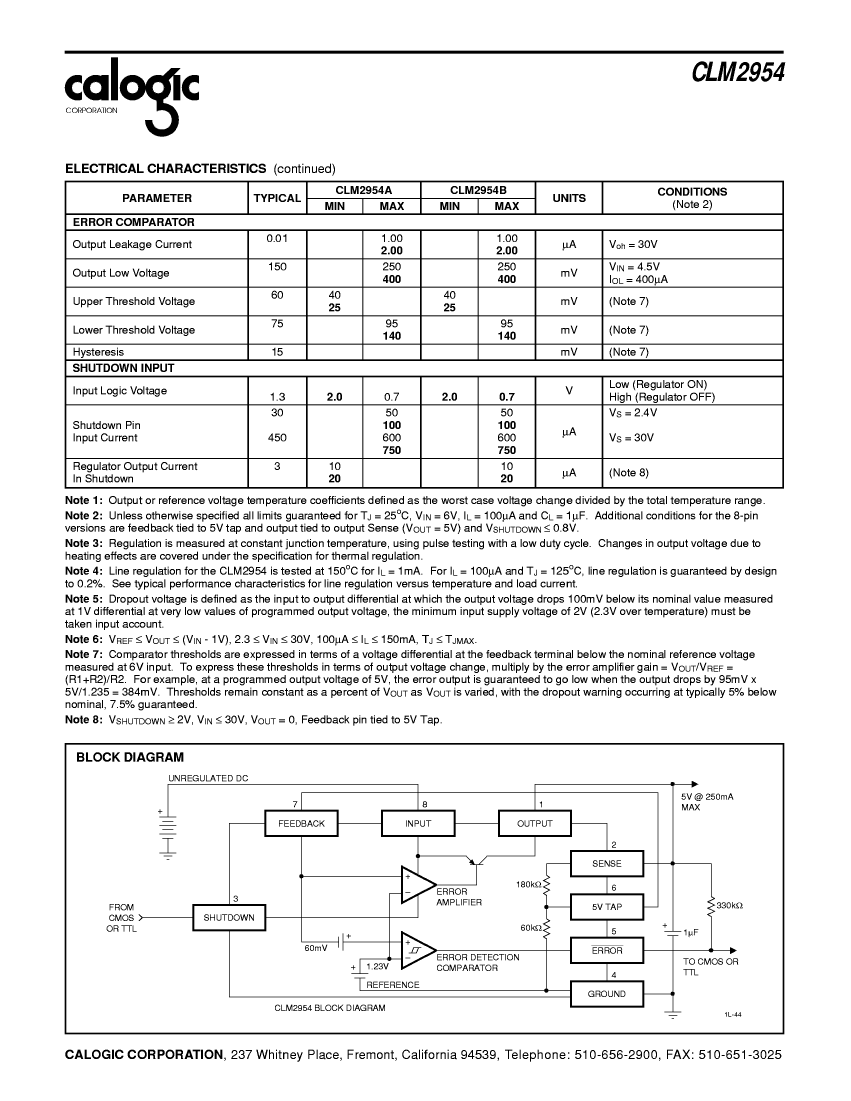

Preview

Download Datasheet

View All

CLM2954BP Related Products

	CLM2954BP	CLM2954AS	CLM2954BS	CLM2954AP
Description	Fixed/Adjustable Positive LDO Regulator, 4.88V Min, 5.12V Max, 0.6V Dropout, PDIP8, PLASTIC, DIP-8	Fixed/Adjustable Positive LDO Regulator, 4.03V Min, 5.07V Max, 0.6V Dropout, PDSO8, PLASTIC, SOIC-8	Fixed/Adjustable Positive LDO Regulator, 4.88V Min, 5.12V Max, 0.6V Dropout, PDSO8, PLASTIC, SOIC-8	Fixed/Adjustable Positive LDO Regulator, 4.03V Min, 5.07V Max, 0.6V Dropout, PDIP8, PLASTIC, DIP-8
Parts packaging code	DIP	SOIC	SOIC	DIP
package instruction	PLASTIC, DIP-8	SOP,	SOP,	PLASTIC, DIP-8
Contacts	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.6 V	0.6 V	0.6 V	0.6 V
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8
length	9.525 mm	4.9 mm	4.9 mm	9.525 mm
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.25 A	0.25 A	0.25 A	0.25 A
Maximum output voltage 1	5.12 V	5.07 V	5.12 V	5.07 V
Minimum output voltage 1	4.88 V	4.03 V	4.88 V	4.03 V
Nominal output voltage 1	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	YES	YES	NO
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	3.9 mm	7.62 mm
