PMAD1106-LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PMAD1106-LF

PMAD1106-LF: DescriptionTrans Voltage Suppressor Diode, 500W, 50V V(RWM), Unidirectional, 8 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, DIP-14; CategoryDiscrete semiconductor diode; File Size873KB，6 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PMAD1106-LF Overview

Trans Voltage Suppressor Diode, 500W, 50V V(RWM), Unidirectional, 8 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, DIP-14

PMAD1106-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ProTek Devices
Parts packaging code	DIP
package instruction	R-PDIP-T14
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ULTRA LOW CAPACITANCE, LOW LEAKAGE CURRENT
Configuration	COMMON ANODE, 8 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDIP-T14
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	8
Number of terminals	14
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	270
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

05093

Only One Name Means ProTek’Tion™

PMAD Series

ultRA low cAPAcitAnce Multi-line SteeRing DioDe ARRAy

DeScRiPtion

The PMAD Series are a low distortion steering diodes. These devices are intended for use in high frequency analog

or digital data I/O ports for protection against Electrostatic Discharge (ESD) and Electrical Fast Transients (EFT). The

PMAD Series is connected between rail-to-rail voltage bus or rail-to-ground for clamping and diverting overvoltage

transients for the protection of sensitive network interface circuits.

This series provides low capacitance, which insures signal integrity up to 900MHz, while complete isolation between

adjacent diodes keeps cross-talk to a minimum. The PMAD Series is available in a 14 pin DIP and meets the IEC

61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.

14 Pin DiP PAckAge

FeAtuReS

• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-

Gnd) & Level 3(Line-Line)

• 500 Milliwatt Continuous Power Dissipation

• Monolithic Design

• ESD Protection > 25 kilovolts

• Protects up to 7 to 8 I/O Lines

• Working Voltage > 50 Volts

• Low Leakage Current < 0.1µA

• Ultra Low Capacitance: 5pF per Diode

• RoHS Compliant

• REACH Compliant

APPlicAtionS

•

High Frequency Data Lines

RS-232 & RS-422 Interface Networks

Ethernet 10/100 Base T

Computer I/O Ports

MechAnicAl chARActeRiSticS

•

Molded 14 Pin Dual-In-Line (DIP) Package

Approximate Weight: 1.2 grams

Lead-Free Pure-Tin Plating (Annealed)

Solder Reflow Temperature:

Pure-Tin - Sn, 100: 260-270°C

• Flammability Rating UL 94V-0

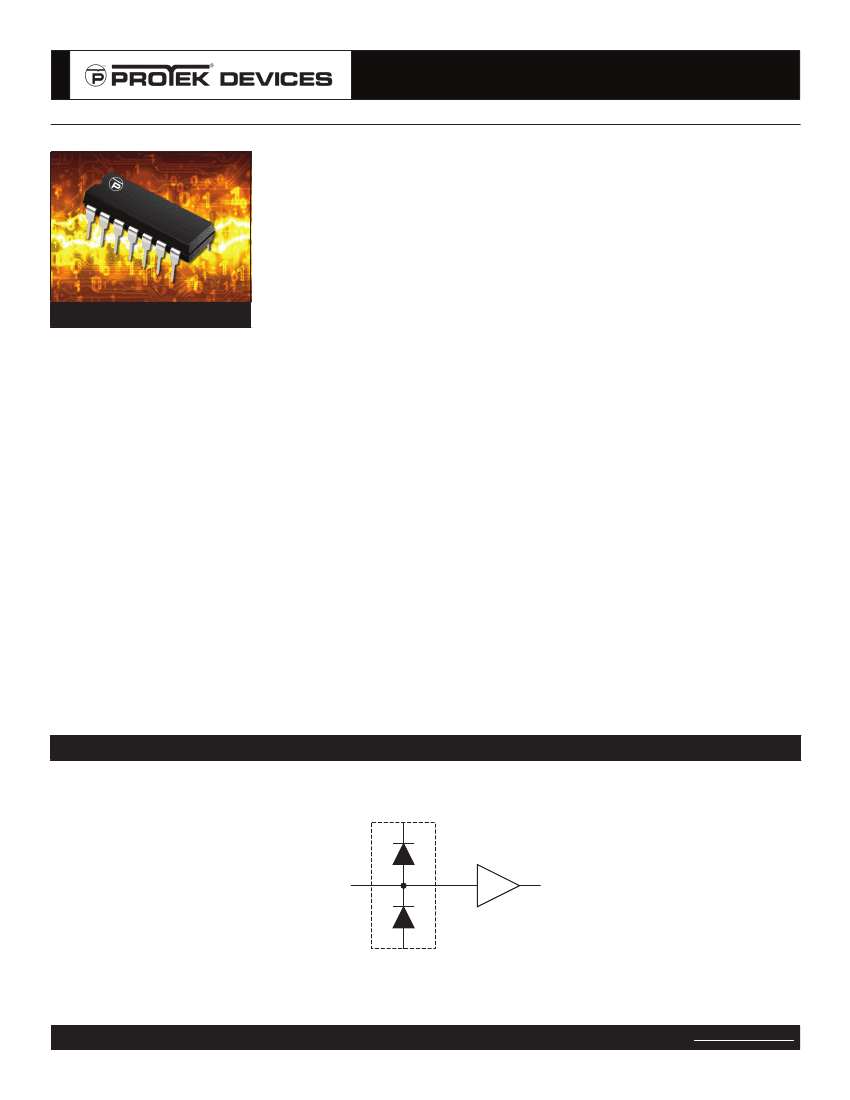

ciRcuit DiAgRAM

I/O PORT

GND OR (-)

05093.R13 10/12

Page 1

www.protekdevices.com
