BradCommunications™ applicomIO
®
Ethernet network
interface cards provide powerful and reliable data
acquisition for PC-based control and visualization
applications.
27 Jan. 10
DW2008253
applicomIO
®
PCU-ETHIO
Best Choice for controlling I/O over Modbus TCP
Features
•
New! Support of PCI Express
1x fomr factor
•
Protocols:
Modbus TCP Client
Modbus UDP Client
•
Reliable solution based on
embedded protocol technology
for powerful data throughput
•
Single-time development of API
for whatever fieldbus used
•
“User-friendly” engineering
tools for configuration and
diagnostics
•
Remote connection through
Ethernet port (for embedded
system platform)
•
Application watchdog
•
Automatic I/O mapping for
easy configuration
•
I/O exchange up to 14 Kbytes
PCI 3.3/5V
PCI Express
LINUX
Overview
Some of the world’s most demanding high-speed control and automation applications run on
standard PCs using BradCommunications™ applicomIO
®
fieldbus interface cards.
Dedicated DCS and PLC systems have been eliminated in favor of open platforms running
PC-based control systems.
The benefits include:
Reduced material costs
Reduced development times
More flexible and customizable systems
Reduced field-support costs
applicomIO products are design so industrial applications can be designed independently of
the fieldbus used.
OEMs, system integrators
and
end-users
can take advantage of
developing standard control applications as well as selecting the fieldbus connectivity
required from the applicomIO product range.
applicomIO products consist of a fieldbus card and engineering tools which quickly and
easily setup communication. EVERYTHING is included for a successful implementation at a
lower cost.
applicomIO provides connectivity support for all popular fieldbuses including
EtherNet/IP,
PROFINET IO, Modbus TCP, PROFIBUS, DeviceNet
and
CANopen.
Our cards are
developed in compliance with the technical specifications of industrial organizations and
comply with the applicable industrial standards. applicomIO supports up to 8 cards in a
single PC and can run on various operating systems including Windows 32-bits, Linux as
well as real-time OS such as VxWorks, QNX, and VenturCom RTX.
Particularly, the applicomIO
®
PCU-ETHIO
network interface card provides high-speed
deterministic communication to exchange data with industrial devices through
Modbus
Ethernet messaging.
The built-in processor handles all the protocol management to offer
reliable and outstanding performance.
The software package includes a common development library for all fieldbuses supported.
The process data is exchanged with the control application through a shared memory where
inputs/outputs are automatically mapped. To monitor the communication between the card
and the control application, the library includes a watchdog feature to automatically detect
software blocking.
ARE YOU LOOKING FOR A REAL TURNKEY SOLUTION?
applicomIO
®
configuration software console provides a standardized and user-friendly
environment for quick development of communication applications without the worry of
knowing industrial communication protocols. The console saves time during the
commissioning phase by offering features such as automatic device detection, user
configuration management, diagnostic information, etc.
The product includes:
Fieldbus interface card
Engineering console for configuration and diagnostics
Data Servers (OPC DA v3.0 & v2.05, Wonderware DAServer and FastDDE/SuiteLink)
Development Libraries: Windows (DLL), NI (LabView), VenturCom (RTX)
Static library for non-windows OS (VxWorks, QNX, Linux, etc)
Typical Application
•
PC-Based Control
•
Robotic application
•
Panel PC visualization system
Supported OS
Standard package
•
Windows 32-bit (XP , 2000,
2003 Server), VenturCom RTX
Free Download
•
Windows XP Embedded, QNX,
VxWorks, Linux, Phar Lap ETS,
DOS
applicomIO
®
PCU-ETHIO

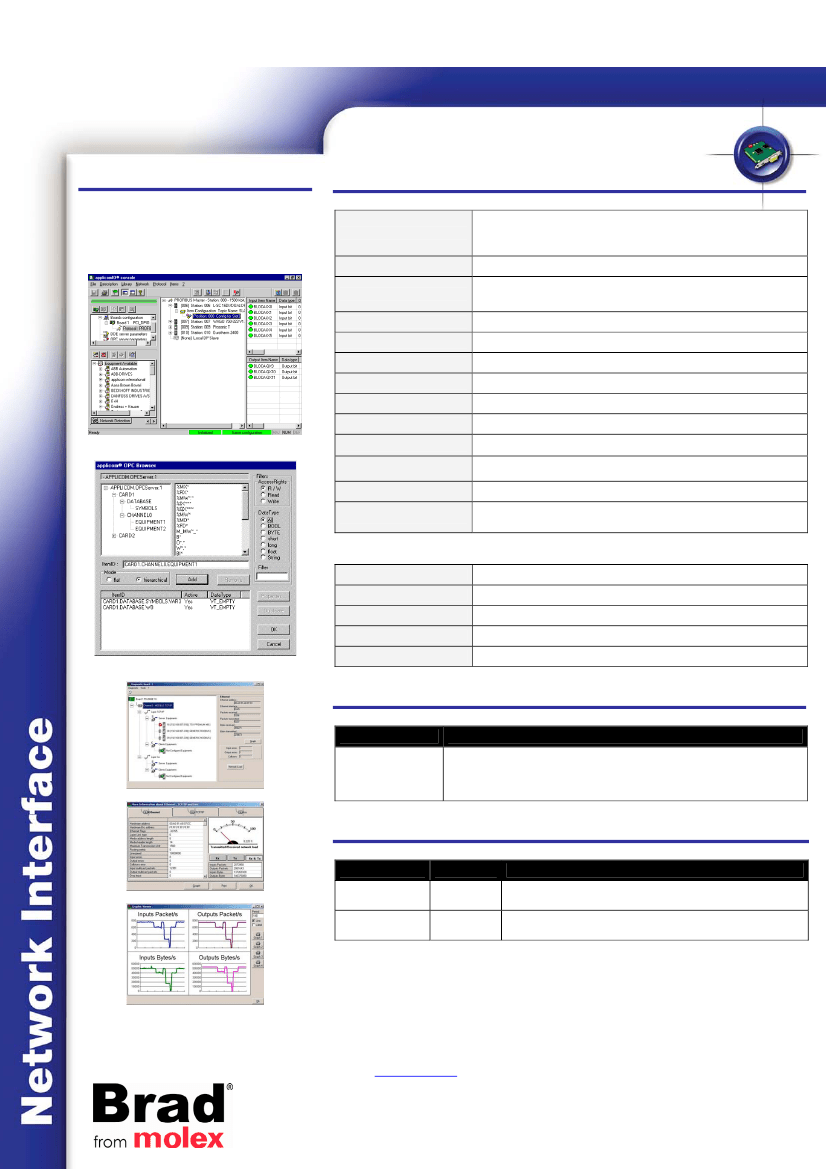

Software tools
applicomIO
®
software tools enable fast
integration of the fieldbus into your control
application. No matter the fieldbus; the
console remains the same.
Hardware specifications
PCI rev 2.2, 32-bit, 33 MHz, PCI Universal 3.3V/5V keying,
PCI-X compatible
PCI Express 1x
AMD SC520 - 133 MHz
SDRAM: 16 Mbytes
Flash: 4 Mbytes
Hardware Plug&Play
Hardware Plug&Play (32 Kbytes used per card)
Bus interface
Processor
Memory
Interruption
DPRAM Address
Dimensions (L x W)
Consumption
Operating Temperature
Storage Temperature
168mm x 107mm (6.61" x 4.21")
5.5 W
0º C (32º F)
↔
+65º C (149º F)
-40º C (-40º F)
↔
+85º C (185º F)
1x Opto-coupled
1x "WatchDog" (dry contact)
EN55022 Class B, EN61000-6-2, EN61000-3-2, EN61000-3-3
- Configuration console -
Discrete Input
Discrete Output
EMC Compliance
RoHS Compliance
YES
1 Ethernet port
Port type
Connector type
Speed
LED indicators
- OPC Browser -
Remote Access
Ethernet port IEEE 802.3 for industrial applications
BaseT (RJ45)
10/100 Mbps (Auto-negotiation)
4 LEDs - TX, RX, Link, 100 Mbps
Also usable for remote and diagnostic configuration
Protocols supported
Ethernet TCP/IP
Modbus TCP
(Client mode)
Protocol Specifications
Connect Ethernet Modbus devices server according to Modbus-IDA
specifications
Support both TCP and UDP connection modes
Up to 127 simultaneous devices
Ordering information
Part Number
DRL-EMB-PCU
DRL-EMB-PCIE
SAP
1120005029
1120005034
Product description
BradCommunications™ Direct-Link™ PCU-ETHIO Ethernet
card for
Modbus TCP Client,
PCI 3.3/ 5V
BradCommunications™ Direct-Link™ PCU-ETHIO Ethernet
card for
Modbus TCP Client,
PCI Express 1x
Also available EtherNet/IP and PROFINET IO network interface cards.
