QTS-064-01-H-D-DP-RA-WT datasheet, PDF

Datasheet> All Categories > The connector> The connector> QTS-064-01-H-D-DP-RA-WT

QTS-064-01-H-D-DP-RA-WT: DescriptionBoard Connector, 128 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size656KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

QTS-064-01-H-D-DP-RA-WT Overview

Board Connector, 128 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

QTS-064-01-H-D-DP-RA-WT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SOLDER
Total number of contacts	128

Preview

Download Datasheet

View All

REVISION X

DO NOT

SCALE FROM

THIS PRINT

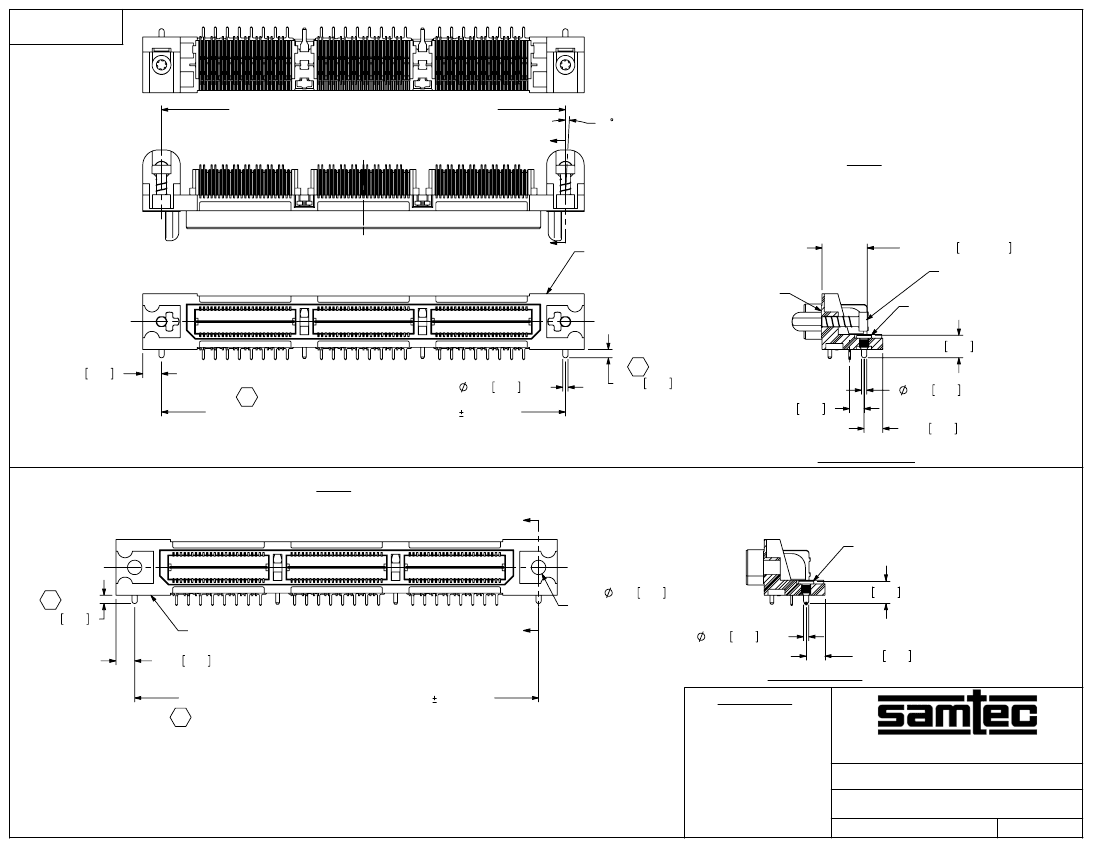

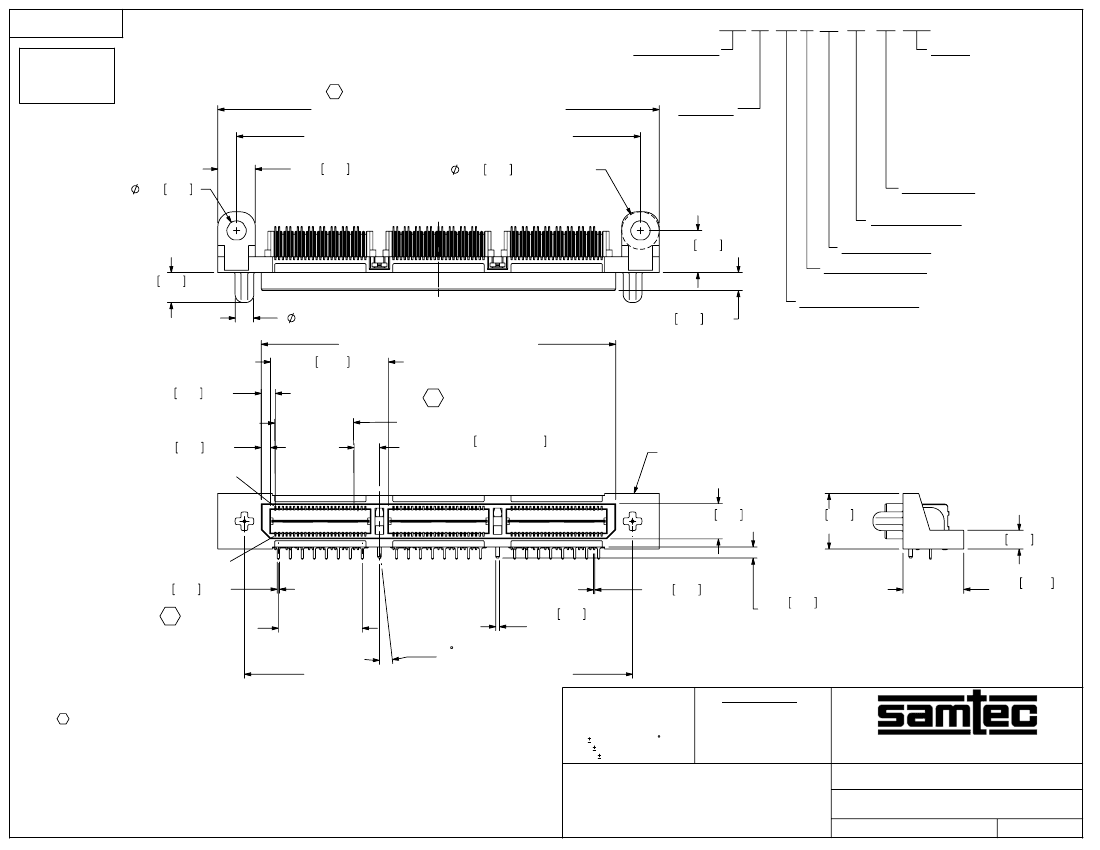

QTS-XXX-01-XX-D-DP-RA-WT-XXX

No OF POSITIONS

-016, -032, -048, -064

[PER ROW]

((No OF POS / 16) x .7875[20.003]) + .580[14.73]

((No OF POS / 16) x .7875[20.003]) + .330[8.38] REF

.250 6.35 REF (TYP)

.130 3.30

REF (TYP)

(SEE NOTE 9)

.250 6.35 MAX REF (TYP)

LEAD STYLE

-01

OPTION

-LS1: LOCKING SCREW (SEE NOTE 10)

(FOR MATING WITH QSS...-RA...-LS1)

(USE WITH SP-18-01-TM SOLDER PIN)

(SEE FIG. 2, SHT 3)

-LS2: LOCKING SCREW (SEE NOTE 10)

(FOR MATING WITH QSS...-LS2)

(SEE FIG. 3, SHT 3)

(USE WITH SP-18-01-TM SOLDER PIN)

-P: PICK AND PLACE PAD

(USE PPP-63) SEE FIG. 5, SHT 4)

-WT: WELD TAB

SEE NOTE 4; USE WT-16-01-T

-RA: RIGHT ANGLE

.280 7.11

REF

.200 5.08 REF

(TYP)

.125 [3.18 REF (TYP)

(No OF POS / 16) x .7875[20.003] REF

.7875 20.00 REF

.094 2.38 REF

DIFFERENTIAL PAIR

ROW SPECIFICATION

-D: DOUBLE (USE QTS-25-01-D-XX-RA)

PLATING SPECIFICATION

-F: FLASH GOLD

(USE T-1S52-01-F, T-1S53-01-F, IM-1G14-01-1-F)

(SEE NOTE 6)

-L: LIGHT GOLD

(USE T-1S52-01-L, T-1S53-01-L, IM-1G14-01-1-L)

(SEE NOTE 6)

-H: HEAVY GOLD

(USE T-1S52-01-H, T-1S53-01-H, IM-1G14-01-1-L)

(SEE NOTE 6)

-FM: FLASH SELECTIVE GOLD, MATTE TIN TAIL

(USE T-1S52-01-F, T-1S53-01-F, IM-1G14-01-1-F)

-LM: LIGHT SELECTIVE GOLD, MATTE TIN TAIL

(USE T-1S52-01-L, T-1S53-01-L, IM-1G14-01-1-L)

.120 3.05 REF

.061 1.56 REF

7 EQ SPACES

@ .0750[1.905]

.16875±.0030 4.2863±0.076

(TYP - SEE NOTE 4)

QTS-25-01-D-XX-RA

.235 5.97

REF

.015 0.38 REF

7 EQ SPACES

@ .080[2.03]

.025 0.64 SQ

REF (TYP)

(SEE NOTE 4)

.008 0.20 REF

.371 9.42

REF

.125 3.18 REF

.074 1.88

REF

.405 10.29

REF

2 MAX SWAY

(TYP)

((No OF POS / 16) x .7875[20.003]) + .225[5.72] REF

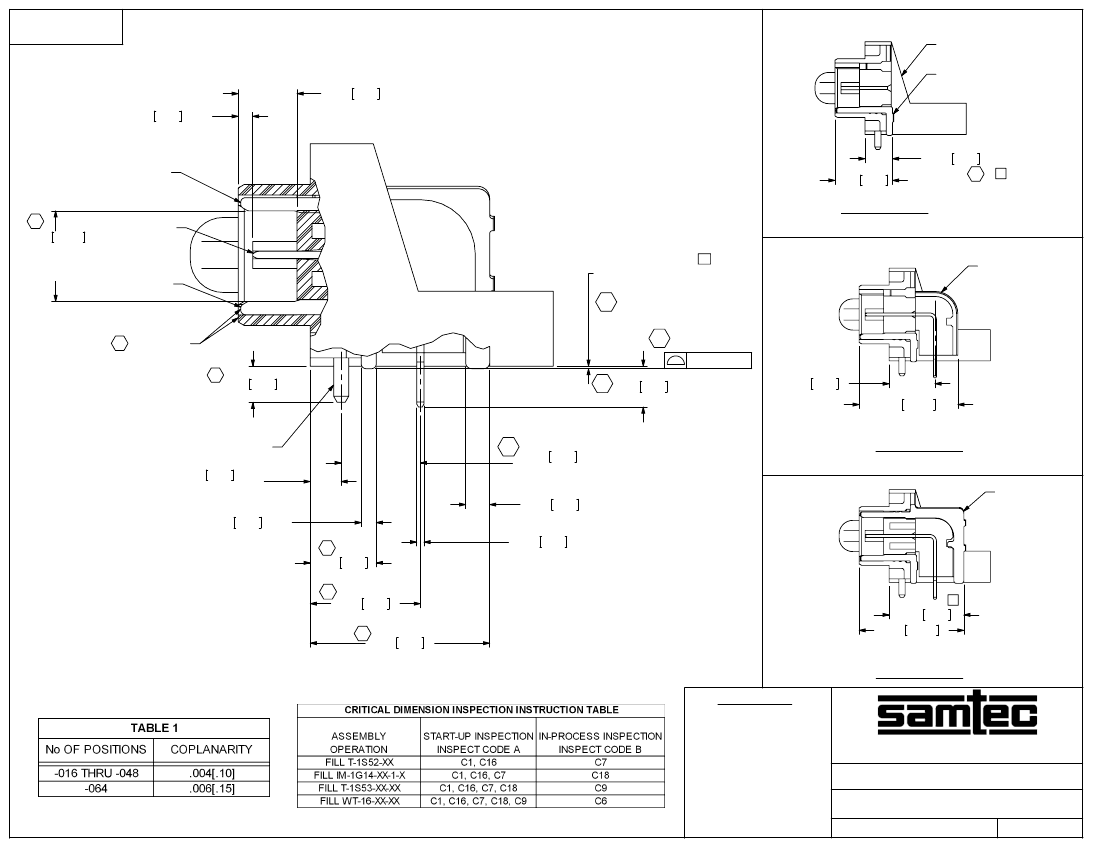

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: .0010 MAX.

3. MINIMUM PUSHOUT FORCE: 5 OZ.

4. WELD TABS NOT AVAILABLE ON -016 POSITION.

5. TIPS OF TERMINALS MAY NOT EXTEND BEYOND THIS SURFACE.

6. IF NEEDED, -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.

7. DESIGNED FOR USE WITH A .062 THICK PCB

8. PARTS TO BE PACKAGED IN TRAY AS STANDARD.

9. RECOMMENDED TORQUE ON HOLD DOWN SCREWS TO BE 20 IN-OZ +/- 5 IN-OZ.

10. MAXIMUM TORQUE ON STS-02 TO BE 20 IN-OZ.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.666667

DESCRIPTION:

INSULATOR:

TERMINAL & GROUND PLANE: PHOS BRONZE

.635mm DOUBLE ROW RIGHT ANGLE TERMINAL STRIP

QTS-XXX-01-XX-D-DP-RA-WT-XXX

BY:

DEAN P

DWG. NO.

F:\DWG\MISC\MKTG\QTS-XXX-01-XX-D-DP-RA-WT-XXX-MKT.SLDDRW

2-13-2003

SHEET

QTS-064-01-H-D-DP-RA-WT Related Products

	QTS-064-01-H-D-DP-RA-WT	QTS-016-01-H-D-DP-RA	QTS-048-01-H-D-DP-RA-WT	QTS-064-01-F-D-DP-RA-WT	QTS-064-01-L-D-DP-RA-WT	QTS-032-01-FM-D-DP-RA-WT	QTS-032-01-LM-D-DP-RA-WT
Description	Board Connector, 128 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 96 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 128 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 128 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD FLASH	GOLD	GOLD FLASH	GOLD
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au)	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	128	32	96	128	128	64	64
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	-
Factory Lead Time	2 weeks	2 weeks	2 weeks	2 weeks	-	-	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-
