REVISION AG
DO NOT
SCALE FROM
THIS PRINT
QTS-XXX-01-X-D-DP-RA-XX-XXX
No OF POSITIONS
-016, -032, -048, *-064
[PER ROW]
* SEE NOTE 11
LEAD STYLE
-01
OPTION 2
-LS1: LOCKING SCREW (SEE NOTE 10)
(FOR MATING WITH QSS...-RA...-LS1)
(USE WITH SP-18-01-TM SOLDER PIN)
(SEE FIG 2, SHT 3)
-LS2: LOCKING SCREW (SEE NOTE 10)
(FOR MATING WITH QSS...-LS2)
(SEE FIG 3, SHT 3)
(USE WITH SP-18-01-TM SOLDER PIN)
-P: PICK AND PLACE PAD
(USE PPP-63) (SEE FIG 5, SHT 4)
OPTION 1
-WT: WELD TAB (REQUIRED OPTION
FOR POSITIONS -032, -048, & -064,
NOT AVAILABLE FOR POSITION -016)
(USE WT-16-01-T)
.280 7.11
REF
.200 5.08 REF
(TYP)
.125 [3.18 REF (TYP)
(No OF POS / 16) x .7875[20.003] REF
.7875 20.00 REF
.094 2.38 REF
C
L
C
((No OF POS / 16) x .7875[20.003]) + .580[14.73]
((No OF POS / 16) x .7875[20.003]) + .330[8.38] REF
.250 6.35 REF (TYP)
.130 3.30
REF (TYP)
.250 6.35 MAX REF (TYP)
-RA: RIGHT ANGLE
DIFFERENTIAL PAIR
ROW SPECIFICATION
-D: DOUBLE (USE QTS-25-01-D-XX-RA)
.120 3.05 REF
C
C
L
.062 1.56 REF
01
7 EQ SPACES
@ .0750[1.905]
.16875±.0030 4.2863±0.076
(TYP - SEE NOTE 4)
PLATING SPECIFICATION
-H: HEAVY GOLD
(USE T-1S52-01-H, T-1S53-01-H, IM-1G14-01-1-L)
(SEE NOTE 6)
-F: FLASH SELECTIVE GOLD, MATTE TIN TAIL
(USE T-1S52-01-F, T-1S53-01-F, IM-1G14-01-1-F)
(SEE NOTE 6)
-L: LIGHT SELECTIVE GOLD, MATTE TIN TAIL
(USE T-1S52-01-L, T-1S53-01-L, IM-1G14-01-1-L)
(SEE NOTE 6)
QTS-25-01-D-XX-RA
.235 5.97
REF
02
.015 0.38 REF
C 7 EQ SPACES
@ .080[2.03]
.008 0.20 REF
.025 0.64 SQ
REF (TYP)
(SEE NOTE 4)
.371 9.42
REF
.125 3.18 REF
.074 1.88
REF

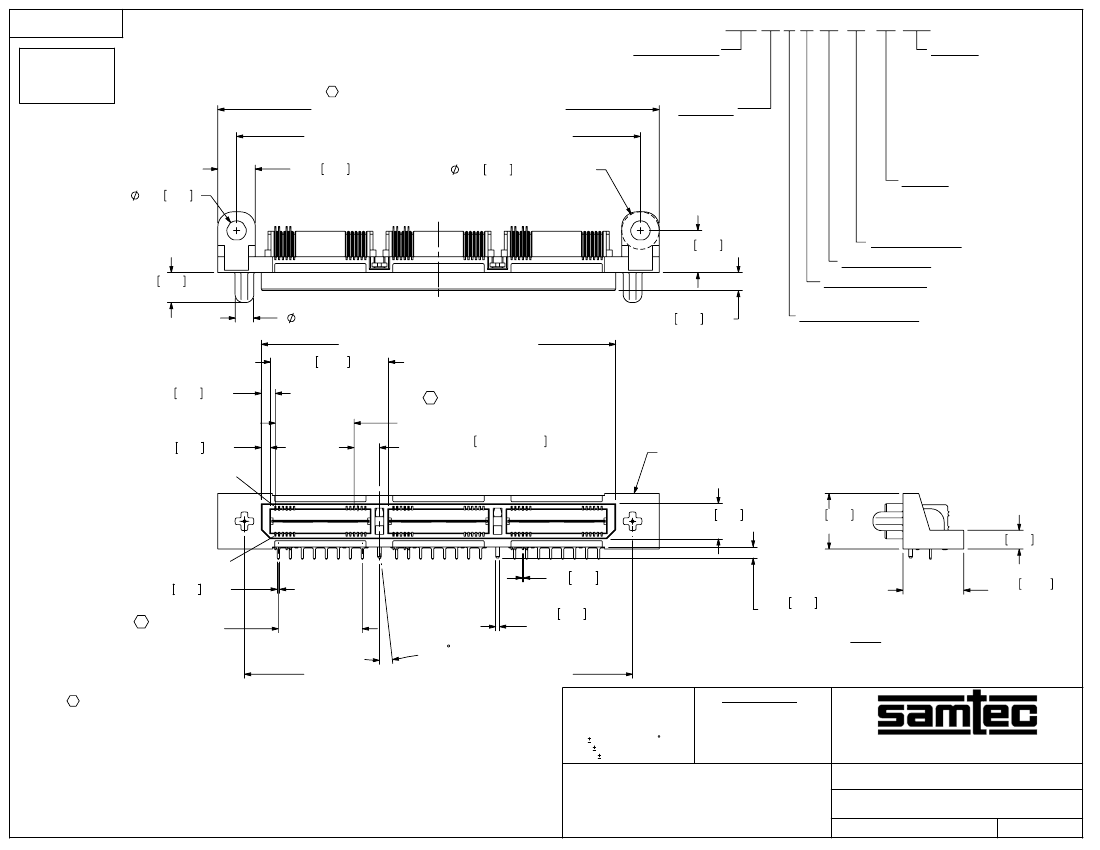

(QTS-048-01-X-D-DP-RA-WT SHOWN)
.405 10.29
REF
NOTES:
2 MAX SWAY
(EITHER DIRECTION)
((No OF POS / 16) x .7875[20.003]) + .225[5.72] REF
FIG 1
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .0010 MAX.
3. MINIMUM PUSHOUT FORCE: 5 OZ.
4. DIMENSION ONLY APPLICABLE WITH WELD TAB OPTION.
WELD TABS NOT AVAILABLE ON -016 POSITION.
5. TIPS OF TERMINALS MAY NOT EXTEND BEYOND THIS SURFACE.
6. IF NEEDED, -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
7. DESIGNED FOR USE WITH A .062 THICK PCB
8. PARTS TO BE PACKAGED IN TRAY AS STANDARD.
9. NOTE DELETED.
10. MAXIMUM TORQUE ON STS-02 TO BE 20 IN-OZ.
11. AVAILABLE FOR EXISTING CUSTOMERS ONLY.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
DESCRIPTION:
INSULATOR:
TERMINAL & GROUND PLANE: PHOS BRONZE
.635mm DOUBLE ROW RIGHT ANGLE TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\QTS-XXX-01-X-D-DP-RA-XX-XXX-MKT.SLDDRW
BY:
DEAN P
QTS-XXX-01-X-D-DP-RA-XX-XXX
2/13/2003
SHEET
1
OF
4
REVISION AG
.024 0.61 REF
.098 2.49 REF
QTS-25-01-D-XX-RA
T-1S52-XX
T-1S53-01-XX
C
.1510 3.835
(MEASURED
TERMINAL TO
TERMINAL)
IM-1G14-01-1-XX
.001[.03]-.006[.15]
(BOTH ROWS)
C
.110 2.79
C
.230 5.84
IN-PROCESS 1
T-1S52-01-XX
IM-IG14-XX-1-X
C
SEE NOTE 5
C
C
SEE TABLE 1
.060 1.52
.068 1.73
C
WT-16-01-T
.052 1.31 REF
(SEE NOTE 4)
.025 0.64 REF
.110 2.79
C
C
.184 4.66
.132 3.35
C
(SEE NOTE 4)
.040 1.02 REF
.395 10.03
C
IN-PROCESS 2
T-1S53-XX-XX
.012 0.30 REF
.299 7.59
.299 7.59
C
IN-PROCESS 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.166667
.635mm DOUBLE ROW RIGHT ANGLE TERMINAL STRIP
* = SEE NOTE 11
QTS-XXX-01-X-D-DP-RA-XX-XXX
BY:
DEAN P
DWG. NO.
F:\DWG\MISC\MKTG\QTS-XXX-01-X-D-DP-RA-XX-XXX-MKT.SLDDRW
2/13/2003
SHEET
2
OF
4
REVISION AG
((No OF POS / 16) x .7875[20.003]) + .330[8.38] REF
0.096 [2.44] REF
C
"A"
2 MAX SWAY
(EITHER DIRECTION)
FIG 2
-LS1 OPTION

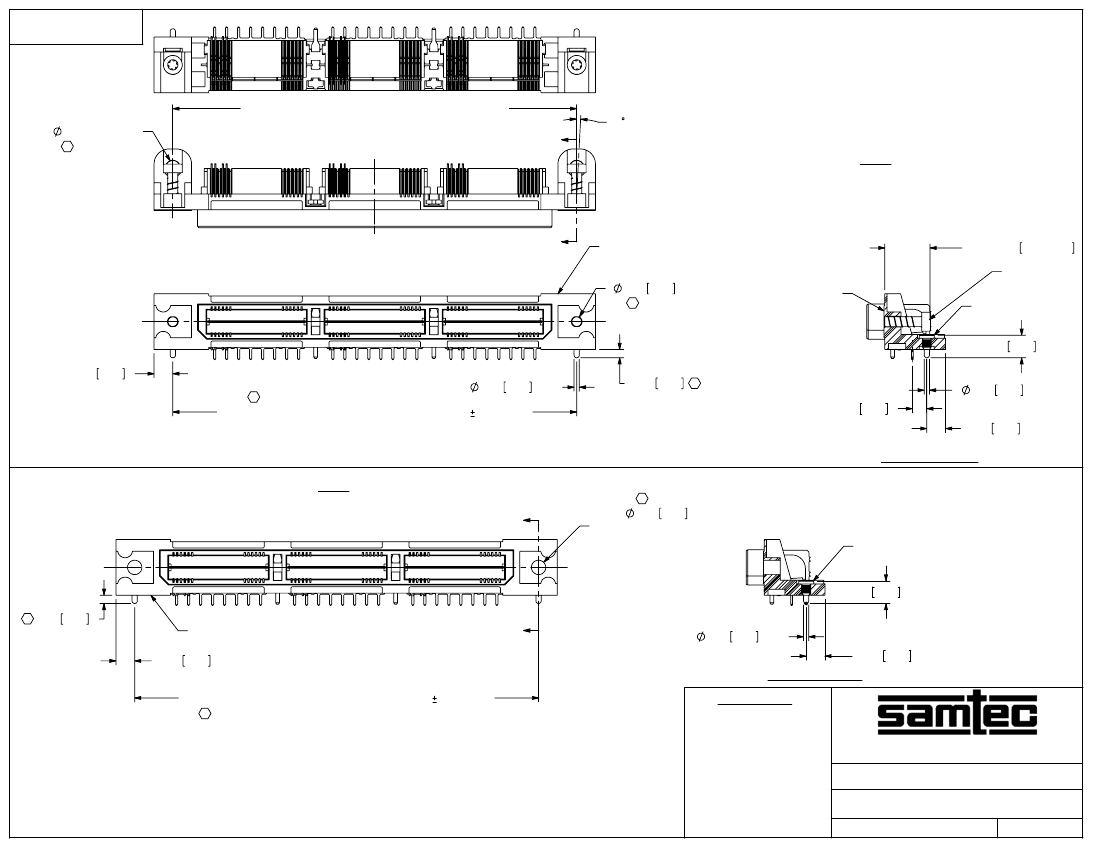

(QTS-048-01-X-D-DP-RA-WT-LS1 SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
"A"
QTS-25-01-D-XX-RA-LS1
SCREW CANNOT PROTRUDE
.072 1.83 REF
BEYOND THIS SURFACE
C
.301±.010 7.65±0.25
STS-02
(SEE NOTE 10)
SP-18-01-TM
.150 3.81 REF
.125 3.18
C
.035 0.89 REF
.055 1.40
C
.035 0.89 REF
.096 2.45
.125 3.18
(((No OF POS / 16) x .7875[20.003]) + .330[8.38]) .005[0.13]
SECTION "A"-"A"
FIG 3
-LS2 OPTION
(QTS-048-01-X-D-DP-RA-WT-LS2 SHOWN)
(SAME AS FIG 2, EXCEPT AS SHOWN)
"B"
C
.096 2.44 REF
(CLEARANCE HOLE FOR USE
WITH 2-56 SCREW)
SP-18-01-TM
.150 3.81 REF
C
.055 1.40
QTS-25-01-D-XX-RA-LS2
.125 3.18
(((No OF POS / 16) x .7875[20.003]) + .330[8.38]) .005[0.13]
C
"B"
.035 0.89 REF
.125 3.18
SECTION "B"-"B"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
.635mm DOUBLE ROW RIGHT ANGLE TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\QTS-XXX-01-X-D-DP-RA-XX-XXX-MKT.SLDDRW
BY:
DEAN P
QTS-XXX-01-X-D-DP-RA-XX-XXX
2/13/2003
SHEET
3
OF
4
REVISION AG
PPP-63
FIG 4
-P OPTION
(QTS-075-01-X-D-DP-RA-WT-P SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
.575 14.61
REF
{(NO OF POS x .0315 [0.800] + .005 [0.13])/2 .020 [0.51]
C
.900 22.86 REF
.195
- .010
4.95
- 0.25
+.005
+0.13
.433 11.00
REF
.300 7.62 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
.635mm DOUBLE ROW RIGHT ANGLE TERMINAL STRIP
QTS-XXX-01-X-D-DP-RA-XX-XXX
2/13/2003
SHEET
4
OF
4
F:\DWG\MISC\MKTG\QTS-XXX-01-X-D-DP-RA-XX-XXX-MKT.SLDDRW
BY:
DEAN P
