67-21SUGC/S400-X6/TR8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 67-21SUGC/S400-X6/TR8

67-21SUGC/S400-X6/TR8: DescriptionSingle Color LED, Brilliant Green, Water Clear, 2.4mm, ROHS COMPLIANT, PLASTIC, LCC-2; CategoryLED optoelectronic/LED photoelectric; File Size193KB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

67-21SUGC/S400-X6/TR8 Overview

Single Color LED, Brilliant Green, Water Clear, 2.4mm, ROHS COMPLIANT, PLASTIC, LCC-2

67-21SUGC/S400-X6/TR8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT, PLASTIC, LCC-2
Reach Compliance Code	compliant
color	BRILLIANT GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	500.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.9 mm
method of packing	TAPE AND REEL
peak wavelength	518 nm
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO.,LTD

Technical Data Sheet

TOP View LEDs

67-21SUGC/S400-XX/TR8

Features

․P-LCC-2

package.

․White

package.

․Optical

indicator.

․Colorless

clear window.

․Wide

viewing angle.

․Suitable

for vapor-phase reflow, Infrared reflow and

wave solder processes.

․Computable

with automatic placement equipment.

․Available

on tape and reel (8mm Tape).

․Pb-free

․The

product itself will remain within RoHS

compliant version.

Descriptions

․The

67-21 series is available in soft orange, green,

blue and yellow. Due to the package design, the LED

has wide viewing angle and optimized light coupling

by inter reflector. This feature makes the ideal for

light pipe application. The low current requirement

makes this device ideal for portable equipment or any

other application where power is at a premium.

Applications

․Automotive:

backlighting in dashboard and switch.

․Telecommunication:

indicator and backlighting in

telephone and fax.

․Flat

backlight for LCD, switch and symbol.

․Light

pipe application.

․General

use.

Device Selection Guide

Chip

Material

InGaN

Emitted Color

Brilliant Green

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No. : DSE-671-213

http://www.everlight.com

prepared date:20-Sep-2005

Rev. 3

Page: 1 of 9

Prepared by: Venis Wu

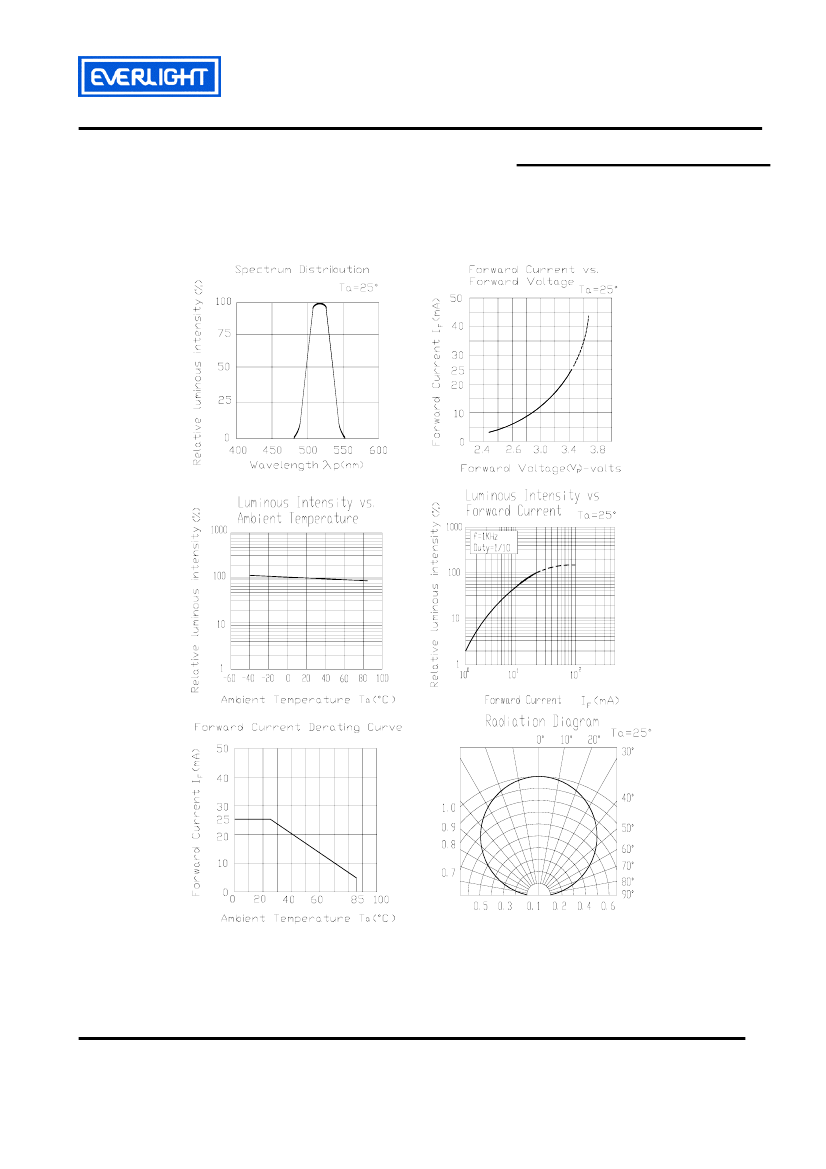

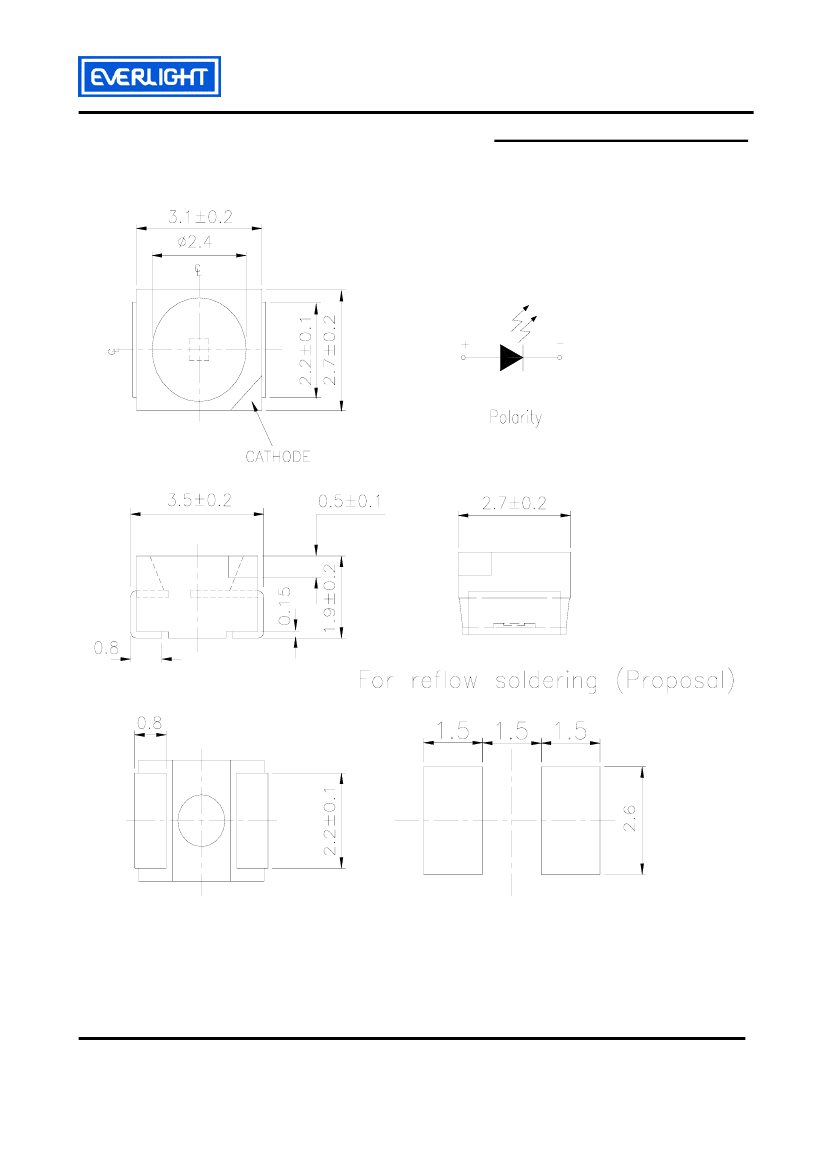

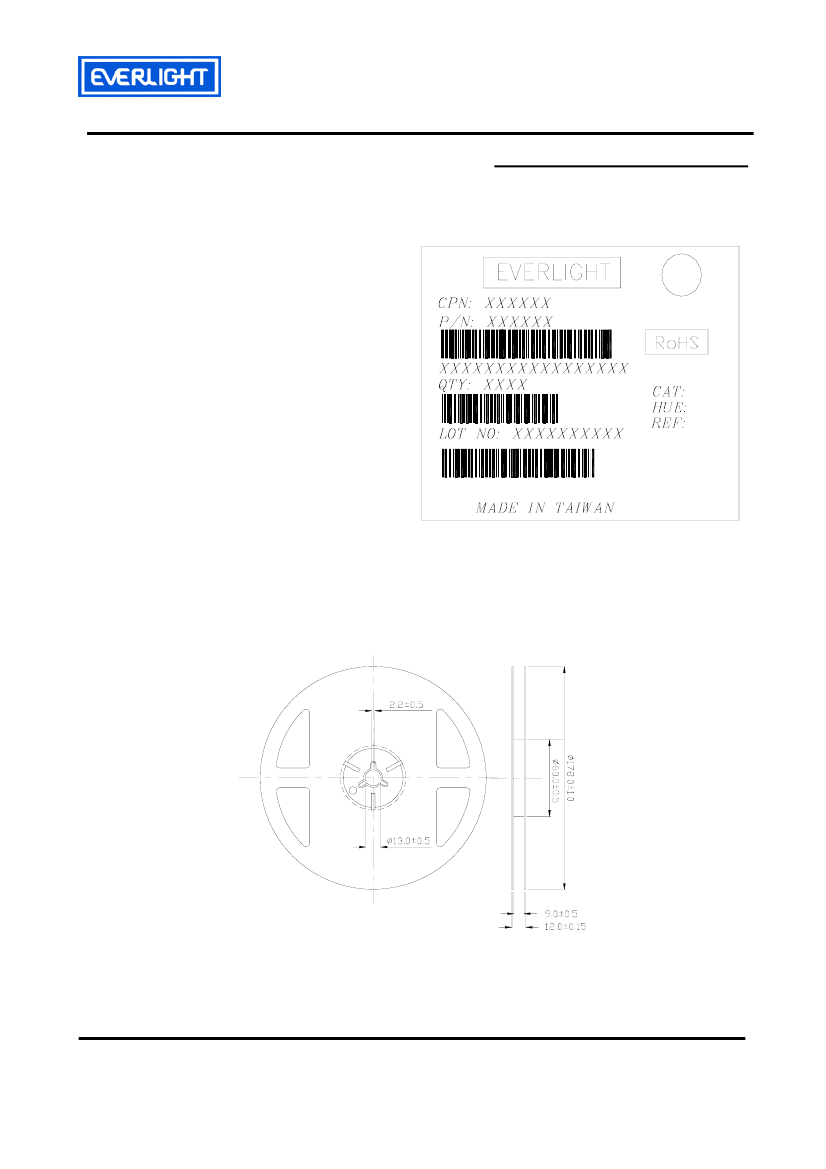

67-21SUGC/S400-X6/TR8 Related Products

	67-21SUGC/S400-X6/TR8	67-21SUGC/S400-A4/TR8	67-21SUGC/S400-A5/TR8
Description	Single Color LED, Brilliant Green, Water Clear, 2.4mm, ROHS COMPLIANT, PLASTIC, LCC-2	Single Color LED, Brilliant Green, Water Clear, 2.4mm, ROHS COMPLIANT, PLASTIC, LCC-2	Single Color LED, Brilliant Green, Water Clear, 2.4mm, ROHS COMPLIANT, PLASTIC, LCC-2
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	EVERLIGHT	EVERLIGHT	EVERLIGHT
package instruction	ROHS COMPLIANT, PLASTIC, LCC-2	ROHS COMPLIANT, PLASTIC, LCC-2	ROHS COMPLIANT, PLASTIC, LCC-2
Reach Compliance Code	compliant	compliant	compliant
color	BRILLIANT GREEN	BRILLIANT GREEN	BRILLIANT GREEN
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	500.0 mcd	279.0 mcd	432.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.9 mm	1.9 mm	1.9 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	518 nm	518 nm	518 nm
shape	ROUND	ROUND	ROUND
size	2.4 mm	2.4 mm	2.4 mm
surface mount	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm
perspective	120 deg	120 deg	120 deg
