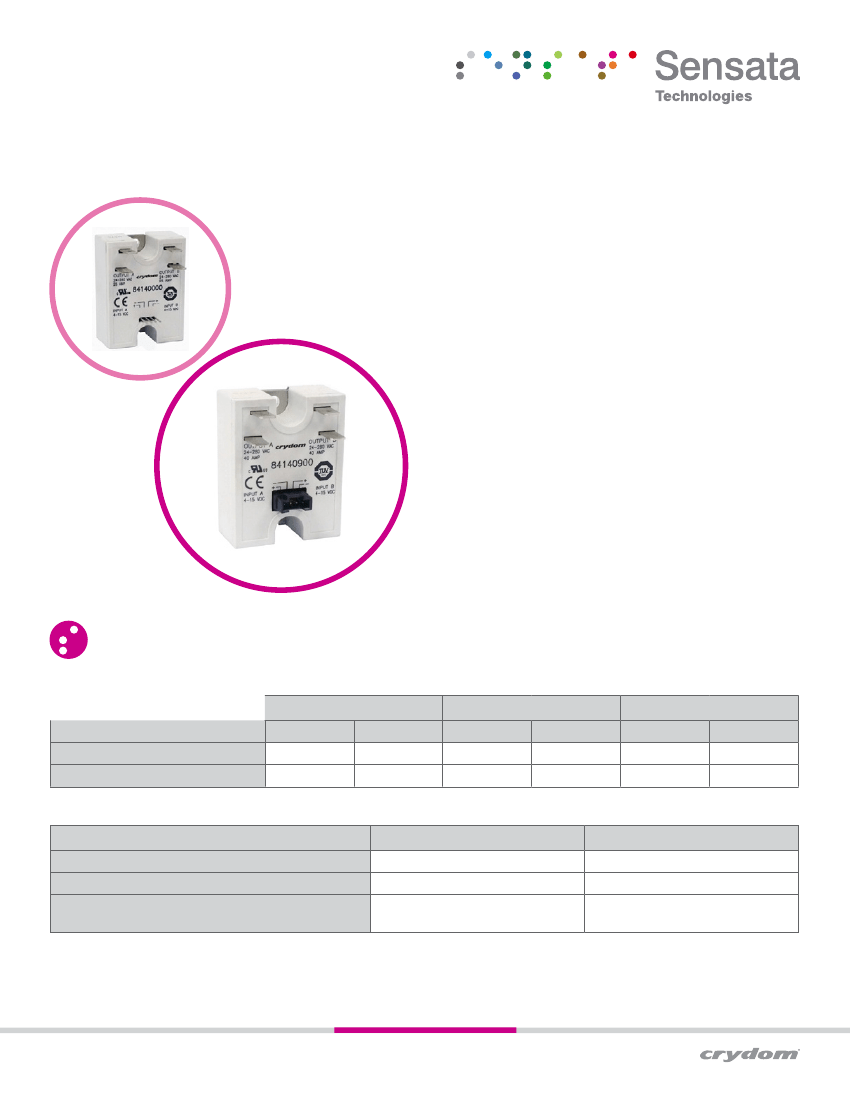

DUAL GN SERIES
PANEL MOUNT
Features
•
•
•
•
•
•
•
Current rating 25 and 40 Amps
Output voltage 24-280 VAC and 48-660 VAC
Direct bond copper substrate
Back to back dual SCR output
4000 VAC optical isolation
Zero Voltage and Instantaneous Turn-On
UL/cUL Recognized, CE Compliant
SPECIFICATIONS
Product Selection
1/4” Quick Connect 280 VAC
Control Voltage
4-15 VDC
17-32 VDC
25 A
84140000
84140410
1/4” Quick Connect 660 VAC
25 A
84140500
84140510
Locking Connector 280 VAC
25 A
84140800
84140810
40 A
84140200
84134210
40 A
84140600
84140610
40 A
84140900
84140910
Output Specifications
(1)
Description
Operating Voltage [Vrms]
Transient Voltage(t=1 min.) [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage
(@ max. line voltage) [mArms]
280 VAC
24-280
550
0.1
660 VAC
48-600
1000
0.25
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
Output Specifications
(1)
Description
Maximum Load Current [Arms]
Minimum Load Current [mArms]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
1 Second surge current (50/60 Hz @ Ta=25°C) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Maximum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
25 A
25
100
275/300
85
1.4
0.6
380/370
500
40 A
40
100
710/750
150
1.3
0.4
2520/2320
500
Input Specifications
(1)
Description
Control Voltage Range [Vdc]
Minimum Turn-On Voltage [Vdc]
Must Turn-Off Voltage [Vdc]
Minimum Input Current (for on-state) [mA]
Maximum Input Current [mA]
Nominal Input Impedance [Ohms]
Maximum Turn-On Time [msec]
(2)
Maximum Turn-Off Time [msec]
84140x0x
4-15
4
1
7.5
34
500
1/2 Cycle
1/2 Cycle
84140x1x
17-32
17
1
13
24
1500
General Specifications
(1)
Description
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Input to Output Isolation
Input/Output to Ground Isolation
Input to Output Capacitance
Operation Frequency
Housing Material
Weight (typical)
Parameters
-40 to 80°C
-40 to 100 °C
4000 Vrms
2500 Vrms
8 pF
47 to 63 Hz
UL94 V-0 (self extinguishing)
3.2 oz (91.5g)
MECHANICAL SPECIFICATIONS
(1)
Tolerance: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
1.78
[45.3]
0.18
[4.7]
0.56
[14.3]
1.17
[29.7]
1.00
[25.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
p
l
i
^f
q
a
b
^
=
v
p
o
q
b
i
1.87
[47.5]
1.21
[30.6]
Input A
+
-
+ Input B
0.86
[21.8]
2.30
[58.4]
1.31
[33.2]
-
0.60
[15.2]
0.74
[18.8]
Pin .025 SQ
.100 CENTERS
Mating Connector for 841408xxx and 841409xxx
Molex # 50-57-9404 without pins
Crimp Pins Molex # 16-02-0103
0.45
[11.5]
(4 places)
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

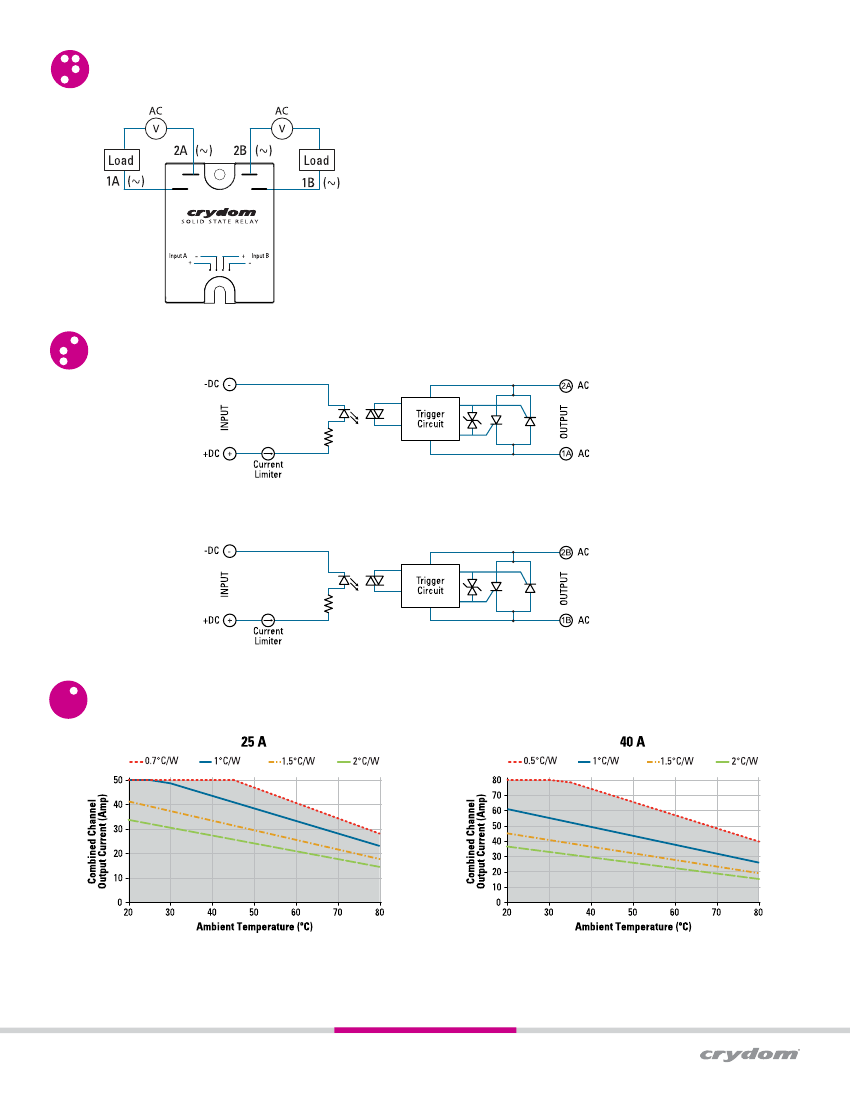

WIRING DIAGRAM
EQUIVALENT CIRCUIT BLOCK DIAGRAMS
THERMAL DERATE INFORMATION
Page 3
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
ORDERING OPTIONS
Example : 84140010
84140
0
1
0
Family
1/4” Quick Connect 280 VAC
1/4” Quick Connect 660 VAC
Locking Connector 280 VAC
Rated Load Current
1/4” Quick Connect 280 VAC
0 :
25 Amp/Zero Voltage Turn-On
1 :
25 Amp/Instantaneous Turn-On
2 :
40 Amp/Zero Voltage Turn-On
3 :
40 Amp/Instantaneous Turn-On
1/4” Quick Connect 660 VAC
5 :
25 Amp
6 :
40 Amp
Locking Connector 280 VAC
8 :
25 Amp
9 :
40 Amp
Control Voltage
1/4” Quick Connect 280 VAC
0 :
4-15 VDC
1 :
17-32 VDC
1/4” Quick Connect 660 VAC
0 :
4-15 VDC
1 :
17-32 VDC
Locking Connector 280 VAC
0 :
4-15 VDC
1 :
17-32 VDC
Operating Voltage
1/4” Quick Connect 280 VAC
0 :
24-280 VAC
1/4” Quick Connect 660 VAC
0 :
48-660 VAC/Zero Voltage Turn-On
1 :
48-660 VAC/Instantaneous Turn-On
Locking Connector 280 VAC
0 :
24-280 VAC/Zero Voltage Turn-On
1 :
24-280 VAC/Instantaneous Turn-On
GENERAL NOTES
(1)
(2)
All parameters at 25°C unless otherwise specified.
Turn-on time for Instantaneous turn-on versions is 0.02 msec.
For additional information or specific questions, contact Crydom Technical Support.
