MSU2958C16Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MSU2958C16Q

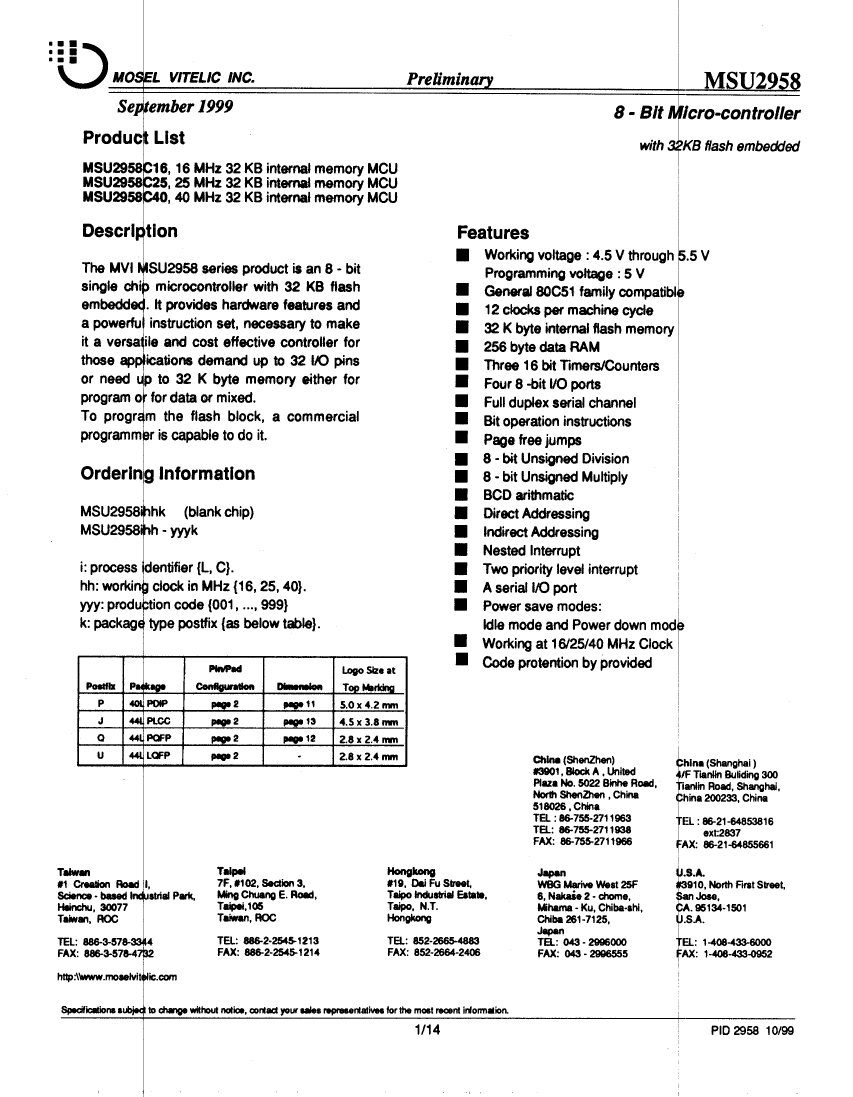

MSU2958C16Q: DescriptionMicrocontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size986KB，13 Pages; ManufacturerMosel Vitelic Corporation ( MVC ); Websitehttp://www.moselvitelic.com

Download Datasheet Parametric Compare View All

MSU2958C16Q Overview

Microcontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44

MSU2958C16Q Parametric

Parameter Name	Attribute value
Maker	Mosel Vitelic Corporation ( MVC )
Parts packaging code	QFP
package instruction	PLASTIC, QFP-44
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
length	10 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.5SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	32768
ROM programmability	FLASH
Maximum seat height	2.55 mm
speed	16 MHz
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

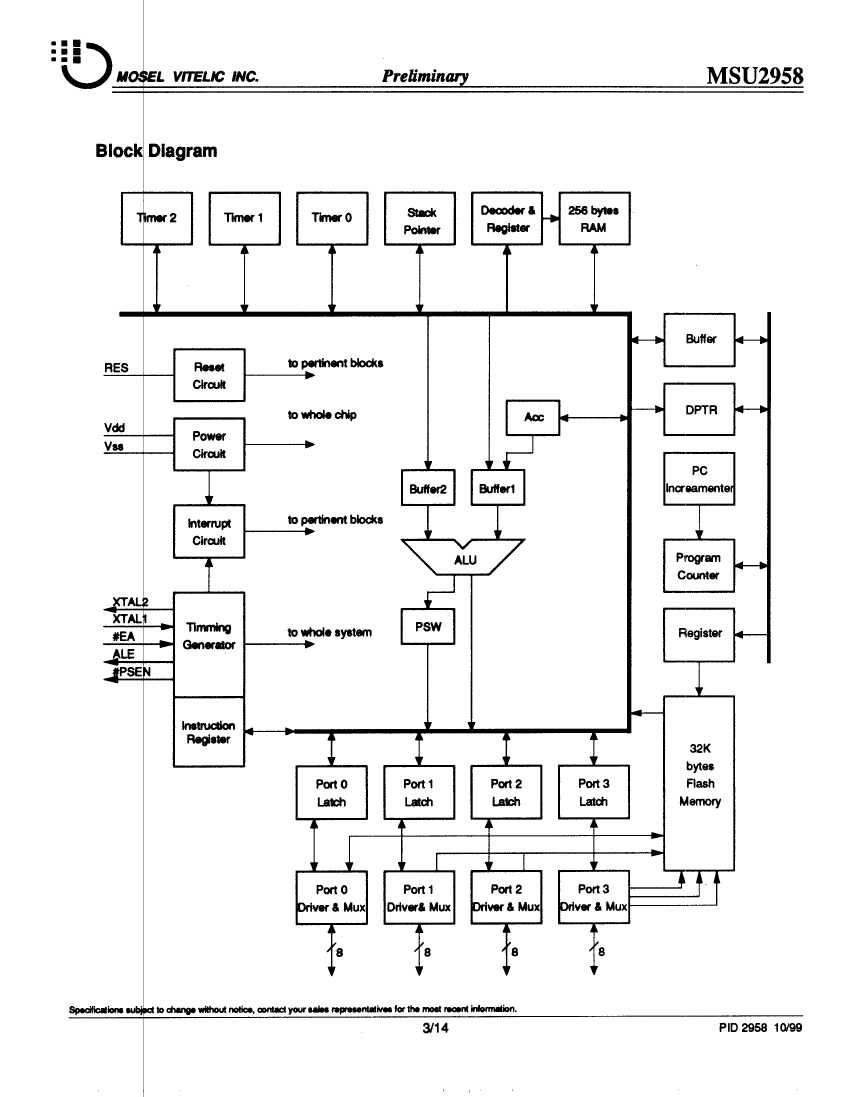

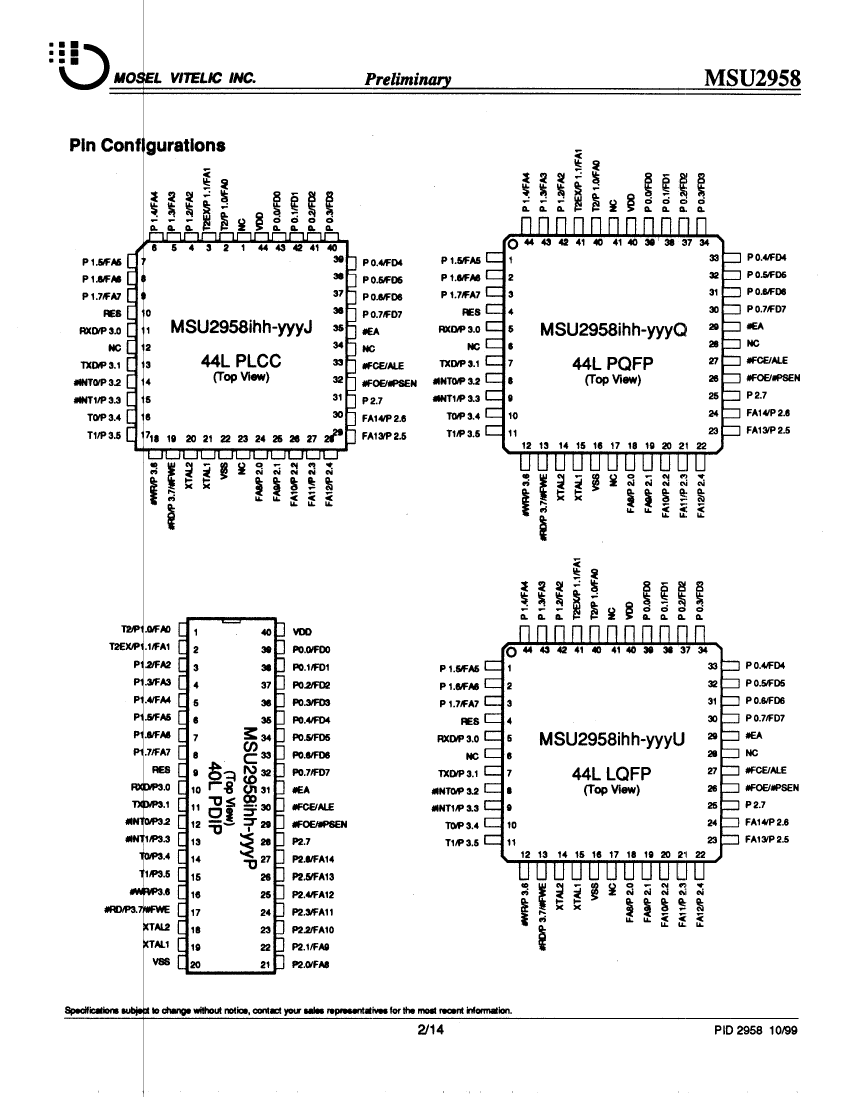

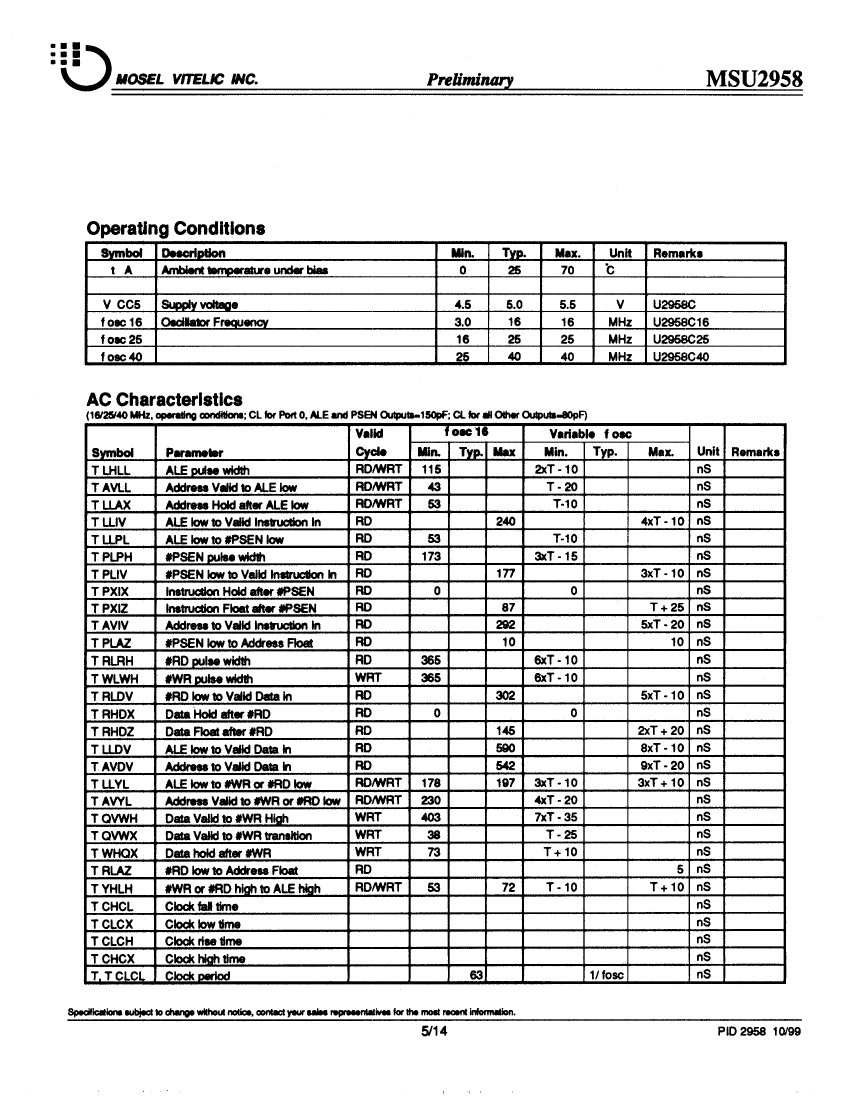

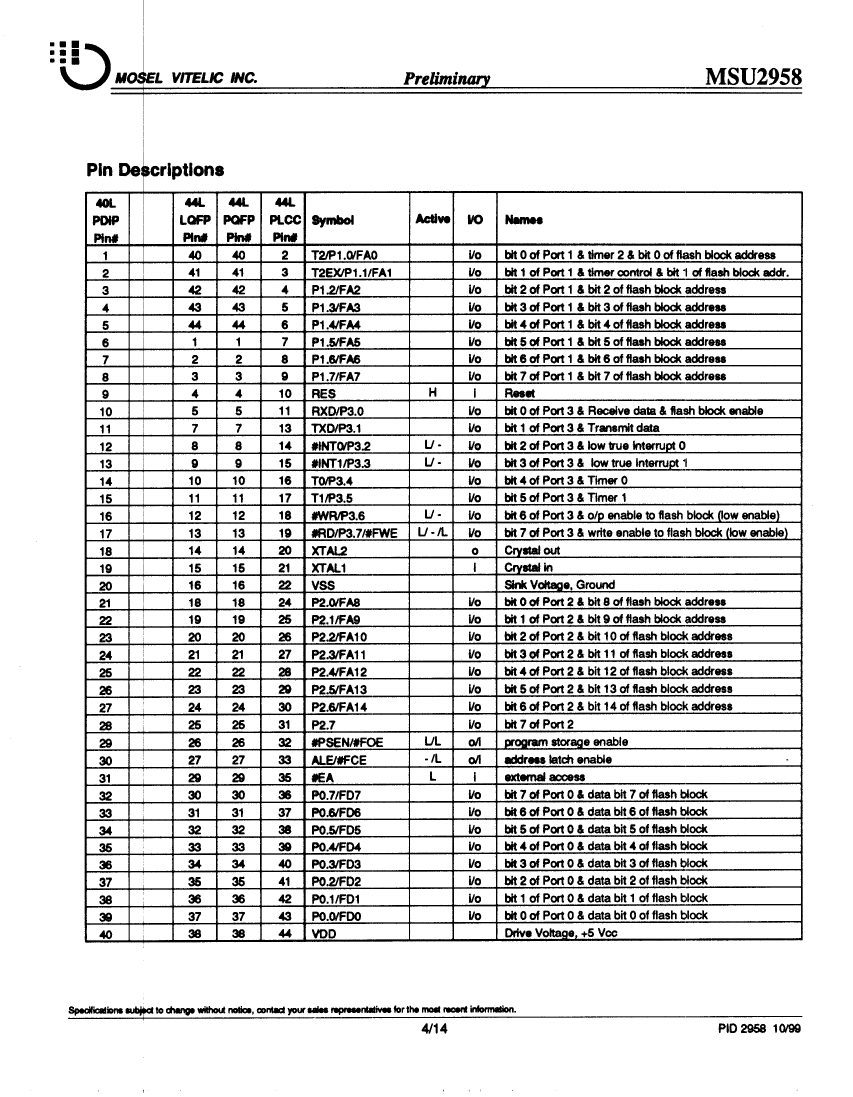

Preview

Download Datasheet

View All

MSU2958C16Q Related Products

	MSU2958C16Q	MSU2958C25U	MSU2958C16U	MSU2958C25J	MSU2958C25Q	MSU2958C40J	MSU2958C40Q	MSU2958C40U	MSU2958C16J
Description	Microcontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 25MHz, CMOS, PQFP44, LQFP-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PQFP44, LQFP-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 25MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 25MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 40MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 40MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 40MHz, CMOS, PQFP44, LQFP-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44
Maker	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )
Parts packaging code	QFP	QFP	QFP	LCC	QFP	LCC	QFP	QFP	LCC
package instruction	PLASTIC, QFP-44	LQFP-44	LQFP-44	PLASTIC, LCC-44	PLASTIC, QFP-44	PLASTIC, LCC-44	PLASTIC, QFP-44	LQFP-44	PLASTIC, LCC-44
Contacts	44	44	44	44	44	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051	8051	8051	8051
maximum clock frequency	16 MHz	25 MHz	16 MHz	25 MHz	25 MHz	40 MHz	40 MHz	40 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8	8
JESD-30 code	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44	S-PQFP-G44	S-PQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44
length	10 mm	10 mm	10 mm	16.5862 mm	10 mm	16.5862 mm	10 mm	10 mm	16.5862 mm
Number of I/O lines	32	32	32	32	32	32	32	32	32
Number of terminals	44	44	44	44	44	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QCCJ	QFP	QCCJ	QFP	QFP	QCCJ
Encapsulate equivalent code	QFP44,.5SQ,32	QFP44,.47SQ,32	QFP44,.47SQ,32	LDCC44,.7SQ	QFP44,.5SQ,32	LDCC44,.7SQ	QFP44,.5SQ,32	QFP44,.47SQ,32	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256	256	256	256	256	256
rom(word)	32768	32768	32768	32768	32768	32768	32768	32768	32768
ROM programmability	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
Maximum seat height	2.55 mm	2.55 mm	2.55 mm	4.7 mm	2.55 mm	4.7 mm	2.55 mm	2.55 mm	4.7 mm
speed	16 MHz	25 MHz	16 MHz	25 MHz	25 MHz	40 MHz	40 MHz	40 MHz	16 MHz
Maximum slew rate	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	J BEND	GULL WING	J BEND	GULL WING	GULL WING	J BEND
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	1.27 mm	0.8 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	10 mm	10 mm	10 mm	16.5862 mm	10 mm	16.5862 mm	10 mm	10 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
