452802053 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 452802053

452802053: Description3.00mm (.118") Pitch Micro-Fit 3.0 BMI CPI垄芒 Compliant Pin Header, Blind Mate Interface, Dual Row, Vertical, 20 Circuits, PA Polyamide Nylon 4/6, UL 94V-0, 0.76楼矛m (30楼矛") Gold (Au) Selective Contact Plating, Tin (Sn) Tail Plating; CategoryThe connector The connector; File Size135KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

452802053 Overview

3.00mm (.118") Pitch Micro-Fit 3.0 BMI CPI垄芒 Compliant Pin Header, Blind Mate Interface, Dual Row, Vertical, 20 Circuits, PA Polyamide Nylon 4/6, UL 94V-0, 0.76楼矛m (30楼矛") Gold (Au) Selective Contact Plating, Tin (Sn) Tail Plating

452802053 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Board mount options	HOLE .055-.063
body width	0.469 inch
subject depth	0.457 inch
body length	1.457 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	45280
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	2.9972 mm
Termination type	PRESS FIT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0452802053

Active

microfit_30

3.00mm (.118") Pitch Micro-Fit 3.0 BMI CPI™ Compliant Pin Header, Blind Mate

Interface, Dual Row, Vertical, 20 Circuits, PA Polyamide Nylon 4/6, UL 94V-0, 0.76µm

(30µ") Gold (Au) Selective Contact Plating, Tin (Sn) Tail Plating

Documents:

3D Model

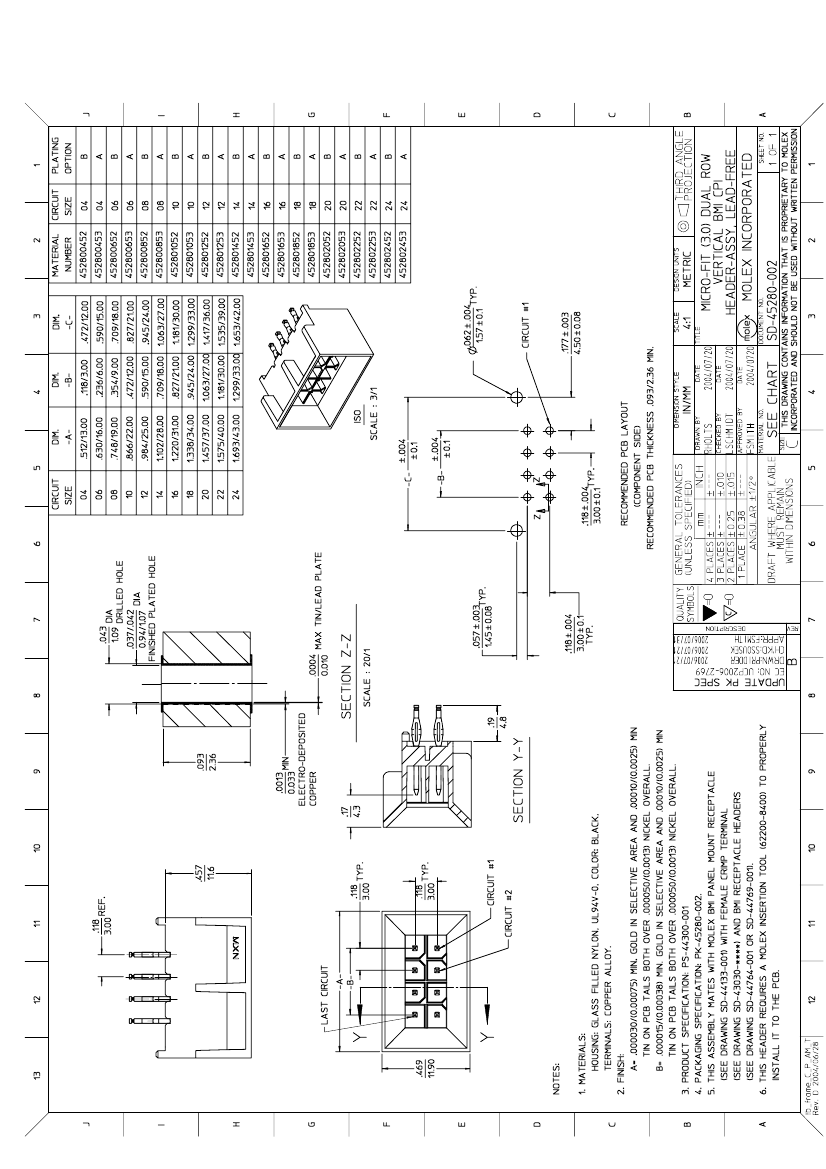

Drawing (PDF)

Product Specification PS-44300-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

General

Product Family

Series

Application

Application Tooling Part Link

Overview

Product Literature Order No

Product Name

PCB Headers

45280

Board-to-Board, Wire-to-Board

622008400

microfit_30

USA-106

Micro-Fit 3.0 BMI CPI™

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Halo

Need mo

environm

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Black

94V-0

Yes

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

Vertical

0.189 In

4.80 mm

Yes

Tray

0.118 In

3.00 mm

0.75

100

2.5

Yes

Fully

Email pro

For a mu

Complian

Please vi

non-prod

45280S

Mates

44769-

44764-

Header

Recept

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Micro-F

Compli

Insertio

Tool
