Part Number:
Status:
Overview:
Description:
0855425001
Active
modular_plugs_jacks
Modular Jack, Right Angle, Low Profile, Shielded, SMT, 8/8
Documents:
3D Model

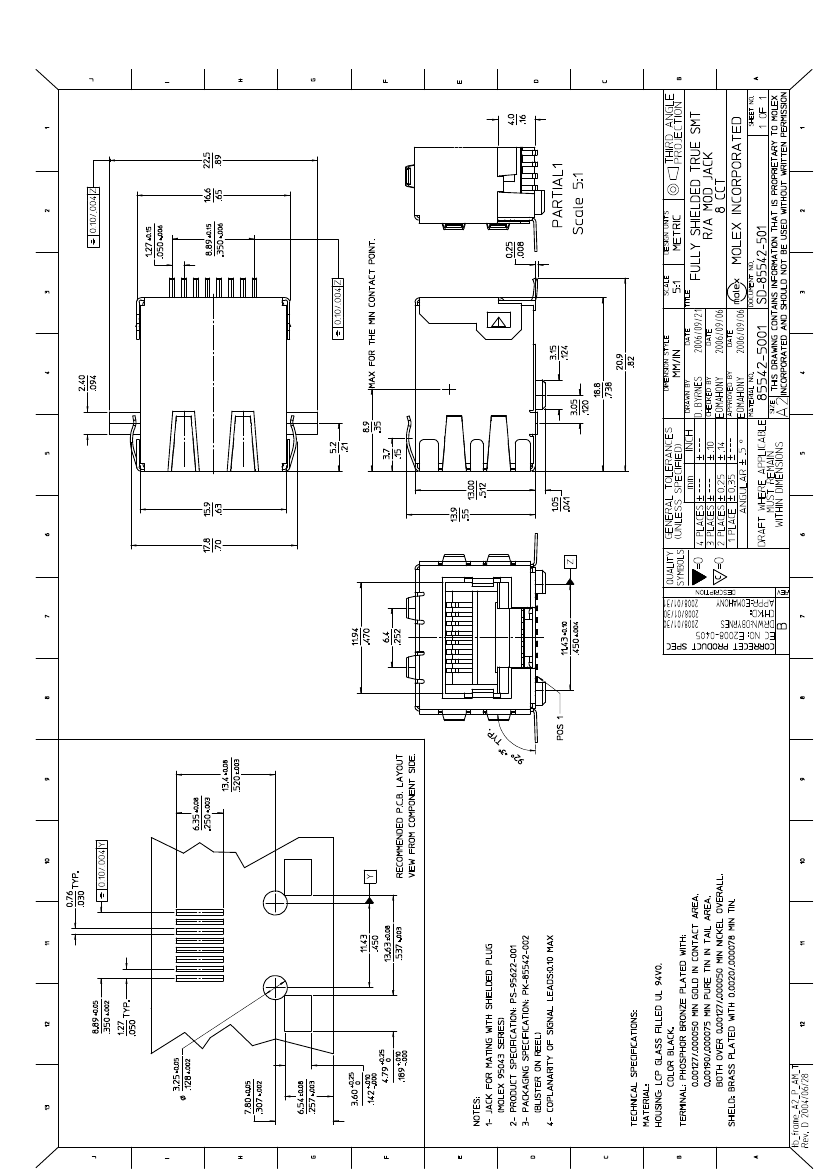

Drawing (PDF)
Application Specification (PDF)
Product Specification PS-95622-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
Modular Jacks/Plugs
85542
Enhanced panel grounding tabs
PCB Jack
No
modular_plugs_jacks
3
N/A
RJ45
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Inverted / Top Latch
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
N/A
Black
500
No
None
Brass, Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Right Angle (Side Entry)
Yes
Yes
Embossed Tape on Reel
0.040 In
1.02 mm
0.050 In
1.27 mm
50.8
1.27
76
1.9
1
8/8
Yes
-40°C to +80°C
Surface Mount
No
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
85542S
Mates
FCC 68
Electrical
Current - Maximum per Contact
Grounding to Panel
Shielded
Voltage - Maximum
1.5A
Additional Grounding Springs
Yes
125V AC (RMS)
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
45
Reflow Capable (SMT only)
3
260
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-85542-002
PS-95622-001
SD-85542-501
