IPT345070162AVF7 datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPT345070162AVF7

IPT345070162AVF7: DescriptionCircular Connector Adapter; CategoryThe connector The connector; File Size505KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

IPT345070162AVF7 Overview

Circular Connector Adapter

IPT345070162AVF7 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector type	CIRCULAR CONNECTOR ADAPTER
Manufacturer's serial number	IPT345

Preview

Download Datasheet

View All

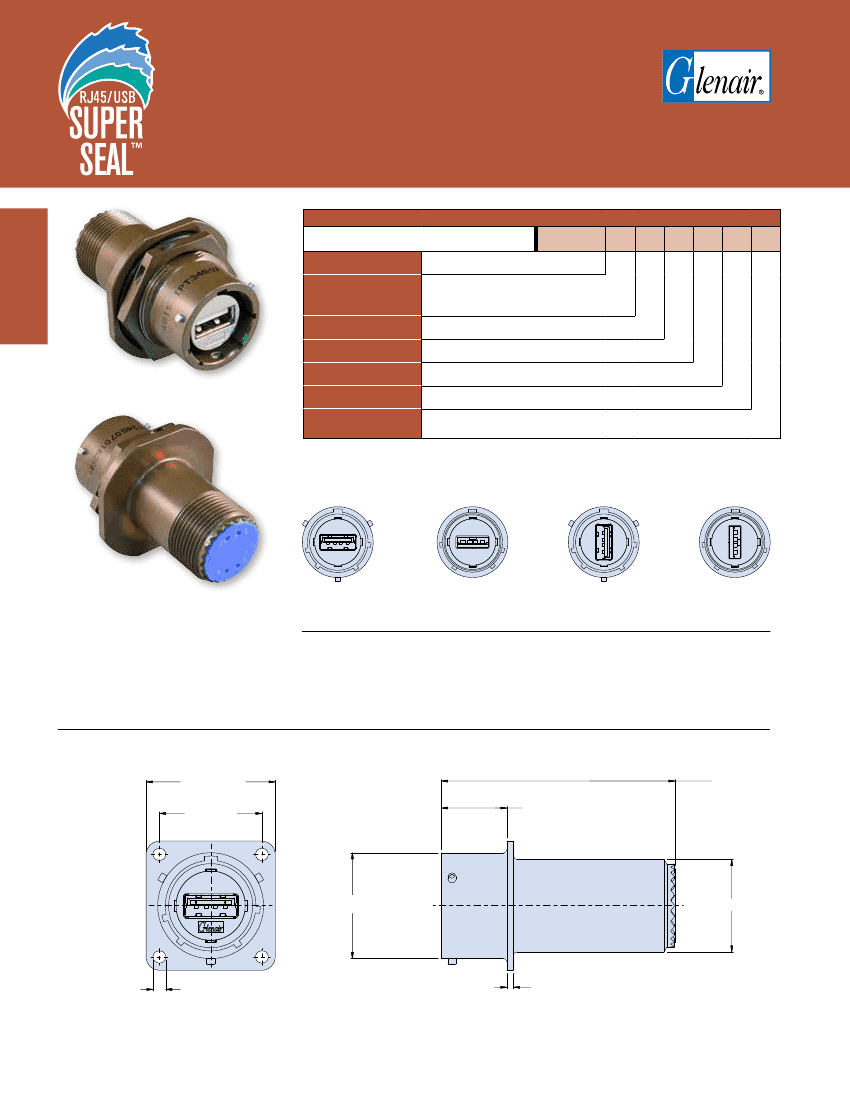

USB 2.0 TYPE A

Series IPT (26482 Type) Bayonet Coupler

IPT345 Connectors with USB Male (Plug) or Female

(Receptacle) Interface to Crimp Removable Contacts

How to Order

Sample Part Number

IPT345

Basic Number

Connector Style

Shell Size

USB Performance

USB Rear Jack Type

Orientation Option

Material/Finish

= Wall Mount Receptacle

070

= Rear Panel Mount Jam Nut Receptacle

= Straight Plug

= 2.0

= Type A

= Horizontal

= Vertical

= Black Polymer Electrocoat

F11

= Electroless Nickel

Omit

for Cadmium/Olive Drab

= Conductive Black Zinc Nickel

USB Orientation Options

Receptacle

Plug

Receptacle

Plug

Horizontal

Vertical

NOTES

1. See Section A for panel cutout dimensions

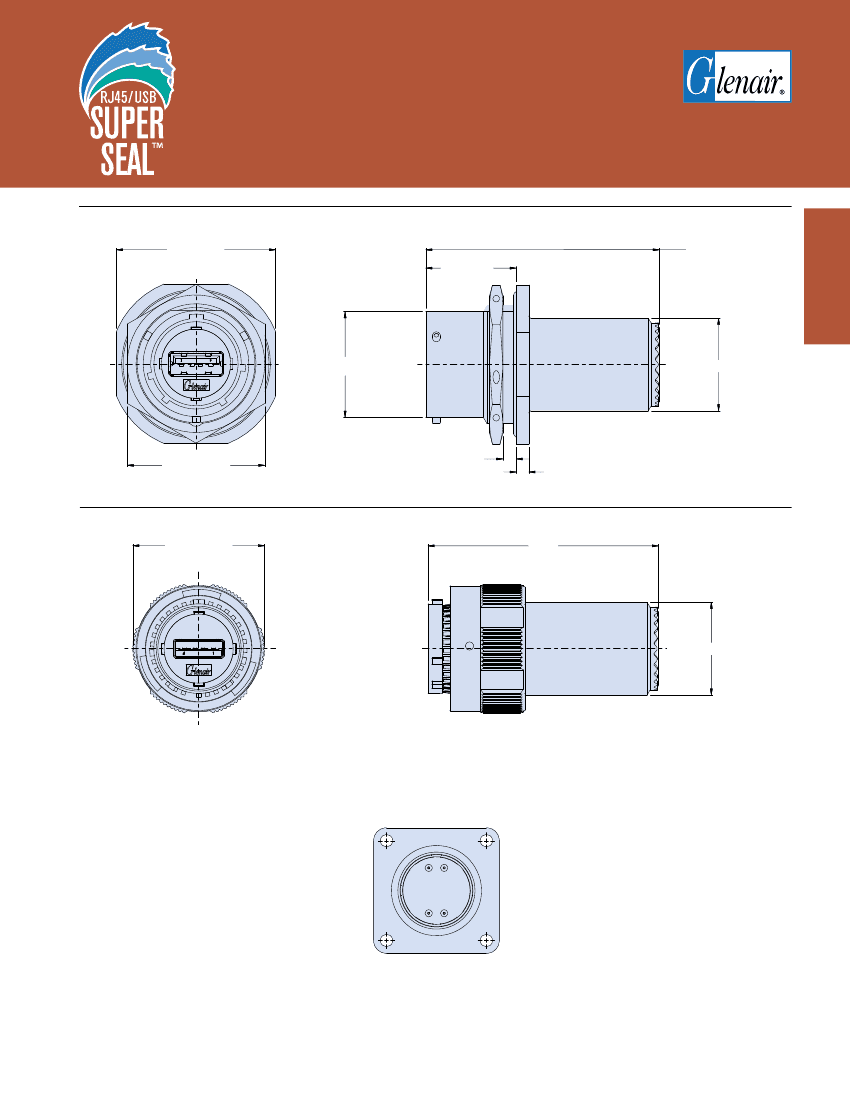

00 - WALL MOUNT RECEPTACLE WITH ACCESSORY THREADS

1.2201 ±.016

(31.0 ±.4)

.969 ±.004

(24.6 ±.1)

2.209

(56.1) Max

.618(15.7) +.004(+.1)

-.0(-.0)

Ø1.000(25.40) +.0(+.00)

-.004(-.10)

7/8-20 UNEF-2A

Ø.122±.005

(3.1 ±.12)

.063 ±.004

(1.6 ±.1)

G-8

Dimensions in Inches (millimeters) are subject to change without notice.

IPT345070162AVF7 Related Products

	IPT345070162AVF7	IPT345070162AV	IPT345070162AHF6	IPT345070162AVF6	IPT345070162AVF11	IPT345070162AHF11	IPT345070162AHF7	IPT345070162AH
Description	Circular Connector Adapter	Circular Connector Adapter	Circular Connector Adapter	Circular Connector Adapter	Circular Connector Adapter	Circular Connector Adapter	Circular Connector Adapter	Circular Connector Adapter
Maker	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER
Manufacturer's serial number	IPT345	IPT345	IPT345	IPT345	IPT345	IPT345	IPT345	IPT345
