MSS1260-332NXB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MSS1260-332NXB

MSS1260-332NXB: DescriptionGeneral Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, 4848, CHIP; CategoryPassive components inductor; File Size93KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

MSS1260-332NXB Overview

General Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, 4848, CHIP

MSS1260-332NXB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	COILCRAFT
package instruction	4848
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4848
structure	Flat Top
DC Resistance	0.016 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	MSS1260
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	6 mm
Package length	12.3 mm
Package form	SMT
Package width	12.3 mm
method of packing	TR
Maximum rated current	6.5 A
self resonant frequency	42 MHz
series	MSS1260
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

Document 281-1

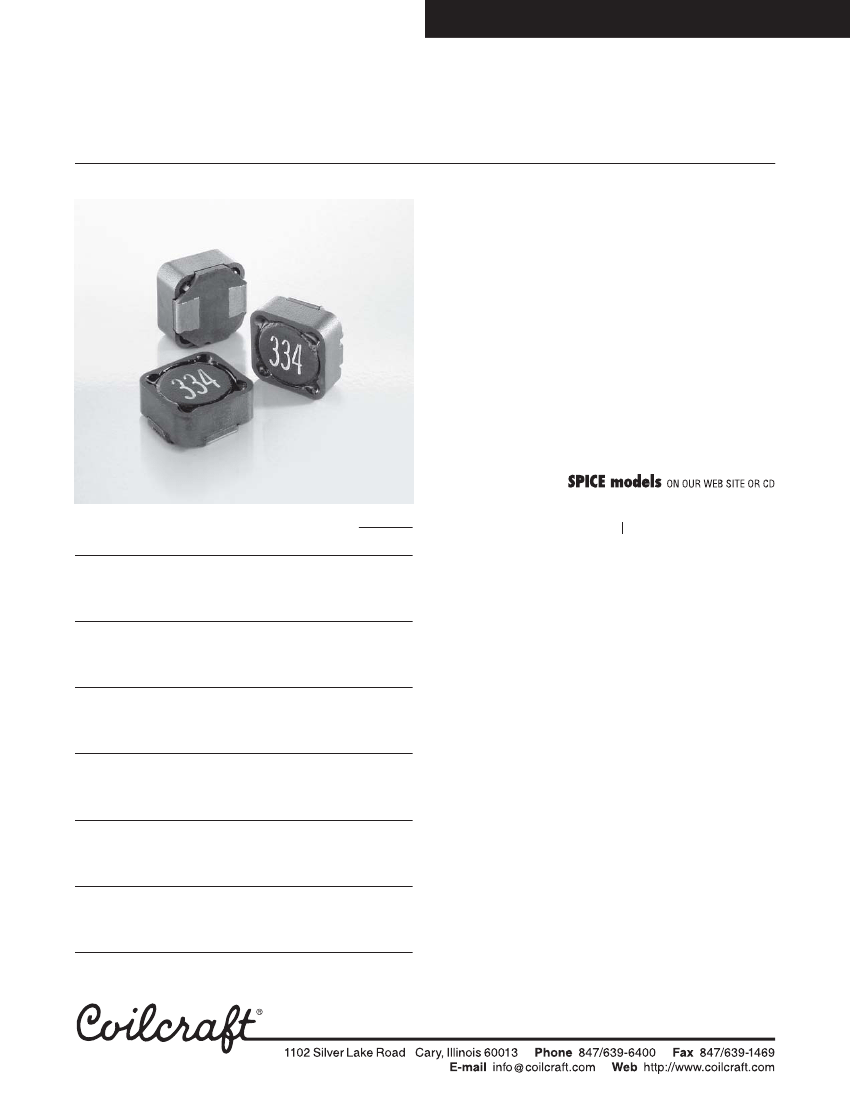

SMT Power Inductors - MSS1260 Series

The MSS1260 Series provides high inductance and high

efficiency in a low profile, low cost part.

The magnetic shielding and small footprint of these induc-

tors allows high density mounting. The flat top ensures

reliable pick and place handling.

They’re ideal for use in DC-DC converters, LCD panels, and

portable devices where low cost and high reliabilty are

critical.

In addition to the standard values shown, Coilcraft can

custom-engineer versions to meet specific applications.

Coilcraft

Designer’s Kit C160

contains samples of all

values shown. To order, contact Coilcraft or purchase on-

line at

http://order.coilcraft.com.

Part number

(µH)

1.0 ±30%

1.5 ±30%

2.2 ±30%

3.3 ±30%

4.7 ±20%

5.6 ±20%

6.8 ±20%

8.2 ±20%

10 ±20%

12 ±20%

15 ±20%

18 ±20%

22 ±20%

27 ±20%

33 ±20%

39 ±20%

47 ±20%

56 ±20%

68 ±20%

82 ±20%

100 ±20%

120 ±10%

150 ±10%

180 ±10%

220 ±10%

270 ±10%

330 ±10%

390 ±10%

470 ±10%

560 ±10%

680 ±10%

820 ±10%

1000 ±10%

Irms

(A)

DCR

SRF

max typ

Isat

20°C 40°C

( ) (MHz) (A)

rise rise

0.010 100.0 10.00

0.013 80.0 8.50

0.014 55.0 7.50

0.016 42.0 6.50

0.020 33.0 5.80

0.022 30.0 5.30

0.023 27.0 4.90

0.025 26.0 4.40

0.028 22.0 4.00

0.032 20.0 3.60

0.040 18.0 3.30

0.045 16.0 3.00

0.052 15.0 2.70

0.065 13.0 2.40

0.075 12.4 2.20

0.080 12.0 2.00

0.100 11.6 1.85

0.120 10.5 1.70

0.130 10.0 1.55

0.160

8.6 1.40

0.190

7.8 1.25

0.250

6.8 1.15

0.280

6.4 1.00

0.320

6.1 0.95

0.420

5.5 0.85

0.480

4.3 0.75

0.630

4.0 0.70

0.700

3.6 0.65

0.900

3.0 0.58

1.000

2.8 0.53

1.200

2.6 0.48

1.600

2.5 0.44

1.850

2.4 0.40

6.00

5.50

5.00

4.50

4.00

3.80

3.40

3.00

2.80

2.60

2.50

2.30

2.10

2.00

1.90

1.85

1.75

1.70

1.60

1.50

1.38

1.20

1.14

1.00

0.90

0.84

0.78

0.70

0.64

0.58

0.53

0.48

8.00

7.50

7.00

6.40

5.90

4.80

4.00

3.70

3.50

3.30

3.10

2.90

2.70

2.60

2.50

2.40

2.30

2.20

2.10

1.85

1.66

1.58

1.42

1.45

1.16

1.08

0.96

0.88

0.80

0.73

0.68

1. When ordering, please specify

packaging

code:

MSS1260-184KXD

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (500 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter D instead.

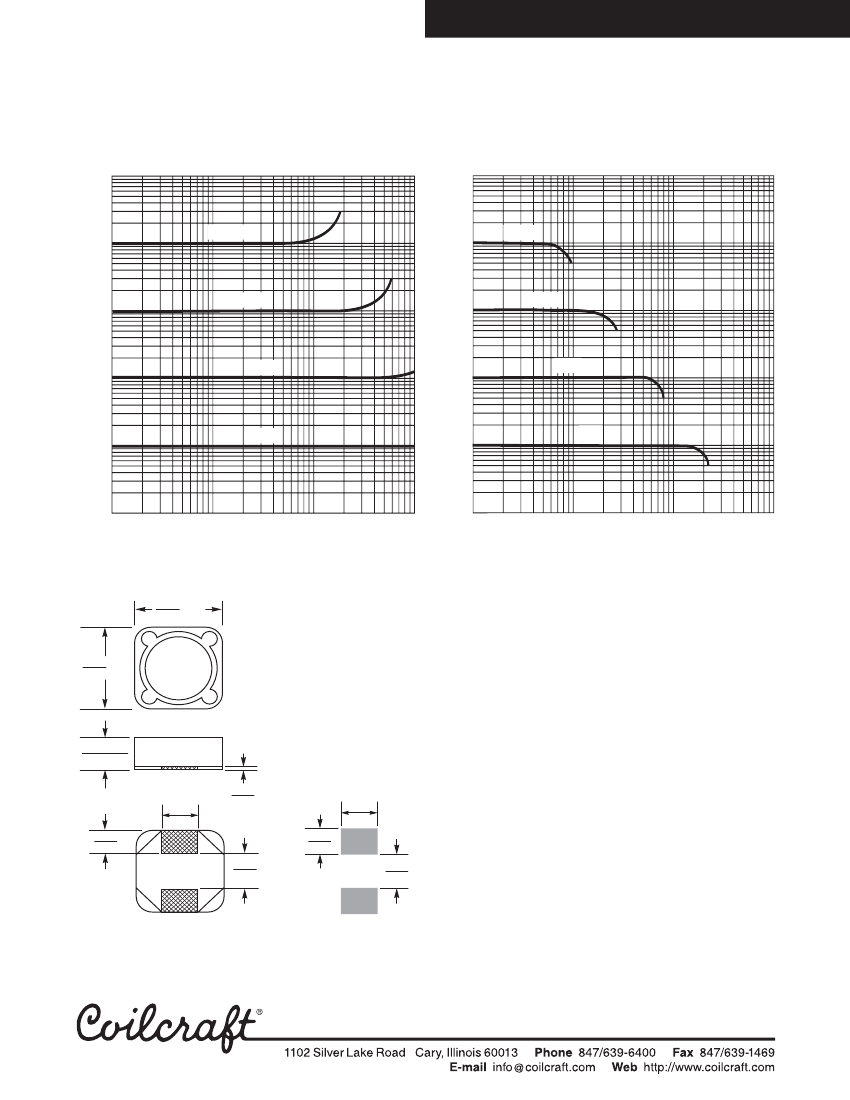

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on Agilent/HP 4284A

LC meter or equivalent.

3. SRF measured using Agilent/HP 4191A or equivalent.

4. DC current at which the inductance drops 10% (typ) from its value

without current.

5. Average current for specified temperature rise from 25°C ambient.

6. Operating temperature range -40°C to +85°C.

7. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

MSS1260-102NX_

MSS1260-152NX_

MSS1260-222NX_

MSS1260-332NX_

MSS1260-472MX_

MSS1260-562MX_

MSS1260-682MX_

MSS1260-822MX_

MSS1260-103MX_

MSS1260-123MX_

MSS1260-153MX_

MSS1260-183MX_

MSS1260-223MX_

MSS1260-273MX_

MSS1260-333MX_

MSS1260-393MX_

MSS1260-473MX_

MSS1260-563MX_

MSS1260-683MX_

MSS1260-823MX_

MSS1260-104MX_

MSS1260-124KX_

MSS1260-154KX_

MSS1260-184KX_

MSS1260-224KX_

MSS1260-274KX_

MSS1260-334KX_

MSS1260-394KX_

MSS1260-474KX_

MSS1260-564KX_

MSS1260-684KX_

MSS1260-824KX_

MSS1260-105KX_

Specifications subject to change without notice.

Please check our website for latest information. Document 281-1

Revised 09/14/03
