D38999/33W13R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> D38999/33W13R

D38999/33W13R: DescriptionConnector Accessory, Cover Item, Aluminum Alloy; CategoryThe connector Connector bracket; File Size192KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

D38999/33W13R Overview

Connector Accessory, Cover Item, Aluminum Alloy

D38999/33W13R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Factory Lead Time	17 weeks
Related military specifications	MIL-DTL-38999
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Material	ALUMINUM ALLOY
Military connector accessories name	COVER ITEM
Housing size	13

Preview

Download Datasheet

View All

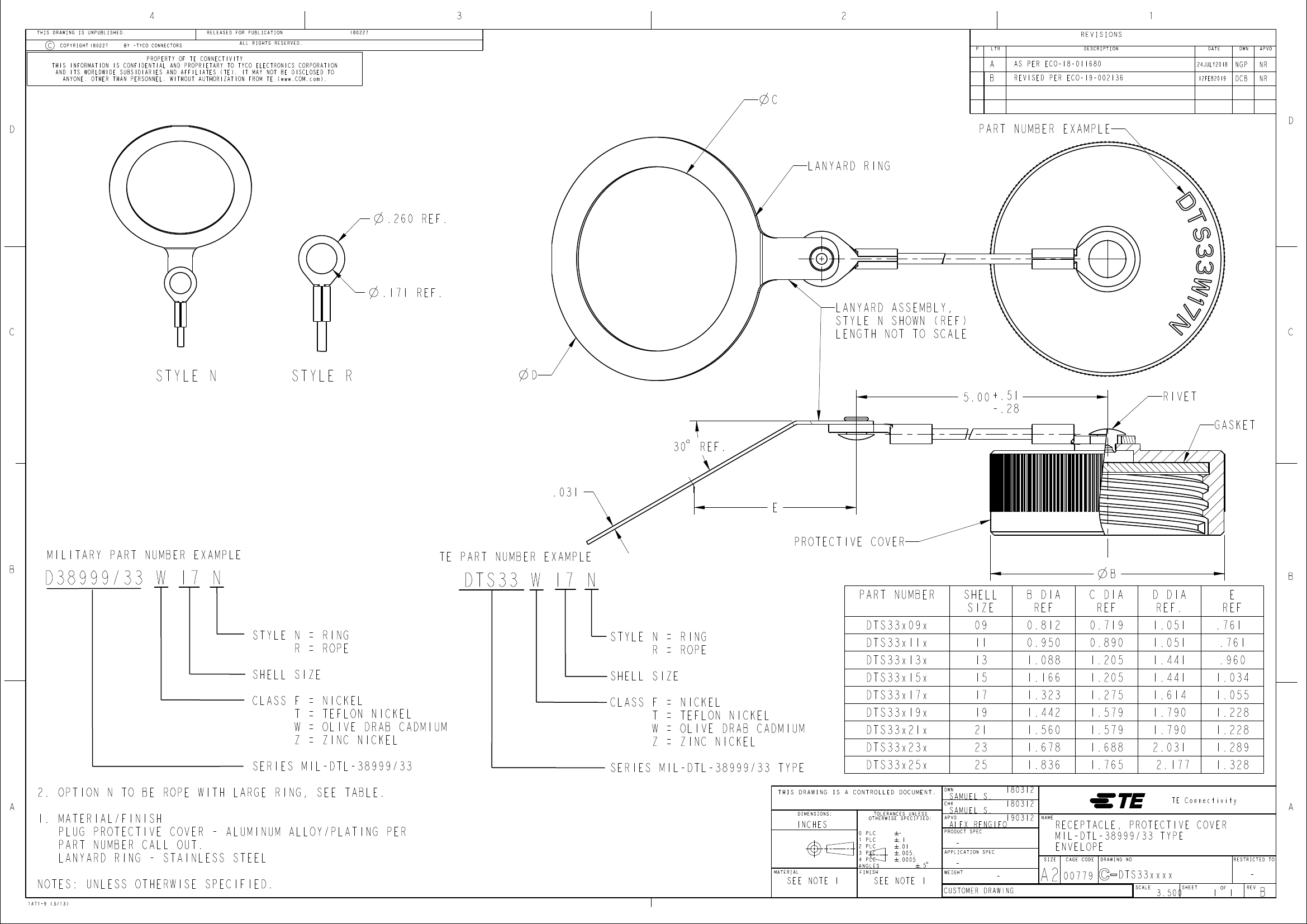

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -TYCO CONNECTORS

180227

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

PROPERTY OF TE CONNECTIVITY

THIS INFORMATION IS CONFIDENTIAL AND PROPRIETARY TO TYCO ELECTRONICS CORPORATION

AND ITS WORLDWIDE SUBSIDIARIES AND AFFILIATES (TE). IT MAY NOT BE DISCLOSED TO

ANYONE. OTHER THAN PERSONNEL. WITHOUT AUTHORIZATION FROM TE (www.COM.com).

AS PER ECO-18-011680

REVISED PER ECO-19-002136

24JULY2018

12FEB2019

NGP

DCB

PART NUMBER EXAMPLE

LANYARD RING

.260 REF.

.171 REF.

LANYARD ASSEMBLY,

STYLE N SHOWN (REF)

LENGTH NOT TO SCALE

STYLE N

STYLE R

5.00 +.51

-.28

30 $REF.

.031

RIVET

GASKET

PROTECTIVE COVER

D38999/33 W 17 N

MILITARY PART NUMBER EXAMPLE

TE PART NUMBER EXAMPLE

DTS33 W 17 N

STYLE N = RING

R = ROPE

SHELL SIZE

PART NUMBER

DTS33x09x

DTS33x11x

DTS33x13x

DTS33x15x

NICKEL

TEFLON NICKEL

OLIVE DRAB CADMIUM

ZINC NICKEL

DTS33x17x

DTS33x19x

DTS33x21x

DTS33x23x

DTS33x25x

DWN

CHK

DIMENSIONS:

SHELL

SIZE

SAMUEL S.

B DIA

REF

0.812

0.950

1.088

1.166

1.323

1.442

1.560

1.678

1.836

180312

NAME

C DIA

REF

STYLE N = RING

R = ROPE

SHELL SIZE

CLASS F

NICKEL

TEFLON NICKEL

OLIVE DRAB CADMIUM

ZINC NICKEL

0.719

0.890

1.205

1.275

1.579

1.688

1.765

D DIA

REF.

1.051

1.441

1.614

1.790

2.031

2.177

.761

REF

.761

.960

1.034

1.055

1.228

1.289

1.328

CLASS F

SERIES MIL-DTL-38999/33

SERIES MIL-DTL-38999/33 TYPE

2. OPTION N TO BE ROPE WITH LARGE RING, SEE TABLE.

1. MATERIAL/FINISH

PLUG PROTECTIVE COVER - ALUMINUM ALLOY/PLATING PER

PART NUMBER CALL OUT.

LANYARD RING - STAINLESS STEEL

NOTES: UNLESS OTHERWISE SPECIFIED.

1471-9 (3/13)

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005.

.0005

PRODUCT SPEC

190312

ALEX RENGIFO

APPLICATION SPEC

.5 $

SEE NOTE 1

WEIGHT

CUSTOMER DRAWING

00779

SIZE

RECEPTACLE, PROTECTIVE COVER

MIL-DTL-38999/33 TYPE

ENVELOPE

CAGE CODE

DRAWING NO

RESTRICTED TO

DTS33xxxx

SCALE

3.500

SHEET

REV
