215002.: DescriptionElectric Fuse, Time Lag Blow, 2A, 250VAC, 1500A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size159KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

215002. Overview

Electric Fuse, Time Lag Blow, 2A, 250VAC, 1500A (IR), Inline/holder,

215002. Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	6 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Rated breaking capacity	1500 A
Rated current	2 A
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; IEC; KTL; PSE; SEMKO; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

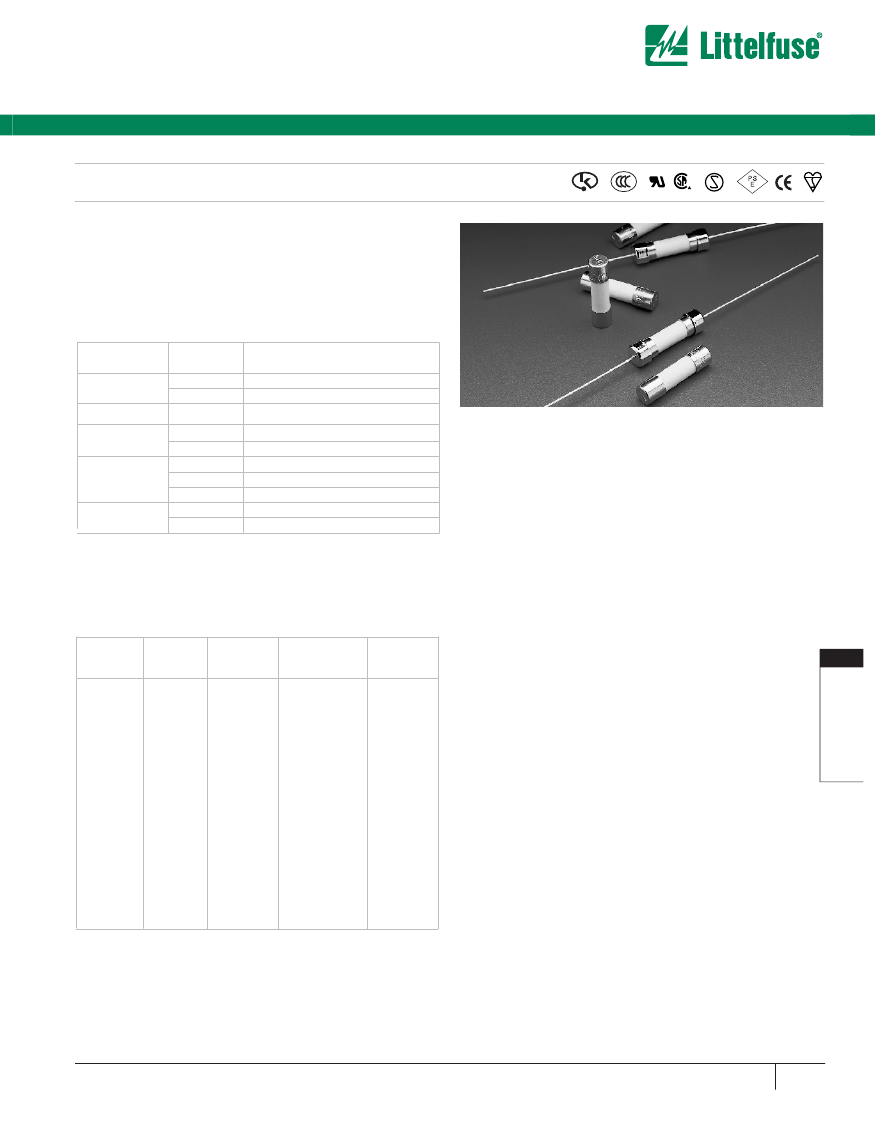

Axial Lead and Cartridge Fuses

Designed to IEC Standard

5 x 20 mm

Time Lag Fuse (Slo-Blo

®

Fuse) 215 Series

®

• Designed to International (IEC) Standards for use globally.

• Meets the IEC 60127-2, Sheet 5 specification for Time Lag Fuses.

• Available in Cartridge and Axial Lead Form.

• Available in ratings of .2 to 12 amperes.

• High breaking capacity.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

150%

210%

275%

Ampere

Rating

.1-6.3

8-12

.1-12

.1-.8

1-12

.1-.8

1– 3.15

4– 6.3

.1-.8

1-12

Opening

Time

60 minutes,

Minimum

30 minutes,

Minimum

30 minutes,

Maximum

.25 sec.,

Min.;

80 sec.

Max.

.75 sec.,

Min.;

80 sec.

Max.

.05 sec.,

Min.;

5 sec.

Max.

.095 sec.,

Min.;

5 sec.

Max.

.150 sec.,

Min.;

5 sec.

Max.

.005 sec.,

Min.;

.15 sec.,

Max.

.010 sec.,

Min.;

.15 sec.,

Max.

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

400%

1000%

INTERRUPTING RATING:

1500 amperes @ 250VAC, 0.7-0.8 power factor.

PHYSICAL SPECIFICATIONS:

Material:

Body: Ceramic

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Filler: Sand (500mA – 12A)

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

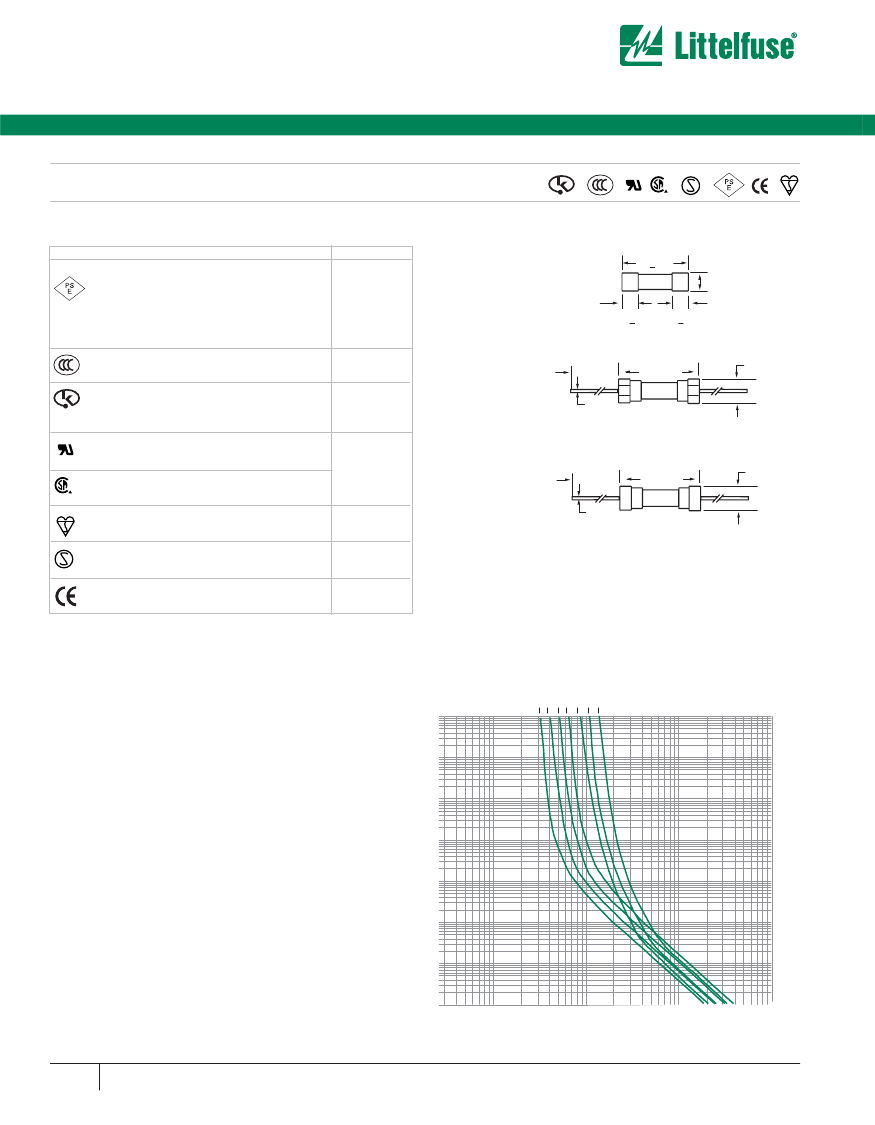

11

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

ORDERING INFORMATION:

Cartridge

Catalog

Number

215

.200

215

.250

215

.315

215

.400

215

.500

215

.630

215

.800

215

001.

215

1.25

215

01.6

215

002.

215

02.5

215

3.15

215

004.

215

005.

215

06.3

215

008.

215

010.

215

012.

Ampere

Rating

.200*

.250*

.315*

.400*

.500*

.630*

.800*

1

1.25

1.6

2

2.5

3.15

4

5

6.3

8*

10*

12*

Voltage

Rating

250

Nominal

Resistance

Cold Ohms

1.840

1.240

0.880

0.583

1.168

0.720

0.468

0.111

0.081

0.056

0.041

0.031

0.022

0.019

0.015

0.011

0.009

0.007

0.006

Nominal

Melting I

2

t

A

2

Sec.

0.341

0.545

0.974

1.324

0.424

0.633

0.974

1.022

1.996

3.798

6.768

10.370

20.644

37.684

80.675

129.022

204.001

351.037

515.500
