Part Number:
Status:
Description:
1120340026
Active
SST Remote DeviceNet Scanner, Ethernet remote connection, Din Rail mounting, IP30
with Cable Kit
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Approvals
Communication Speed
IP Rating
MAC Address
Mounting Style
Product Name
Protocol
Type
Network Interface
112034
CE, ODVA
N/A
IP20
00A091600422 (Ethernet)
DIN Rail
SST™
DeviceNet*
Remote Scanner
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Physical
Channels
Interface
Network Connection Type
Packaging Type
Processor
Temperature Range - Operating
0
N/A
N/A
Carton
N/A
0°C to +50°C
Search
112034
Electrical
Current - Maximum Input
EMC
Supply Voltage
0.33A
IEC 61000-6-2
10-30V DC
Material Info
Old Part Number
SST-EDN-1-C2
Reference - Drawing Numbers
Sales Drawing
E-112034-0026
This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
.
BradCommunications
™
SST
™
remote scanner uses the
same great features of the SST DeviceNet PC interfaces,
preserving your PC application investment while
extending DeviceNet control over Ethernet.

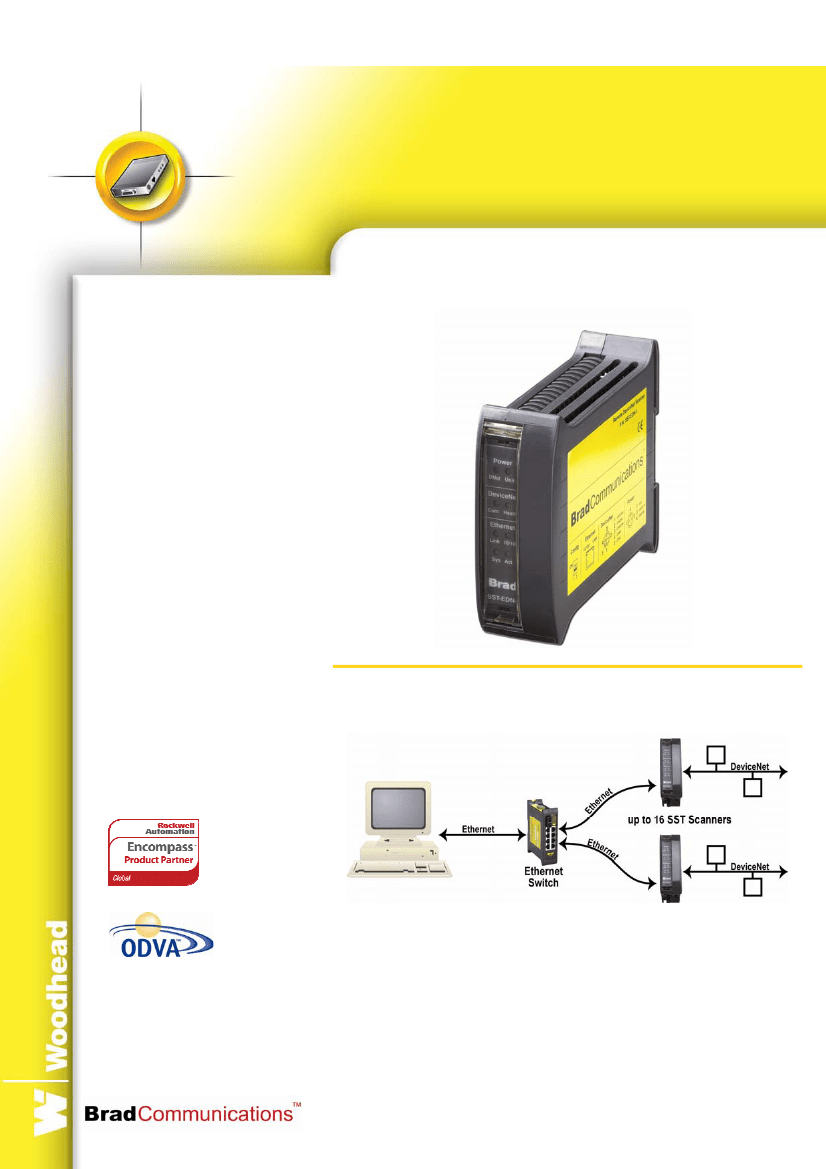

Remote DeviceNet
™
Scanner
Features
High performance DeviceNet
protocol executed via up to 16
SST
™
Remote DeviceNet
™
Scanners
User interface DLL/API is
completely backward compatible
with existing applications and local
DeviceNet interface cards
Diagnostic LEDs
UCMM (Unconnected Message
Manager) capable; Group 1, 2, and
3 dynamic explicit connections
supported
Provides simultaneous execution of
Group 2 Client (Master) and Server
(Slave) operation
Supports all DeviceNet standard
baud rates: 125, 250, and 500
Kbaud
Supports Poll, Strobe, Change of
State (COS) and Cyclic I/O
messaging
Provides Client (Master) explicit
messaging to slave devices
DeviceNet control over Ethernet
Product Description
Traditionally when running a PC control application, one PC with one interface card
installed was required for each DeviceNet
™
network. Now with the introduction of
™
the SST Remote DeviceNet Scanner, a PC for each network is no longer required.
The SST Remote DeviceNet Scanner controls I/O devices connected to a
DeviceNet network without the need of a local PC. DIN rail mountable, up to 16 SST
Remote DeviceNet Scanners can be connected to one Ethernet switch which is
then connected back to a PC residing on an Ethernet network. The PC allows users
to remotely access diagnostic information on the SST Remote DeviceNet Scanner
and the DeviceNet network.
Benefits include:
Backward compatible DLL preserves existing investment
DIN rail mount allows distribution to machine level
Frees up PC slots by placing scanner cards remotely
Manage your DeviceNet application across an Ethernet LAN
Capable of updating DeviceNet IO faster than a PCI version
Reduce infrastructure costs by using cheaper Ethernet cable and fewer
and/or less expensive PCs
Remote DeviceNet Scanner
OS and Drivers Supported
Microsoft Windows 2000 / XP
drivers
Diagnostic tools
Example C source code and
Windows 32-bit DLLs for custom
driver development
Hardware Specifications
Diagnostic LEDs
Remote Scanner Power
Operating Temperature
Storage Temperature
Humidity
RoHS Compliant
Approvals
Remote Scanner – Power, System Status
DeviceNet – Power, Communication, Health
Ethernet – Link, 10/100 MBaud, Activity
10 – 30VDC, 330mA typical
®
(male Nano-Change M8 connector)
0º C (32º F) up to +50º C (122º F)
-40º C (-40º F) up to +85 ºC (185º F)
5% to 95% non-condensing
Yes
CE
Software Tools
Diagnostic and test tools are available
that enable fast integration of industrial
communication into your application.
Network Specifications
Protocol
Cable
Connector
DeviceNet Power
Isolation
Data Rate
DeviceNet master – Group 2 Client, Group 2 only Client
DeviceNet slave – Group 2 Server
Isolated CAN physical layer on each channel
DeviceNet: shielded twisted pair, compatible with target network
Ethernet: Cat 5e shielded
®
DeviceNet: compliant male Micro-Change M12 connector
Ethernet: RJ45
11-24 VDC, 50 mA typical
500 V
125K, 250K and 500K baud for DeviceNet
10/100 Mbit for Ethernet
Ordering Information¹
SAP Material
Number
1120340021
Catalog
Number
SST-EDN-1
Product Description
™
SST Remote DeviceNet Scanner (without cables)
SST Remote DeviceNet Scanner with cable kit
(DeviceNet & Power)
•
single-ended power cable: 3-pole, M8 connector on one
end, 2 meters (6.6ft), UL/CSA cable,
1120340026
SST-EDN-1-C2
Cat. No. 403000A10M020
•
single-ended DeviceNet cable: 5-pole, M12 connector
on one end, 2 meters (6.6ft), UL/CSA cable,
Cat. No. DND30A-M020
¹
Remote DeviceNet Scanners can be ordered with cable kits (see above) or alternate cables can be ordered.
For part numbering information, refer to our on-line catalog: www.woodhead.com/ecatalog

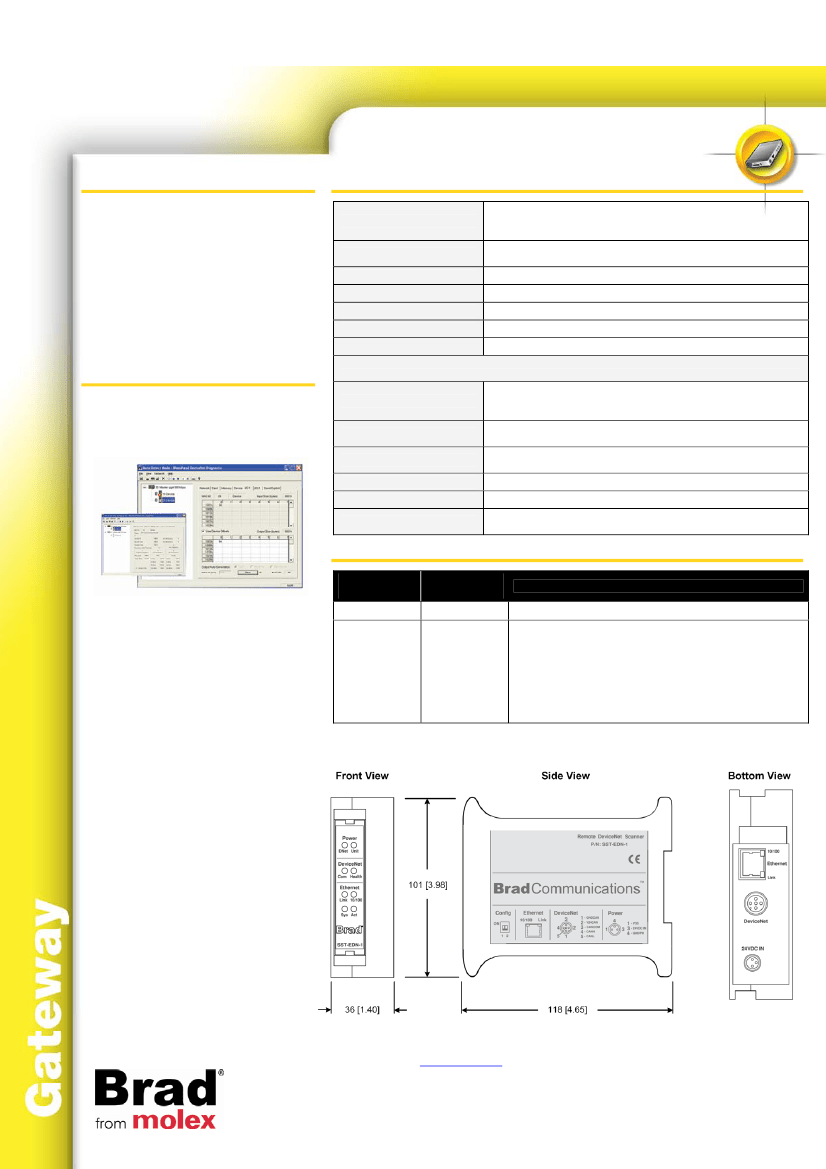

Dimensions:
mm [inches]
To contact us:
www.woodhead.com
Reference Number: DW2007201 Date Published: July 2008
North America:
US: + 1 800 225 7724 – Canada: +1 519 725 5136
Europe:
France: +33 2 32 96 04 20 – Germany: +49 7252 94 96 0– Italy: +39 010 59 30 77 –
United Kingdom: +44 1495 356300
Asia:
Shanghai, China: +86 21-5835-9885 - Tianjin, China: +86 22-23321717
Singapore: +65 6268-6868 – Yamato, Japan: +81 46-265-2428 – Nagoya, Japan: +81 52-221-5950
Brad, Micro-Change and Nano-Change are registered trademarks and BradCommunications and SST are trademarks
of Molex Incorporated. © 2008 Molex
