Part Number:
Status:
Overview:
Description:
0746810001
Active
vhdm__hsd
2.00mm (.079") Pitch 8-Row VHDM-HSD™ Board-to-Board Daughtercard Receptacle,
Right Angle, Signal Module, 60 Circuits
Documents:

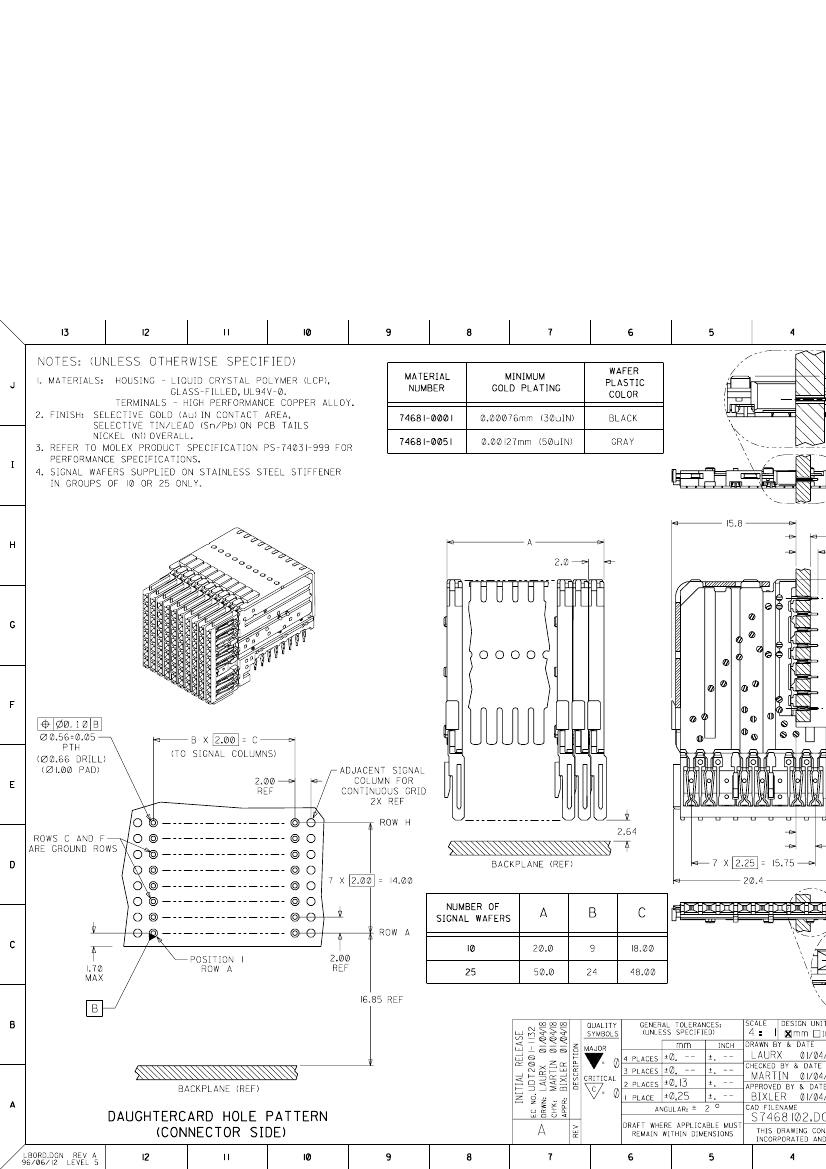

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Application Tooling Documents
Comments
Backplane Connectors
74681
Daughtercard
<a href="http://www.molex.com/pdm_docs/ats/
TM-622010999.pdf">Tooling Manual</a>
Wafers aggregated into connectors receive a custom
order number 74680-XXXX for 8 row daughtercard
assemblies.
PCB Receptacle
vhdm__hsd
VHDM-HSD™
N/A
Component Type
Overview
Product Name
Style
EU RoHS
RoHS Co
Exemptio
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
60
60
Black
200
No
No
None
High Performance Alloy (HPA)
Gold
Tin-Lead
High Temperature Thermoplastic
10
Open Pin Field
8
Right Angle
None
0.070 In
1.80 mm
Tube
0.079 In
2.00 mm
30.4
0.76
30.4
0.76
Yes
Yes
Yes
-55°C to +105°C
Through Hole - Compliant Pin
Email pro
For a mu
Complian
Please vi
non-prod
Search
74681S
Mates
VHDM-
74650
Use W
Backpl
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Voltage - Maximum
1A
5.0 Gbps
100
120V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Sales Drawing
VHDM-HSD is a trademark of Amphenol Corporation
SD-74681-002
