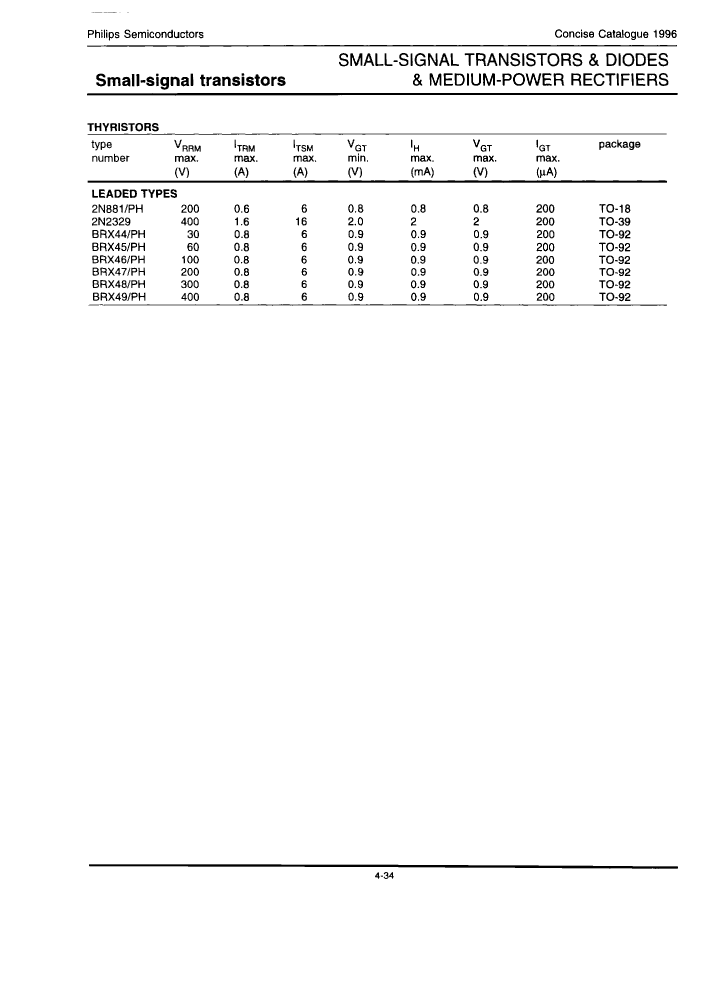

Preview

2N881/PH: DescriptionSilicon Controlled Rectifier, SCR, TO-18; CategoryAnalog mixed-signal IC Trigger device; File Size13KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

2N881/PH Overview

Silicon Controlled Rectifier, SCR, TO-18

2N881/PH Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Repeated peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

2N881/PH Related Products

	2N881/PH	BRX44/PH	BRX47/PH	BRX48/PH	BRX45/PH	BRX46/PH	BRX49/PH
Description	Silicon Controlled Rectifier, SCR, TO-18	Silicon Controlled Rectifier, SCR, TO-92	Silicon Controlled Rectifier, SCR, TO-92	Silicon Controlled Rectifier, SCR, TO-92	Silicon Controlled Rectifier, SCR, TO-92	Silicon Controlled Rectifier, SCR, TO-92	Silicon Controlled Rectifier, SCR, TO-92
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA
JEDEC-95 code	TO-18	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-MBCY-W3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Repeated peak reverse voltage	200 V	30 V	200 V	300 V	60 V	100 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	-	-	-
