39-03-3155

Description
1.57mm (.062") Diameter Standard .062" Pin and Socket Plug Housing, 15 Circuits, Without Mounting Ears
File Size85KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

39-03-3155 Overview

1.57mm (.062") Diameter Standard .062" Pin and Socket Plug Housing, 15 Circuits, Without Mounting Ears

This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039033155
Active
standard_062
1.57mm (.062") Diameter Standard .062" Pin and Socket Plug Housing, 15 Circuits,
Without Mounting Ears
Documents:
3D Model
Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-1625-010 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
1625
Polarized to Mating Part
standard_062
Standard .062"
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Physical
Breakaway
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
No
15
3x5
Natural
94V-2
Plug
No
None
Yes
Nylon
3
Bag
No
0.145 In
3.68 mm
0.145 In
3.96 mm
Yes
No
-40°C to +105°C
Email pro
For a mu
Complian
Please vi
non-prod
Search
1625Se
Mates
1625 R
Use W
Female
, 4529
Crimp T
Male P
Tail Te
Electrical
Current - Maximum per Contact
5A
Material Info
Old Part Number
1625-15P1
Reference - Drawing Numbers
Packaging Specification
Product Specification

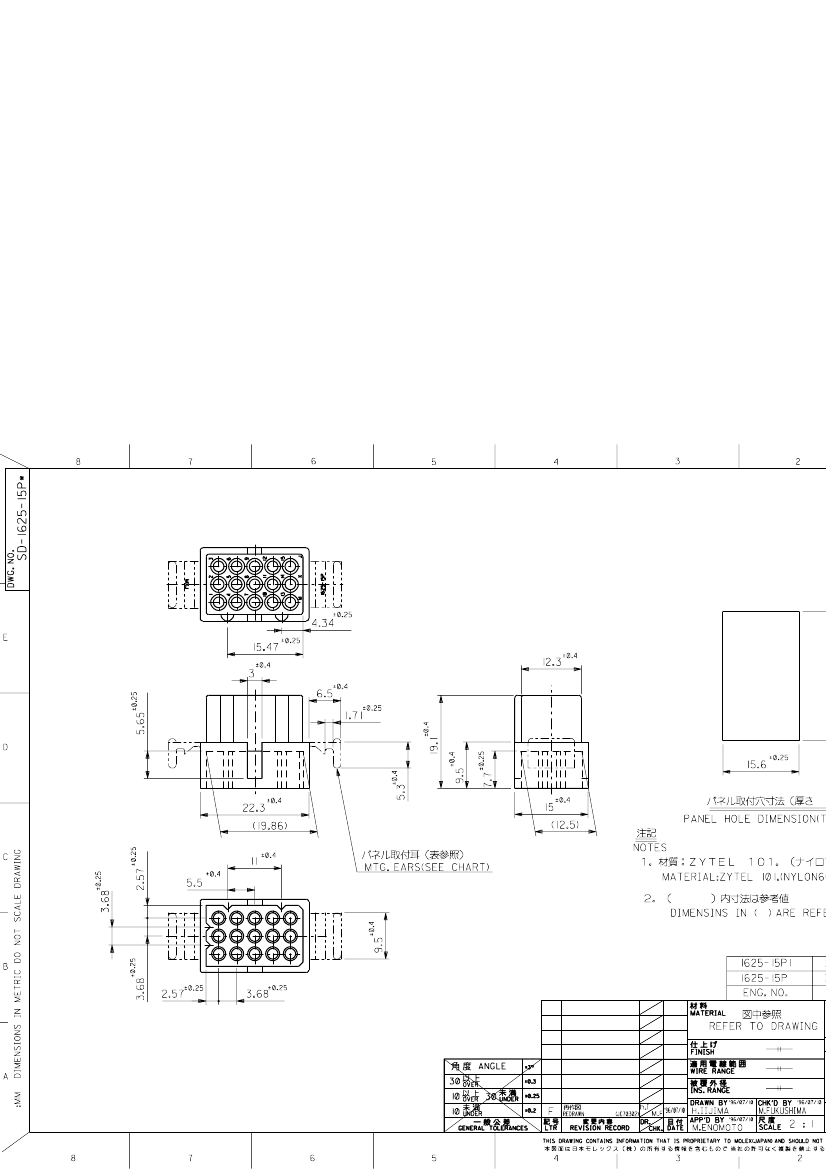

Sales Drawing
SPK-1625-001
PS-1625-010, RPS-1625-001
SD-1625-15P*
