Transient Voltage Suppressors
P6SMB
Transient Voltage Suppressors (TVS) Data Sheet
Features
■
■
■
■
■
■
■
■
■
■
■
■
■
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
600W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 1μA above 12V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Mechanical Data
■
■
■
■
■
Case: JEDEC DO-214AA. Molded plastic over glass passivated junction
Terminal: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.10g
Applications
■
I/O interface
■
AC/DC power supply
■
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
A
=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 600
See Table
5.0
100
-65 to +150
20
100
Units
Watts
Amps
Watts
Amps
℃
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. Mounted on 5.0mm×5.0mm (0.03mm thick) copper pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
www.yageo.com
Apr. 29, 2019 V.0
Circuit Protection
Product Specification
3
8
Transient Voltage Suppressors

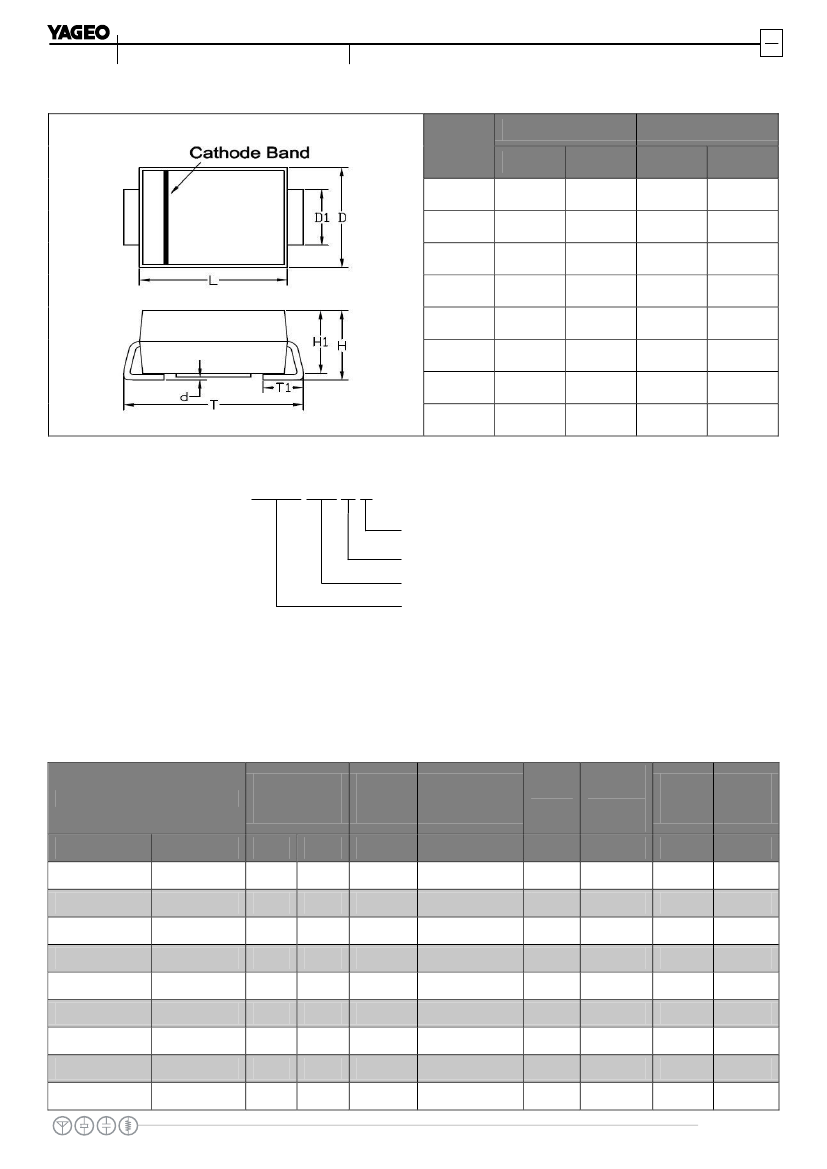

Dimensions (SMB/DO-214AA)
P6SMB
Millimeters
Symbol
Min.
L
D
D1
T
T1
d
H
H1
4.06
3.30
1.95
5.21
0.76
-
2.15
2.13
Max.
4.57
3.94
2.20
5.59
1.52
0.203
2.65
2.47
Inches
Min.
0.160
0.130
0.077
0.205
0.030
-
0.085
0.084
Max.
0.180
0.155
0.086
0.220
0.060
0.008
0.104
0.097
Part Number Code
P6SMB XXX C A
5% V
BR
Voltage Tolerance
Bidirectional
V
BR
Voltage
Series Code
Ordering Code for different package
7 inch reel package: Add suffix “/TR7” at the end of the part number, such as P6SMBJ150A/TR7
13 inch reel package: Add suffix “/TR13” at the end of the part number, such as P6SMBJ250CA/TR13
Electrical Characteristics (T
A
=25℃)
Device
Marking
Code
UNI
6V8A
7V5A
8V2A
9V1A
10A
11A
12A
13A
15A
BI
6V8C
7V5C
8V2C
9V1C
10C
11C
12C
13C
15C
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
Breakdown
Voltage
@I
T
V
BR
(V)
6.45~7.14
7.13~7.88
7.79~8.61
8.65~9.55
9.50~10.50
10.50~11.60
11.40~12.60
12.40~13.70
14.30~15.80
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
Peak
Pulse
Current
I
PP
(A)
58.1
54.0
50.4
45.5
42.1
39.1
36.5
33.5
28.8
Reverse
Leakage
@V
RWM
I
R
(μA)
1000
500
200
50
10
5
5
1
1
www.yageo.com
Apr. 29, 2019 V.0
Part Number
Unidirectional
P6SMB6.8A
P6SMB7.5A
P6SMB8.2A
P6SMB9.1A
P6SMB10A
P6SMB11A
P6SMB12A
P6SMB13A
P6SMB15A
Bidirectional
P6SMB6.8CA
P6SMB7.5CA
P6SMB8.2CA
P6SMB9.1CA
P6SMB10CA
P6SMB11CA
P6SMB12CA
P6SMB13CA
P6SMB15CA
