BZM55B6V8-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZM55B6V8-T

BZM55B6V8-T: DescriptionZener Diode,; CategoryDiscrete semiconductor diode; File Size112KB，6 Pages; ManufacturerRectron; Environmental Compliance

Download Datasheet Parametric View All

BZM55B6V8-T Overview

Zener Diode,

BZM55B6V8-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rectron
package instruction	O-LELF-R2
Reach Compliance Code	compliant
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LELF-R2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Nominal reference voltage	6.8 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	2%
Working test current	5 mA

Preview

Download Datasheet

View All

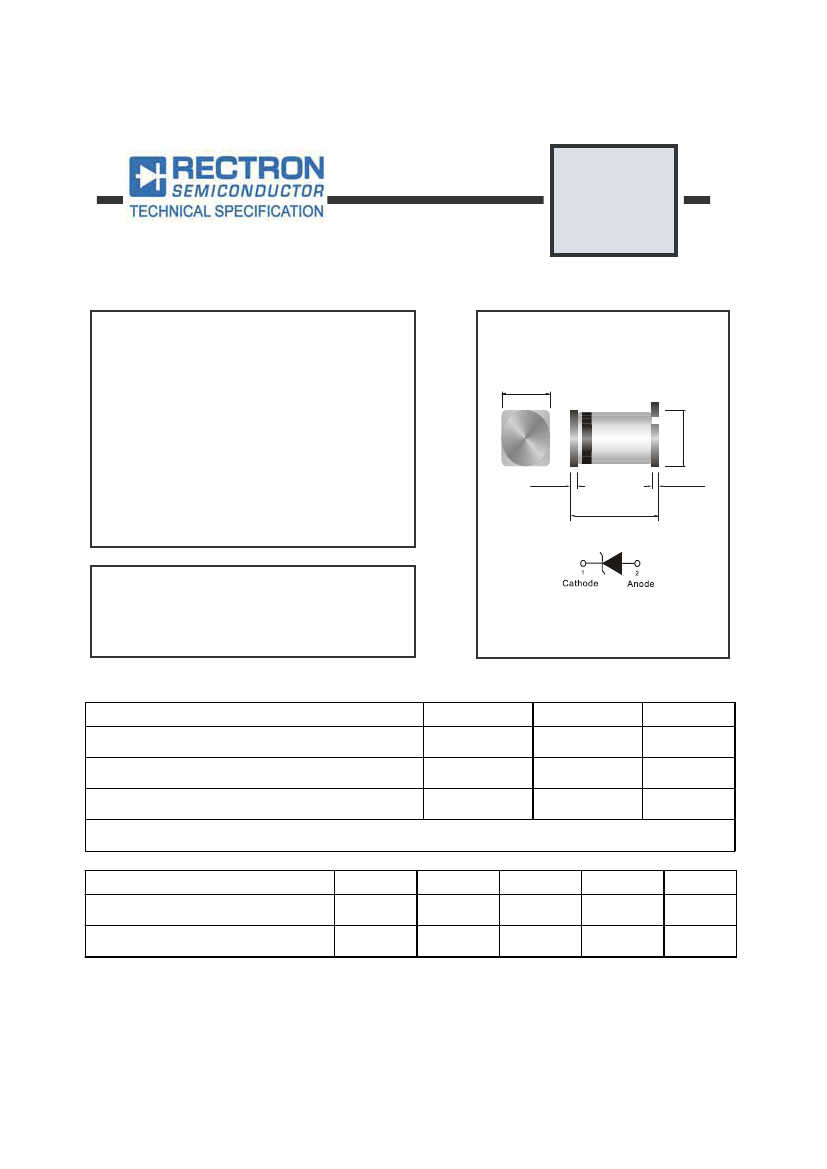

BZM55B

SERIES

SURFACE MOUNT ZENER DIODES

VOLTAGE RANGE 2.4 to 75 Volts POWER 500 mWatt

FEATURES

* Planar Die construction

* 500mW Power Dissipation

* Ideally Suited for Automated Assembly Processes

0.043(1.1)

MICRO-MELF

MECHANICAL DATA

* Case: Molded Glass MICRO-MELF

* Terminals: Solderable per MIL-STD-750, Method 2026

0.008(0.2)

0.079(2.0)

0.071(1.8)

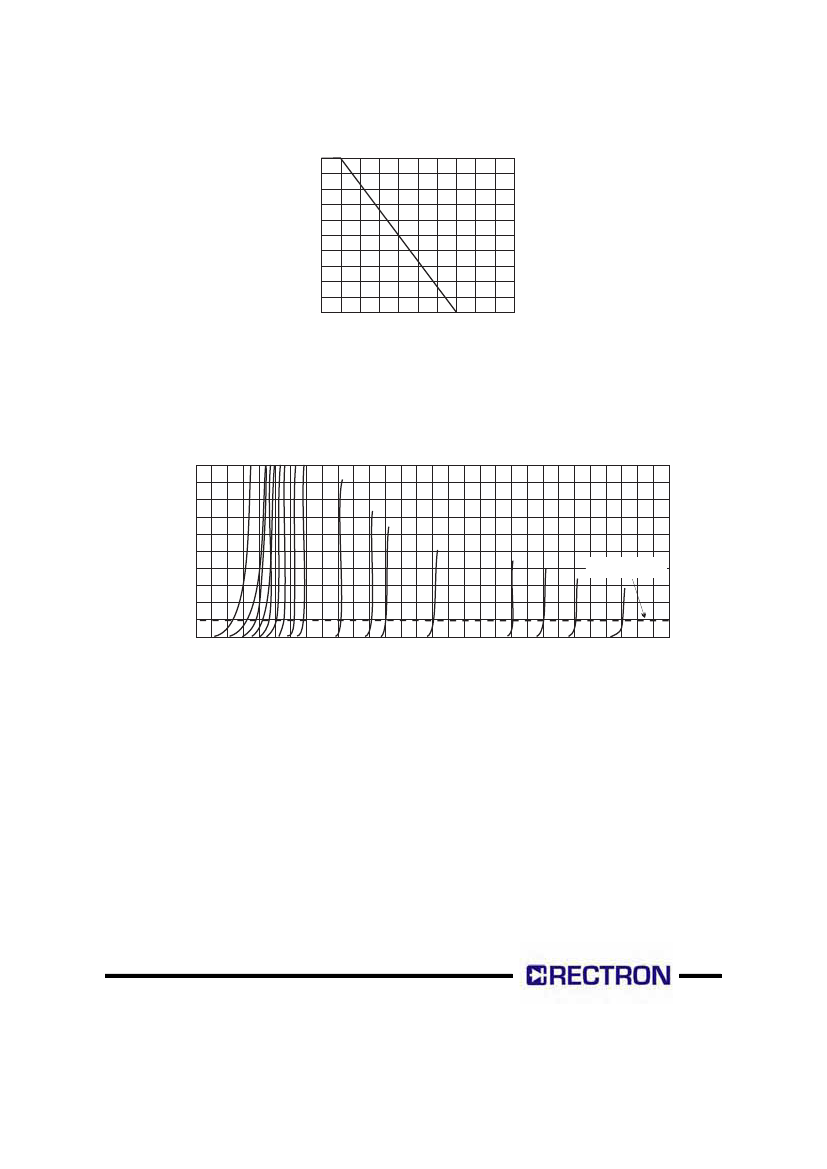

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Resistive or inductive load.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Parameter

Power Dissipation at T

= 25

Junction Temperature

Storage Temperature Range

Symbol

Value

500

-65 to +175

Units

TOT

Valid provided that leads at a distance of 8mm from case are kept at ambient temperature.

Parameter

Thermal Resistance Junction to Ambient Air

Forward Voltage at I

= 200mA

Symbol

Min.

Typ.

Max.

0.3

1.5

0.0 48(1.2)D I A.

0 .0 4 0 (1 .0 )

Units

C/mW

Valid provided that leads at a distance of 8mm from case are kept at ambient temperature.

2018-12/62

REV: O
