AZ9321-1CE-48DEF datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ9321-1CE-48DEF

AZ9321-1CE-48DEF: DescriptionPower/Signal Relay, 1 Form C, SPDT, Latched, 80.4VDC (Coil), 16A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size81KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ9321-1CE-48DEF Overview

Power/Signal Relay, 1 Form C, SPDT, Latched, 80.4VDC (Coil), 16A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output

AZ9321-1CE-48DEF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
body width	16 mm
body height	20.3 mm
Body length or diameter	21 mm
Coil operating voltage (DC)	36 V
Coil resistance	6400 Ω
Maximum coil voltage (DC)	80.4 V
Nominal coil voltage	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	4709VA@277VAC
Contact (AC) maximum rated R load	20A@277VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated power R load	480W@30VDC
Contact (DC) maximum rated R load	16A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	3000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	50000 Cycle(s)
End contact material	Silver Tin Oxide
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e3
Number of terminals	5
operating hours	10 ms
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	21mm x 16mm x 20.3mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	EPOXY
Terminal surface	Tin
Terminal length	0.004 inch
Termination type	SOLDER
weight	14 g

Preview

Download Datasheet

View All

AZ9321

20 AMP

MINIATURE

PC BOARD RELAY

FEATURES

•

High performance

6 kV lightning surge withstand

Flux tight and sealed versions available

Class F insulation system standard

UL, CUR file E44211, TÜV 50100775

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

SPST - N.O. (1 Form A)

SPDT (1 Form C)

Form A and C

Max. switched power: 480 W or 4709 VA

Max. switched current: 16 A DC, 20 A AC

Max. switched voltage: 30 VDC or 277 VAC

Release Time

1x10

5 x 10

at 20 A 120 VAC Res.

10 ms max.

5 ms max.

(with no coil suppression)

CONTACTS

Arrangement

Ratings

Dielectric Strength

3000 Vrms contact to coil

(at sea level for 1 min.)

1000 Vrms across contacts

Insulation Resistance

Dropout

100 megohms min. at 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C(-40°F) to 95°C(203°F)

-40°C(-40°F) to 155°C(311°F)

0.062" DA at 10–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (500°F)

5 seconds

80°C (176°F)

30 seconds

14 g

Rated Load

UL/CUR

1 Form A

20 A at 125

17 A at 277

15 A at 125

16 A at 250

Ambient Temperature

VAC,

Res.,

100k

50k

cycles [1][2]

cycles [2]

cycles [1][2]

cycles [1]

Operating

Storage

Vibration

Shock

Enclosure

100k cycles N.O. [1][2]

50k cycles N.C.[2]

17k cycles N.C.[1]

50k cycles N.C.[1]

100k cycles N.O. [2]

50k cycles N.C. [2]

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

1HP at 250 VAC [1][2]

1HP at 125 VAC [2]

TV-8 at 125 VAC [1]

1 Form C

20 A at 125

17 A at 125

17 A at 277

15 A at 277

VAC

Res.

1 HP at 250 VAC N.O. [1][2]

1 HP at 125 VAC N.O. [2]

1/2 HP at 125 VAC N.C. [2]

1/2 HP at 277 VAC N.C. [2]

TV-8 at 125 VAC N.O./ N.C. [1]

TÜV

1 Form A

20 A at 125 VAC Res., 80k cycles [1][2]

16 A at 250 VAC Res., 80k cycles [1][2]

1 Form C

16 A at 250 VAC N.O. Res., 50k cycles[1][2]

10 A at 250 VAC N.C. Res., 50k cycles[1][2]

Material

Silver tin oxide [1] or silver nickel [2] (gold plating

available)

COIL

Power

At Pickup Voltage

Max Continuous

Dissipation

Temperature Rise

(at nominal coil voltage)

203 mW

1.4 W at 20°C (68°F)

20°C (36°F)

Max. 155°C (311°F)

Temperature

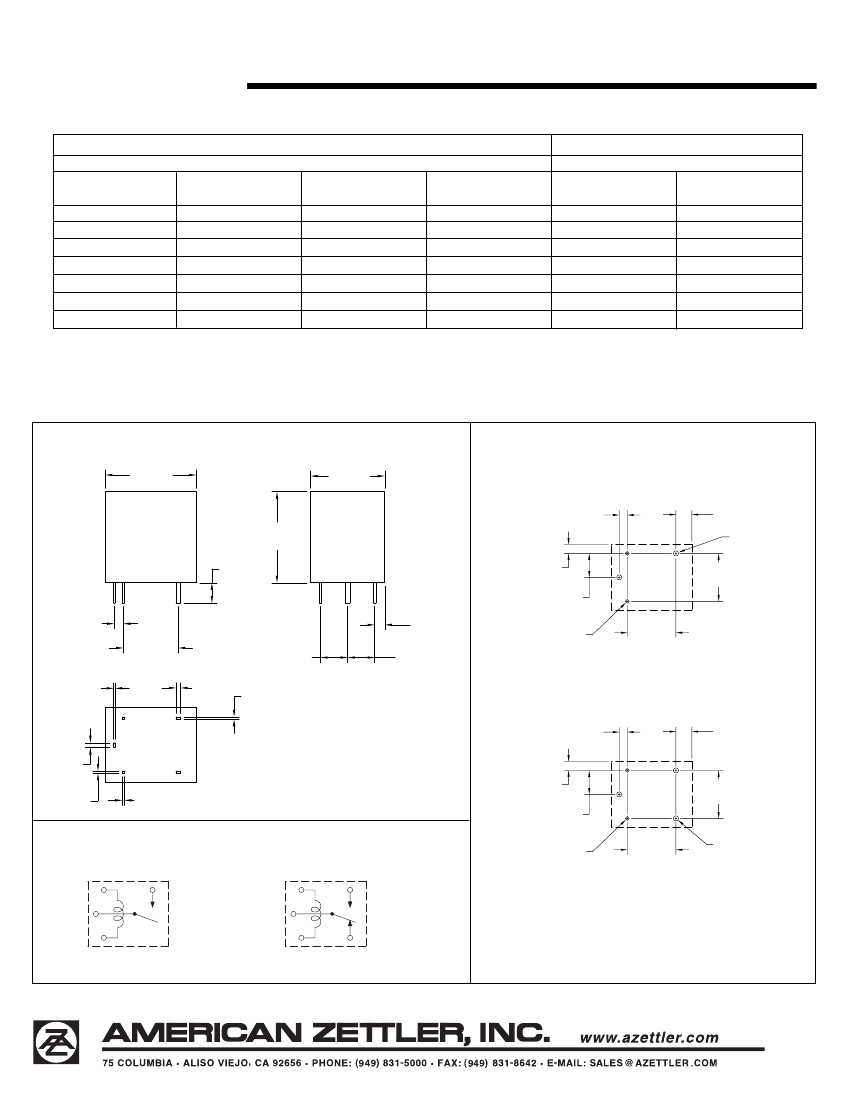

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Unsealed relays should not be dip cleaned.

4. Specifications subject to change without notice.

4/16/07W
