EPI191321KSP45L-LF datasheet, PDF

Datasheet> All Categories > Passive components> inductor> EPI191321KSP45L-LF

EPI191321KSP45L-LF: DescriptionGeneral Purpose Inductor, 300uH, 20%, 2 Element, SMD, LEAD FREE; CategoryPassive components inductor; File Size47KB，2 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EPI191321KSP45L-LF Overview

General Purpose Inductor, 300uH, 20%, 2 Element, SMD, LEAD FREE

EPI191321KSP45L-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PCA Electronics Inc.
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	1.525 Ω
Nominal inductance(L)	300 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	2
Number of terminals	4
Maximum rated current	0.32 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	PARALLEL CONNECTED
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL IN-LINE
Terminal shape	ONE SURFACE
Tolerance	20%

Preview

Download Datasheet

View All

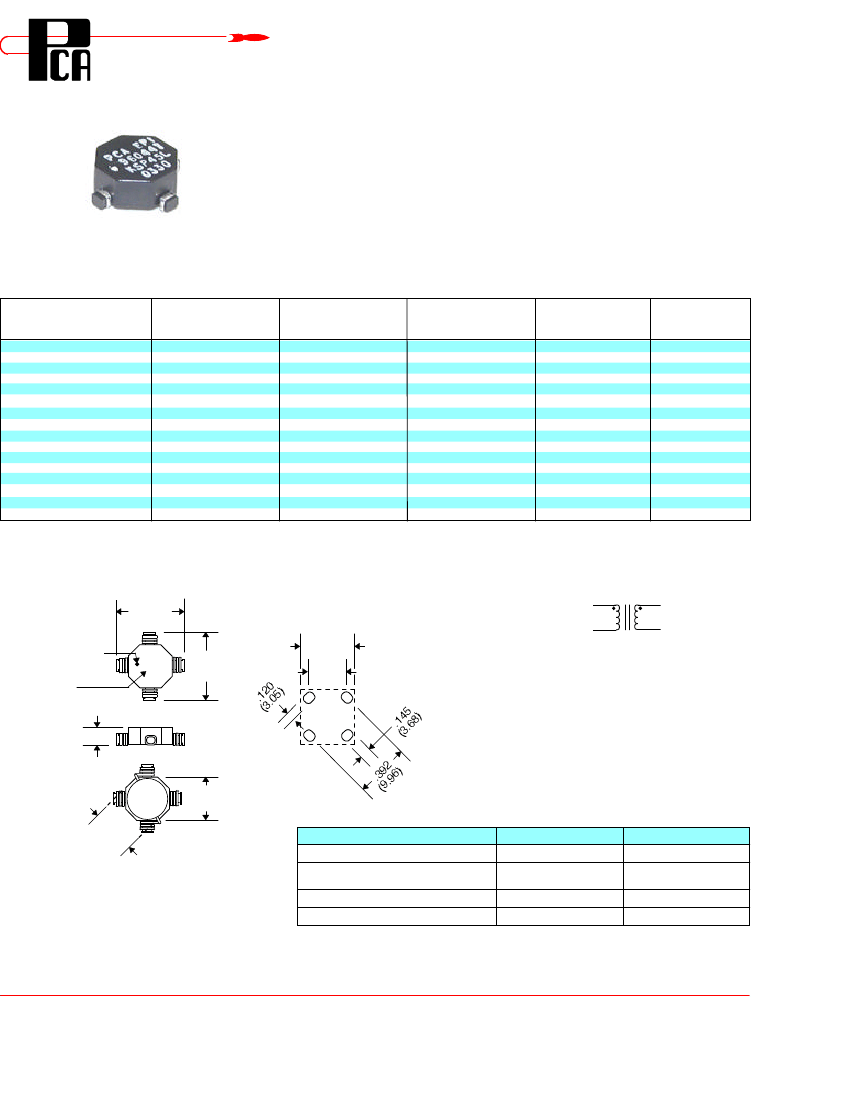

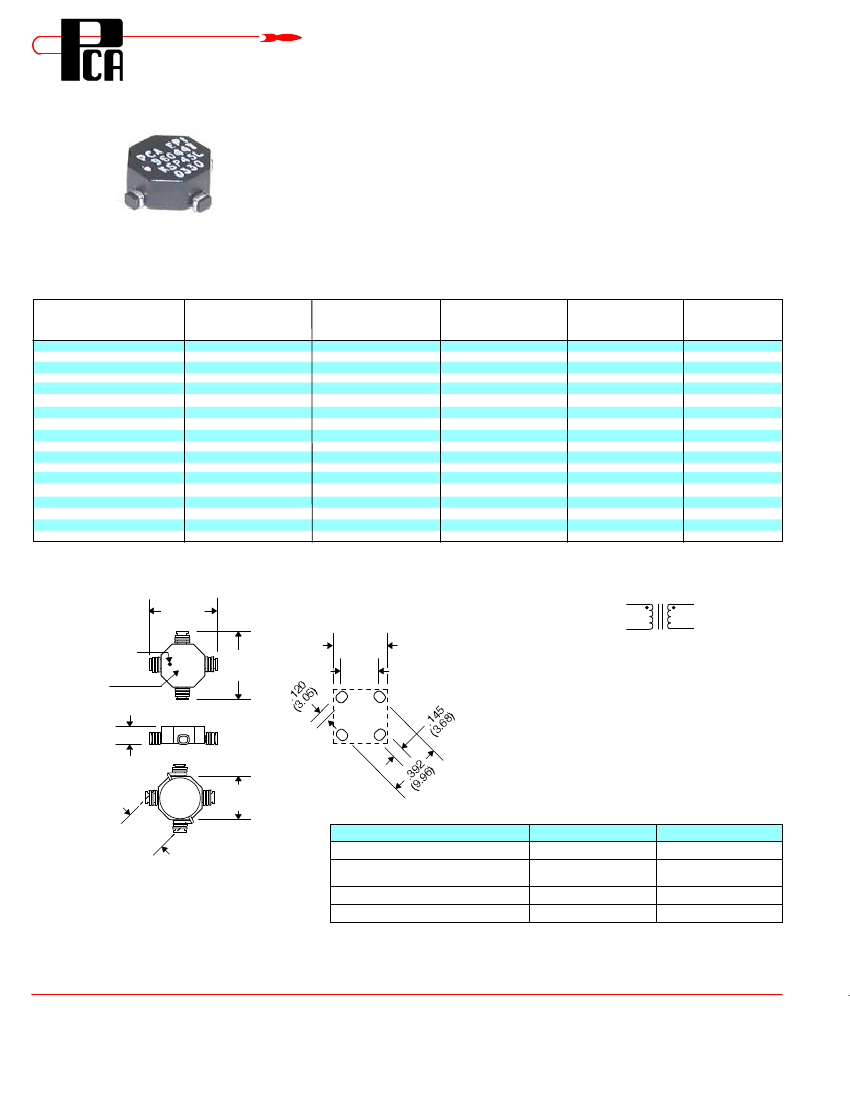

Surface Mount Power Inductor

ELECTRONICS INC.

EPI KSP45L & EPI KSP45L-LF Series

• Low loss material ensures operation in high frequency

switching converters, such as Buck, Boost or as output

averaging filter inductor

• Also suitable for use in high quality filter applications and as a

Coupled Inductor

• Low cost Robust construction to withstand most SMT processes

• Add “-LF” after part number for Lead-Free

Primary Specification

Part Number

Connection

EPI0L3552KSP45L(-LF)

EPI0L4512KSP45L(-LF)

EPI0L7452KSP45L(-LF)

EPI1L3342KSP45L(-LF)

EPI3L3202KSP45L(-LF)

EPI5L3182KSP45L(-LF)

EPI6L2172KSP45L(-LF)

EPI9L6142KSP45L(-LF)

EPI140102KSP45L(-LF)

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Inductance

(µH ± 20%)

@ 0 Adc

1.6

.40

2.4

.60

4.4

1.1

8.0

2.0

19.2

4.8

32.4

8.1

38.4

9.6

15.0

20.5

Inductance

(µH Min.)

@ Idc

1.2

0.3

1.6

0.4

2.8

0.7

5.2

1.3

13.2

3.3

21.2

5.3

24.8

6.2

38.4

9.6

56.0

14.0

DCR

(Ω Max.)

.024

.006

.028

.007

.032

.008

.056

.014

.164

.041

.208

.052

.228

.057

.348

.087

.636

.159

I dc

(Amps)

2.75

5.5

2.55

5.1

2.25

4.5

1.7

3.4

1.0

2.0

0.90

1.8

0.85

1.7

0.70

1.4

0.50

1.0

Package KSP45L(-LF)

.460 Max.

(11.68)

Top

View

Pin 1

I.D.

Marking :

PCA

Inductance Value

D.C.

Schematic

Recommended

Layout

.422

(10.72)

.460 Max.

(11.68)

.277

(7.04)

.165 Max.

(4.19)

Bottom

View

.350

(8.89)

.350

(8.89)

Notes :

1. Lead Finish

2. Peak Solder Rating

EPIXXXXXXKSP45L

SnPb

225°C

0.7 grams

(Tube)

TBD pcs / tube

EPIXXXXXXKSP45L-LF

Hot Tin Dip (Sn)

250°C

0.7 grams

TBD pcs / tube

Notes :

1. Temperature Rise : 40°C Max. @ Idc

2. Inductance Change at Idc : 40% Max.

(for wave solder process Only)

4. Weight

5. Packaging Information

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSIXXXXXXKSP45L & -LFa

Rev. 4

7/10/06 FT

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com

EPI191321KSP45L-LF Related Products

	EPI191321KSP45L-LF	EPI131361KSP45L-LF	EPI430661KSP45L-LF	EPI220801KSP45L-LF	EPI630541KSP45L-LF	EPI330701KSP45L-LF	EPI170961KSP45L-LF
Description	General Purpose Inductor, 300uH, 20%, 2 Element, SMD, LEAD FREE	General Purpose Inductor, 198.4uH, 20%, 2 Element, SMD, LEAD FREE	General Purpose Inductor, 68.4uH, 20%, 2 Element, SMD, LEAD FREE	General Purpose Inductor, 32.3uH, 20%, 2 Element, SMD, LEAD FREE	General Purpose Inductor, 99uH, 20%, 2 Element, SMD, LEAD FREE	General Purpose Inductor, 50.5uH, 20%, 2 Element, SMD, LEAD FREE	General Purpose Inductor, 25.4uH, 20%, 2 Element, SMD, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	1.525 Ω	1.028 Ω	0.373 Ω	0.251 Ω	0.557 Ω	0.316 Ω	0.177 Ω
Nominal inductance(L)	300 µH	198.4 µH	68.4 µH	32.3 µH	99 µH	50.5 µH	25.4 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Number of functions	2	2	2	2	2	2	2
Number of terminals	4	4	4	4	4	4	4
Maximum rated current	0.32 A	0.36 A	0.66 A	0.8 A	0.54 A	0.7 A	0.96 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
special characteristics	PARALLEL CONNECTED	PARALLEL CONNECTED	PARALLEL CONNECTED	PARALLEL CONNECTED	PARALLEL CONNECTED	PARALLEL CONNECTED	PARALLEL CONNECTED
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	TIN	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Tolerance	20%	20%	20%	20%	20%	20%	20%
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to
Maker	PCA Electronics Inc.	PCA Electronics Inc.	-	PCA Electronics Inc.	PCA Electronics Inc.	PCA Electronics Inc.	PCA Electronics Inc.
package instruction	LEAD FREE	LEAD FREE	-	-	LEAD FREE	LEAD FREE	LEAD FREE
