AZ940-1A-5DE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ940-1A-5DE

AZ940-1A-5DE: DescriptionPower/Signal Relay, 1 Form A, SPST, Latched, 7.7VDC (Coil), 10A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size95KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ940-1A-5DE Overview

Power/Signal Relay, 1 Form A, SPST, Latched, 7.7VDC (Coil), 10A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output

AZ940-1A-5DE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
body width	10.2 mm
body height	15.7 mm
Body length or diameter	20.5 mm
Coil operating voltage (DC)	3.8 V
Coil resistance	55 Ω
Maximum coil voltage (DC)	7.7 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2770VA@400VAC
Contact (AC) maximum rated R load	10A@400VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	150W@150VDC
Contact (DC) maximum rated R load	10A@150VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	400 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
JESD-609 code	e3
Number of terminals	5
operating hours	8 ms
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	20.5mm x 10.2mm x 15.7mm
Guideline	UL; VDE
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	EPOXY
Terminal surface	Tin
Terminal length	0.004 inch
Termination type	SOLDER
weight	7 g

Preview

Download Datasheet

View All

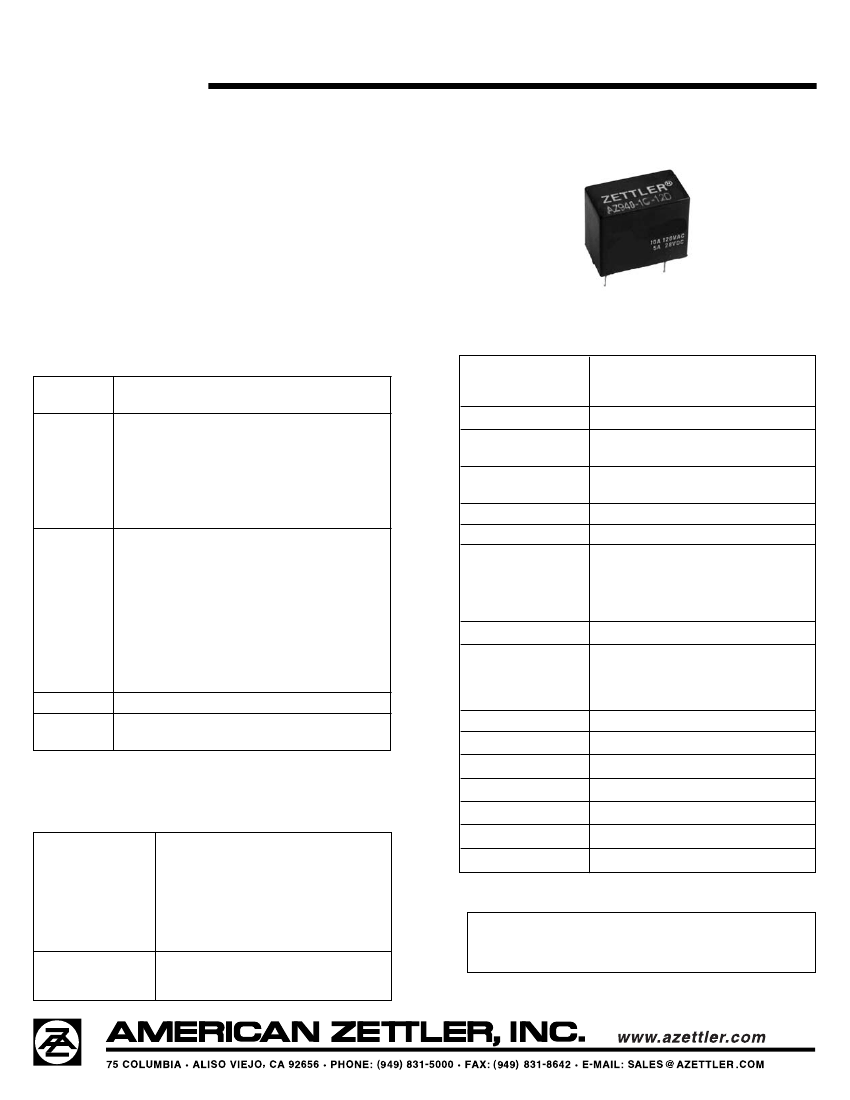

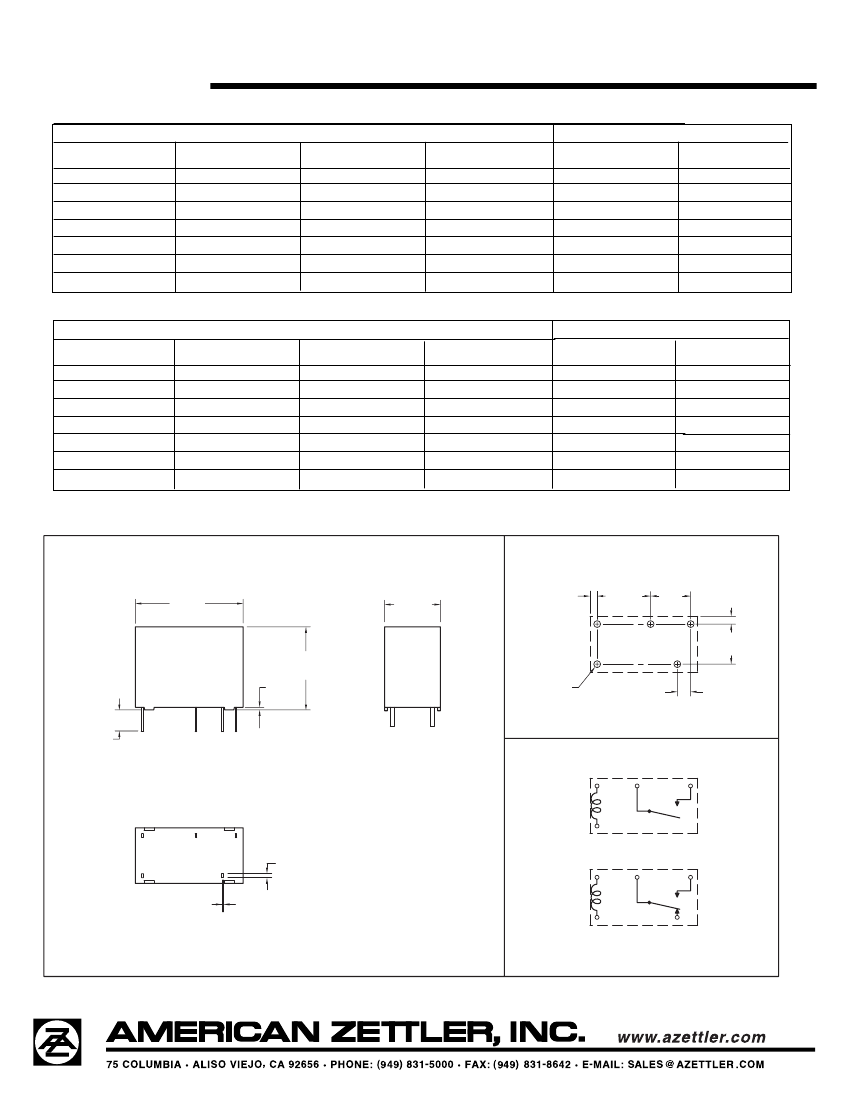

AZ940

10 AMP MINIATURE

POWER RELAY

FEATURES

•

10 Amp switching capability

SPST-N.O. and SPDT configurations

4 kV dielectric strength

Epoxy sealed version available

Class B insulated standard, Class F available

UL, CUR file E44211, VDE file 134326

GENERAL DATA

CONTACTS

Arrangement

Ratings

SPST N.O. (1 Form A)

SPDT (1 Form C)

Resistive load:

Max. switched power: 150 W or 1250 VA N.O.

90 W or 750 VA N.C.

Max. switched current:10 A N.O., 3 A N.C..

Max. switched voltage: 150 VDC* or 400 VAC

*Note: If switching voltage is greater than 30 VDC, special

precautions must be taken. Please contact the factory.

Life Expectancy

Mechanical

Electrical

Operate Time (max.)

Release Time (max.)

Minimum operations

1 x 10

at 10 A 120 VAC Res.

8 ms at nominal coil voltage

5 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

1000 Vrms contact to contact

(at sea level for 1 min.)

4000 Vrms contact to coil

Insulation Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Operating

Mechanical

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

10 g for 11 ms 1/2 sine pulse

(no contact opening >100 usec)

100 g for 11 ms 1/2 sine pulse

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

7 grams

1 x 10

ohms minimum at 500 VDC

Greater than 5% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 90°C (194°F) Class B

-40°C (-40°F) to 110°C (230°F) Class F

-40°C (-40°F) to 130°C (266°F) Class B

-40°C (-40°F) to 155°C (311°F) Class F

0.062" DA at 10–55 Hz

UL, CUR

10 A at 125 VAC General Use, 100k cycles

(N.O.)

10 A at 277 VAC COS =.4, 10k cycles

5 A at 250 VAC General Use, 100k cycles

5 A at 30 VDC

HP at 125 VAC, 100k cycles

HP at 250 VAC, 100k cycles

UL, CUR

3 A at 250 VAC General Use, 100k cycles

(N.C.)

3 A at 30 VDC Resistive, 100k cycles

VDE

Form A N.O.: 5 A 250 VAC

Form C N.O.: 5 A 250 VAC

Form C N.C.: 3 A 250 VAC

Silver cadmium oxide or silver nickel

< 0.1 Ohm

(24 V, 1 A voltage drop method)

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

253 mW (Standard Coil)

113 mW (Sensitive Coil)

1.25 W at 20°C (68°F)

40°C (72°F) (Standard Coil)

20°C (36°F) (Sensitive Coil)

Max. 130°C (266°F) Class B

Max. 155°C (311°F) Class F

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

9/11/08W
